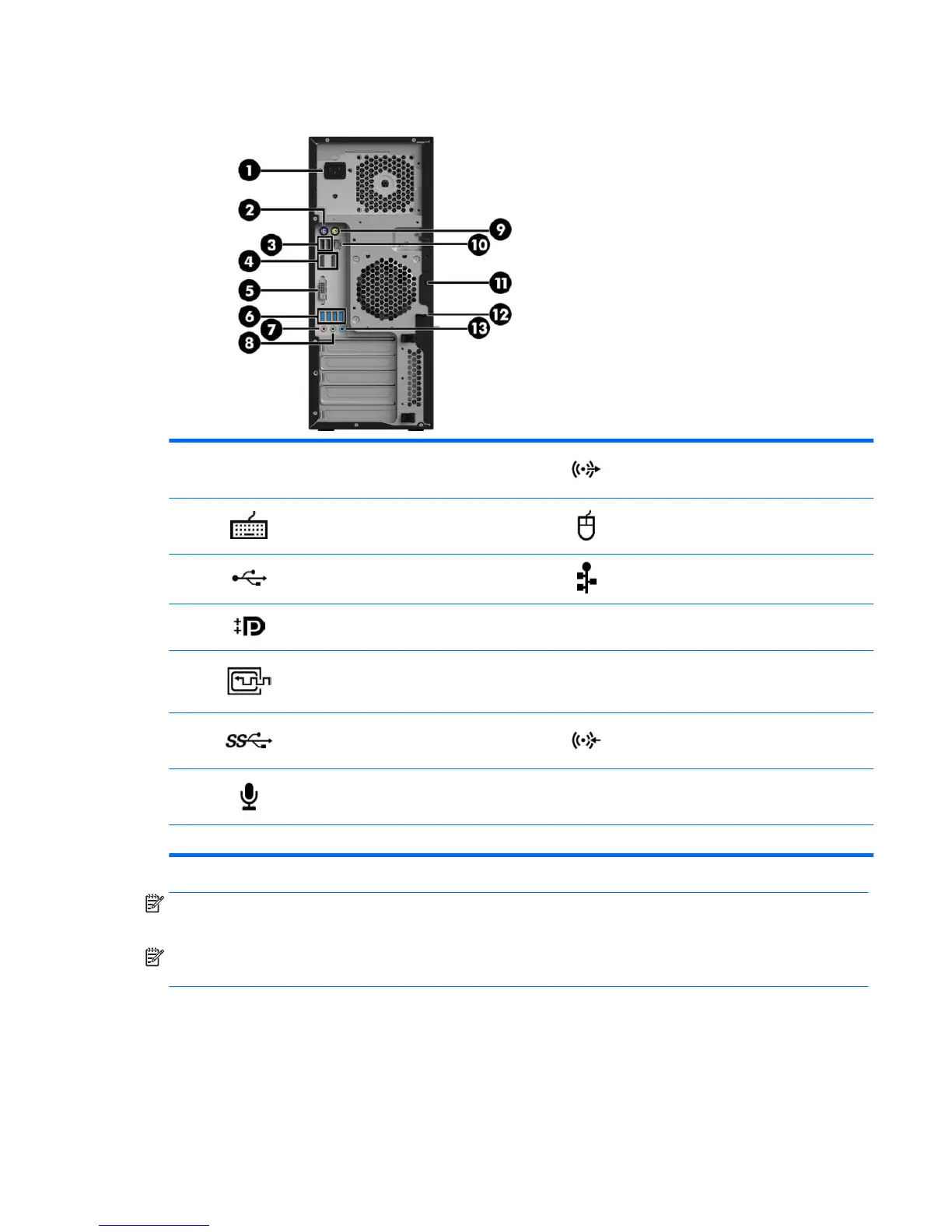

HP Z240 Tower Workstation rear panel
1 Power cord connector
8
Audio line-out connector (green)
2 PS/2 keyboard connector (purple) 9 PS/2 mouse connector (green)
3 USB 2.0 ports (2) (black) 10 RJ-45 network connector
4 Display Port (DP) connectors (2) 11 Cable lock slot
5 DVI-D connector 12 Padlock loop
6 USB 3.0 ports (4) (blue) 13 Audio line-in connector (blue)
7 Microphone connector (pink)
NOTE: The labels for the rear panel connectors use industry-standard icons and colors.
NOTE:
The DP and DVI-D ports are not supported when the system is congured with Intel Xeon E3-12x0 v5 processors. Also, if a discrete graphics card is installed
the
se ports are disabled by default.
NOTE:
Simultaneous usage of integrated Intel HD graphics and discrete graphics cards (in order to drive more than three displays) can be enabled using the
C
omputer (F10) Setup Utility. However, HP recommends using only discrete graphics cards when attaching four or more displays.
