6. Align the DIMM connector key with the DIMM socket key, and then seat the DIMM firmly in the
socket (1), as shown in the following figure.
CAUTION: DIMMs and their sockets are keyed for proper installation. To prevent socket or
DIMM damage, align these guides properly when installing DIMMs.

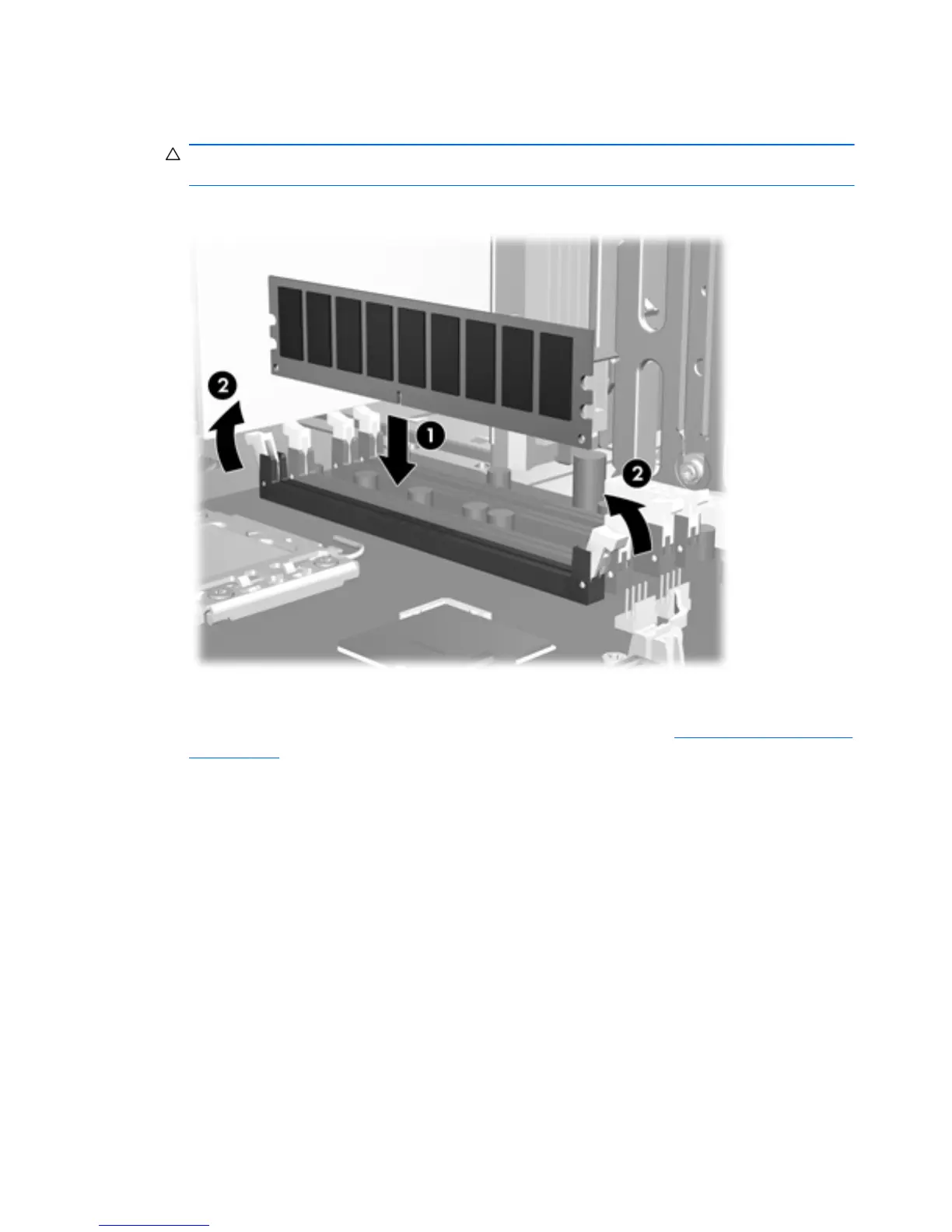

Figure 5-47 Seating the DIMM
7. Secure the socket levers (2).
8. For a 6-DIMM workstation configuration, replace the airflow guide (see
Installing the airflow guide
on page 111).
9. Replace all components that you removed in preparation for component installation.
120 Chapter 5 Replacing components ENWW
