The cables plug into the system board connectors in the following manner:
●
SATA HDD cables are plugged into SATA ports, starting at SATA port zero.
●
SAS HDD cables do not plug into system board connectors, but into a separate SAS controller
card.
Installation
To install an HDD:
1. Select a drive bay in which to install the hard disk drive.
2. Locate the four isolation grommet screws on the chassis.

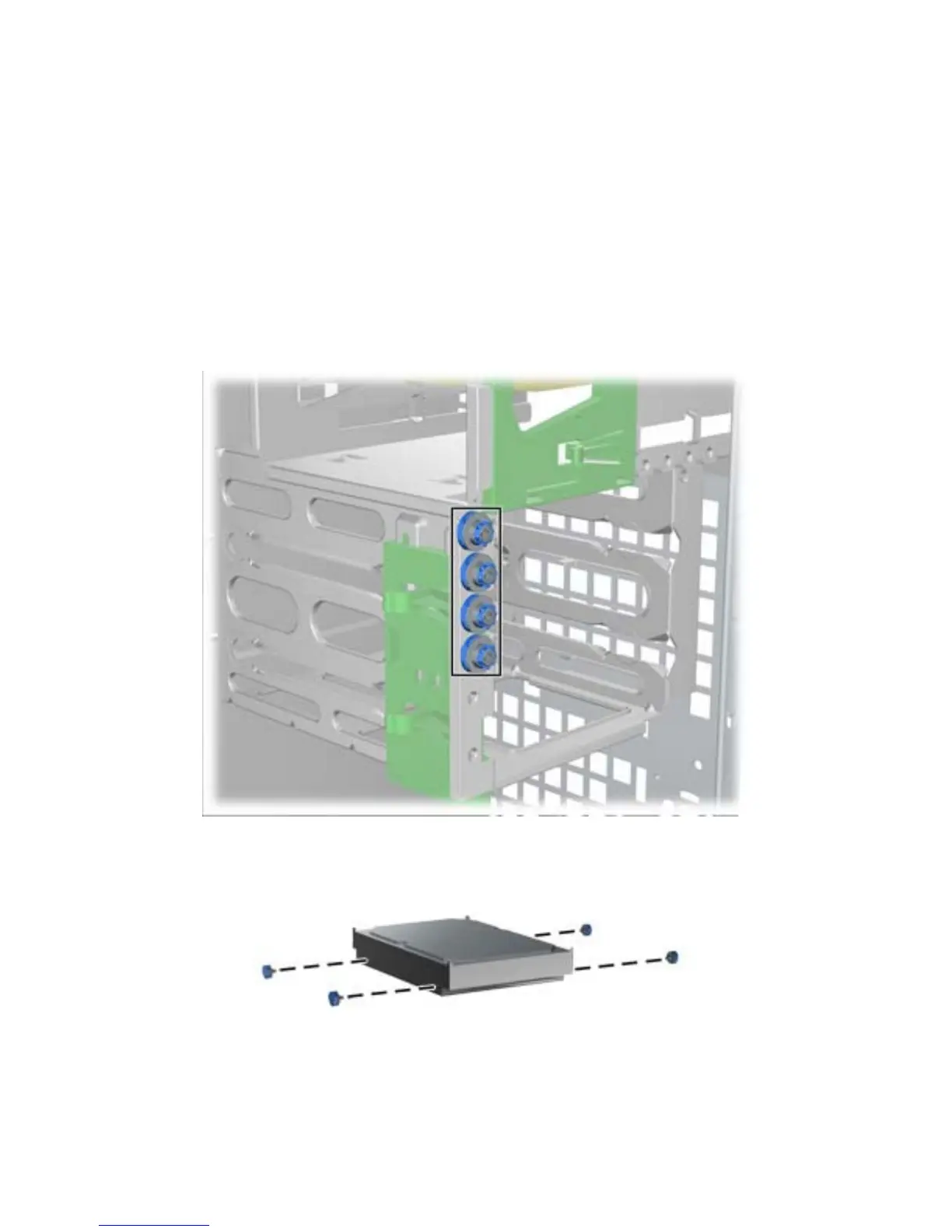

Figure 5-55 Locating the grommet screws
3. Install the four isolation grommet screws as shown in the following figure.
Figure 5-56 Installing the grommet screws
ENWW
Removing and installing components
131
