HP ZR2440w User Manual

Mounting a Quick-Release Panel
The ZR2240w, ZR2440w and ZR2740w support mounting to VESA-compliant hardware in two ways:
●
Remove the HP stand and use the 4 VESA mount threaded holes (100 x 100 pattern) that are in
the Quick Release 2 recess. Screws of the appropriate length are provided.
●
Alternatively, follow the instructions below to use the HP Quick Release 2 feature with your VESA
mounting hardware.
Start by removing the pedestal.

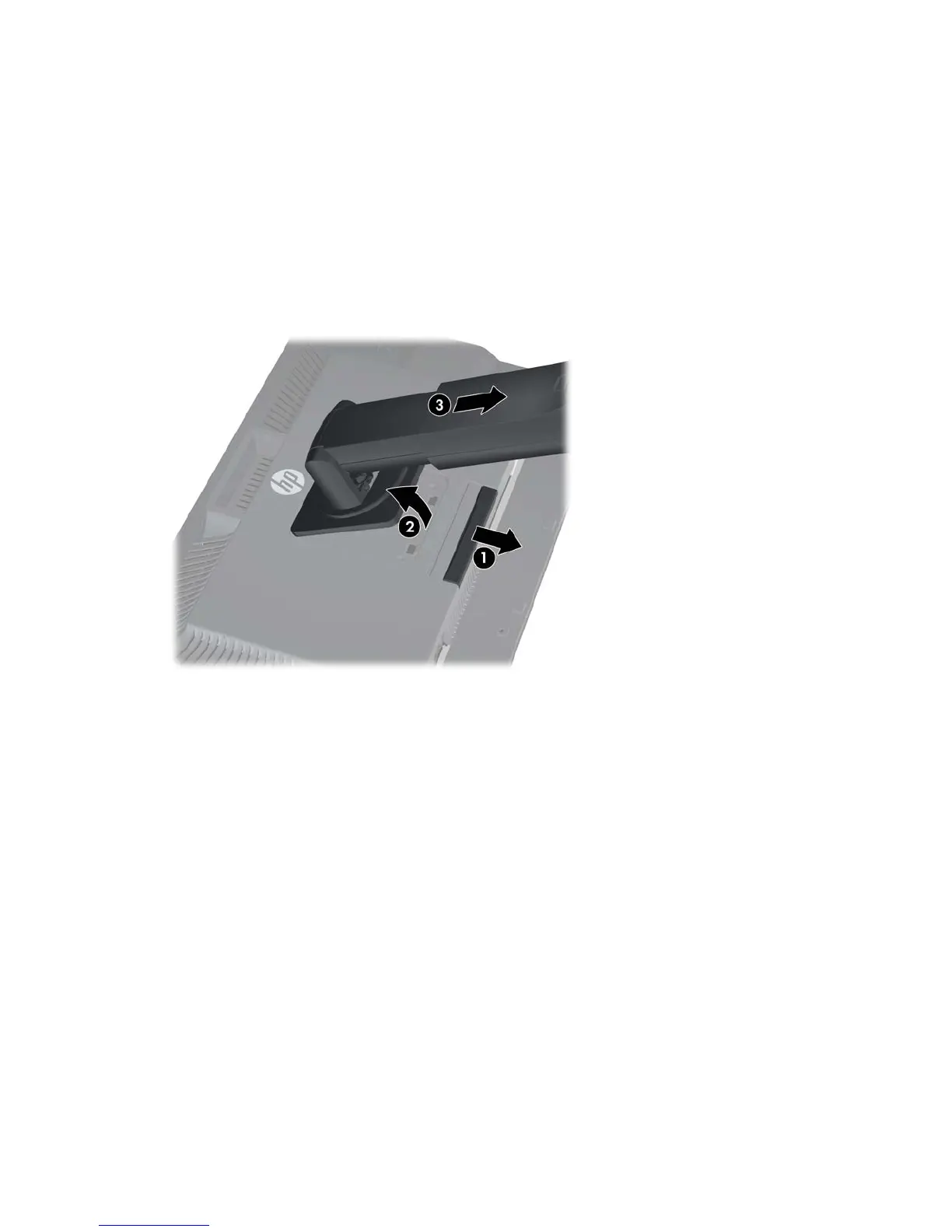

Figure 3-13 Removing the Pedestal
1. Press down on the latch near the bottom center of the monitor to unlock the HP Quick Release 2.
2. Swing the bottom of the pedestal up until the mounting plate clears the recess in the panel.
3. Slide the pedestal out of the recess.
ENWW
Mounting the Monitor to User-Supplied Support Hardware
17

HP ZR2440w Specifications

General

3D	No
Pixel pitch	0.270 x 0.270 mm
Aspect ratio	16:10
Response time	6 ms
Display surface	Matt
Display diagonal	24 \
Display resolution	1920 x 1200 pixels
Viewable size diagonal	611.3 mm
Contrast ratio (dynamic)	2000000:1
Contrast ratio (typical)	1000:1
Display number of colors	-
Digital vertical frequency	24 - 60 Hz
Digital horizontal frequency	24 - 80 kHz
Display brightness (typical)	350 cd/m²
Supported graphics resolutions	1920 x 1200 (WUXGA)
HDCP	Yes
USB hub version	2.0
DVI-D ports quantity	1
USB Type-A downstream ports quantity	4
Ethernet LAN (RJ-45) ports	0
Tilt angle range	-5 - 35 °
Height adjustment	100 mm
Panel mounting interface	100 x 100 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	48 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Cables included	DisplayPort, DVI, USB
Certification	EPEAT Gold, CB, CE, FCC, ETLus, VCCI, C-tick, BSMI, TUV-S, ISO9241-307, TUV-GS, CCC, CECP, CEL, NOM, PSB, KC, GOST, ISC
Country of origin	China
Compliance industry standards	TCO 5.0
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (without stand)	61 mm
Width (without stand)	562 mm
Height (without stand)	368 mm
Weight (without stand)	7600 g
