Models ZR2240w, ZR2440w, and ZR2740w use the HP Quick Release 2 mechanism for easy moving

of the monitor. To mount the panel onto the pedestal:

1. Slide the mounting plate on the pedestal under the upper lip of the recess in the back of the panel.

2. Lower the pedestal into the recess until it snaps into place.

3. The HP Quick Release 2 latch pops up when the monitor is locked in place.

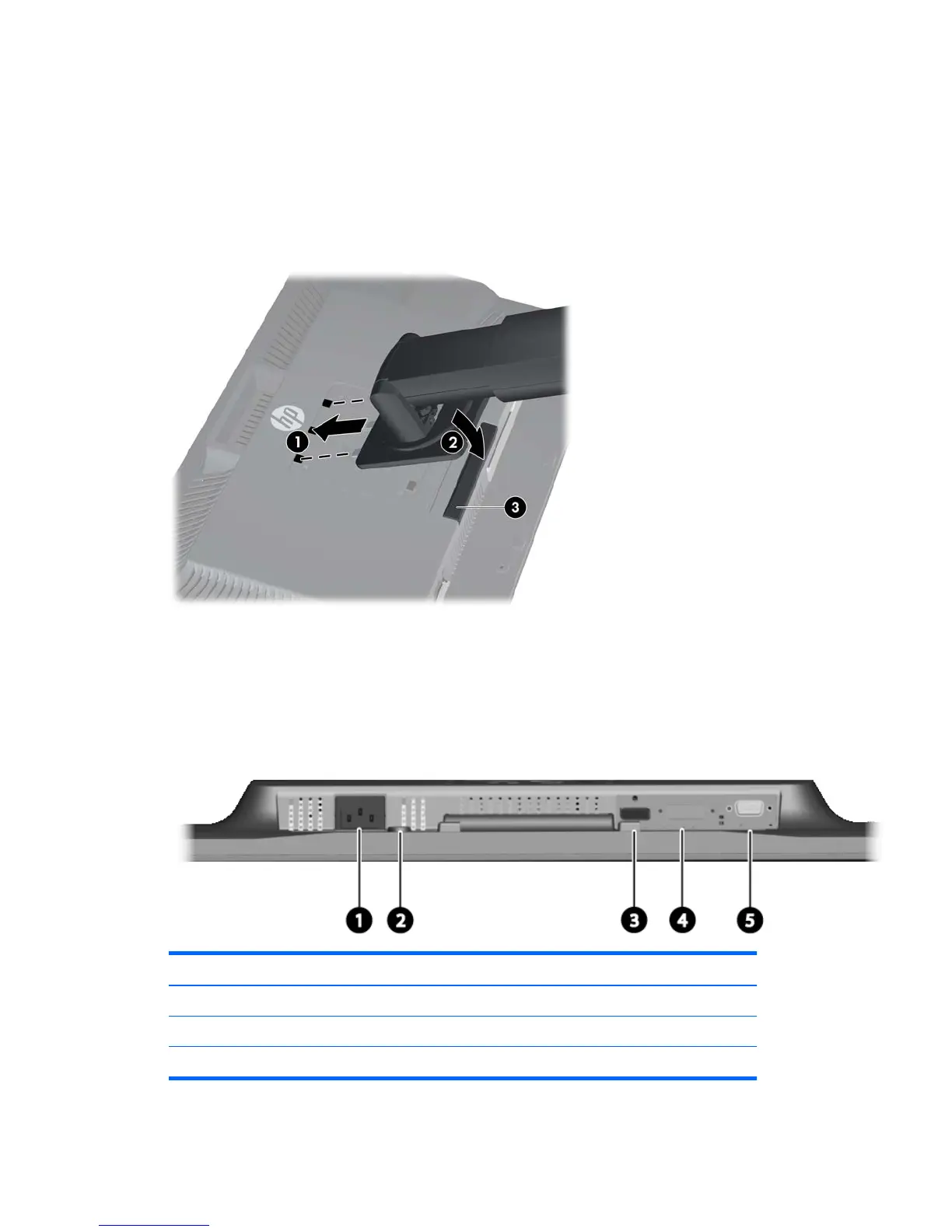

Figure 3-2 Mounting the Panel onto the HP Quick Release 2

Rear Components

ZR2040w Model

Figure 3-3 ZR2040w Rear Components

Component Function

1 AC Power Connector Connects the AC power cord to the monitor.

2 Cable Lock Provision Provides slot for use with cable security locks.

3 DisplayPort Connector Connects the DisplayPort cable to the monitor.
