Mounting a Quick-Release Panel

The ZR2240w, ZR2440w and ZR2740w support mounting to VESA-compliant hardware in two ways:

●

Remove the HP stand and use the 4 VESA mount threaded holes (100 x 100 pattern) that are in

the Quick Release 2 recess. Screws of the appropriate length are provided.

●

Alternatively, follow the instructions below to use the HP Quick Release 2 feature with your VESA

mounting hardware.

Start by removing the pedestal.

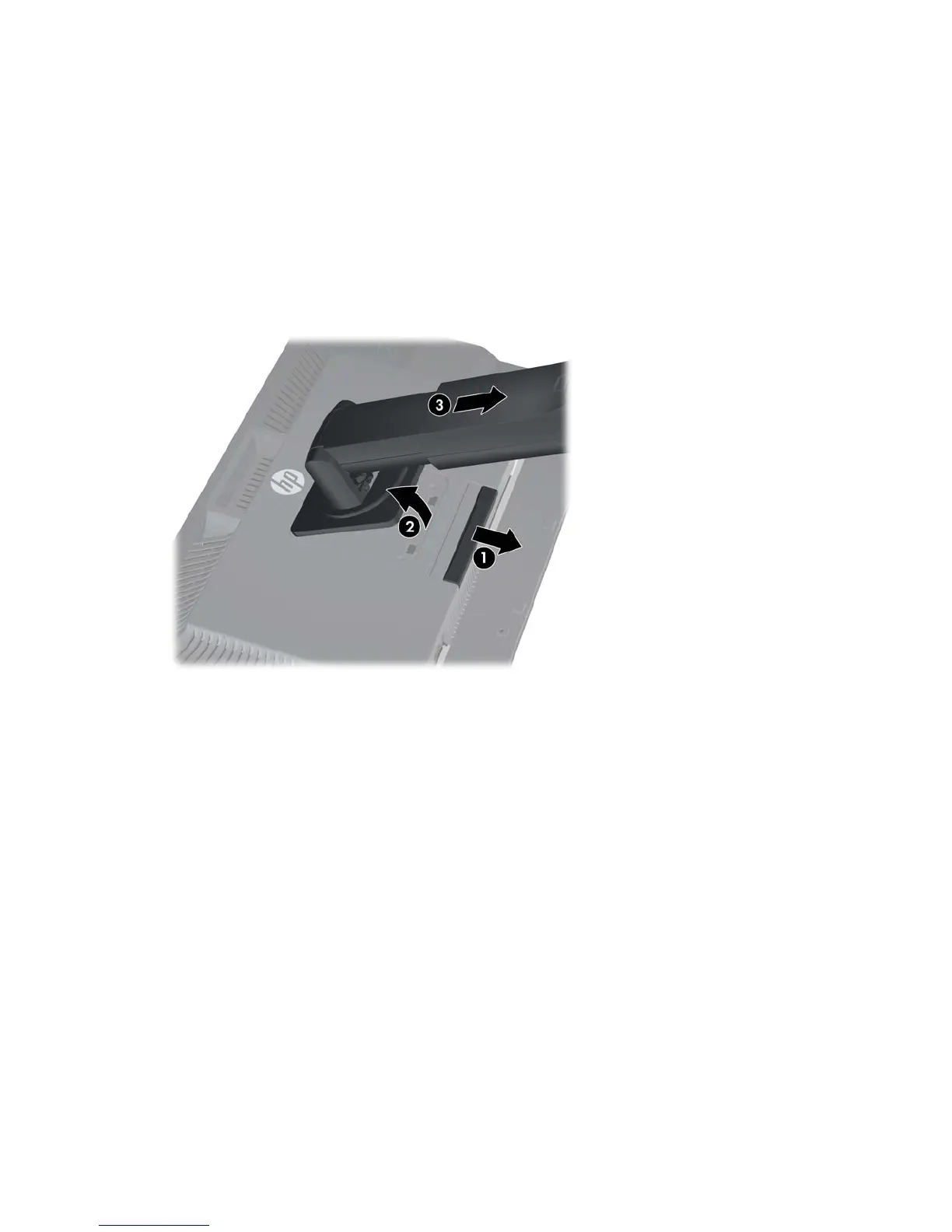

Figure 3-13 Removing the Pedestal

1. Press down on the latch near the bottom center of the monitor to unlock the HP Quick Release 2.

2. Swing the bottom of the pedestal up until the mounting plate clears the recess in the panel.

3. Slide the pedestal out of the recess.

ENWW

Mounting the Monitor to User-Supplied Support Hardware
