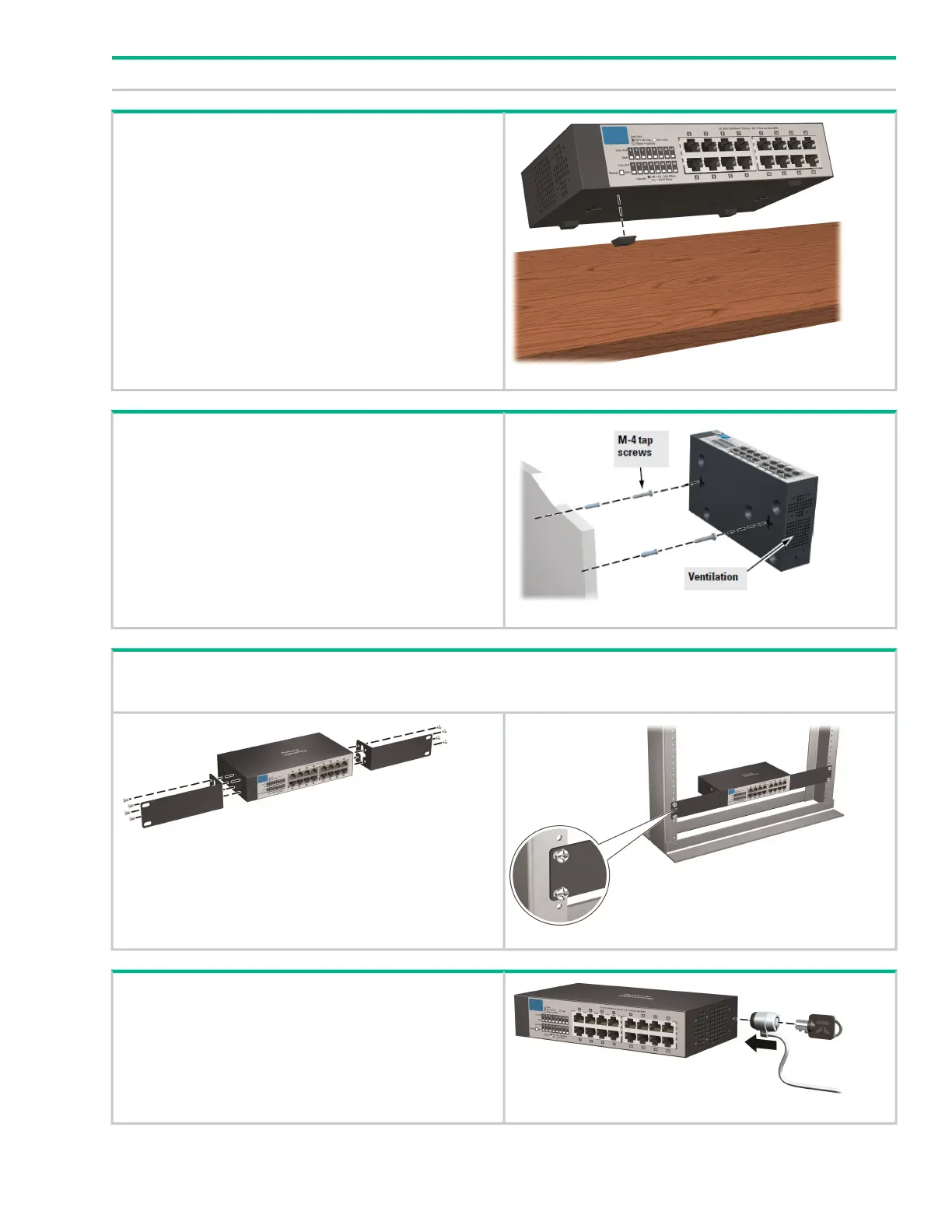

4. Install the Switch Hardware. Turn off the switch before installing the switch hardware.
Table or desktop: Attach the four self-adhesive pads (included
in the accessory kit) to the bottom corners of the switch.
Wall or Under-Table: A special kit for wall-mounting (or
under-table mounting) is included. Use a #1 Phillips
(cross-head) screwdriver and the 20-mm M4 tap screws
(included).
For screw positions, see the <mounting template on page 4.>
(Under-Table: After installation, a third screw may be used to
prevent switch movement.)
For wall-mounting, the network ports may face up or down. Do
not mount the switch with ventilation ducts facing up or down.
(See “Safety Precautions” (page 3).)
Rack Mounting: A special rack-mounting kit is included. Use a #1 Phillips (cross-head) screwdriver to attach the special
brackets to the switch using the eight 8-mm M4 screws. Then use the four number 12-24 screws to secure the brackets to the
rack.
5. (Optional) Lock the Switch. Use a Kensington lock or
similar device (not included) to physically secure the switch.
