HPE BladeSystem c7000 User Manual

5
CAUTION: Do not mix 2250W, 2400W High Efficiency,
BL7000 2400W Platinum, or -48vDC power supplies in
one enclosure. Install only one type of power supply in a
single enclosure.
5. (Optional) If you are installing a full-height device, remove the
half-height device bay shelf. If you are installing a half-height
device, omit this step.
If your BladeSystem c7000 Enclosure is equipped with a
three-phase power configuration, you need six power supplies.

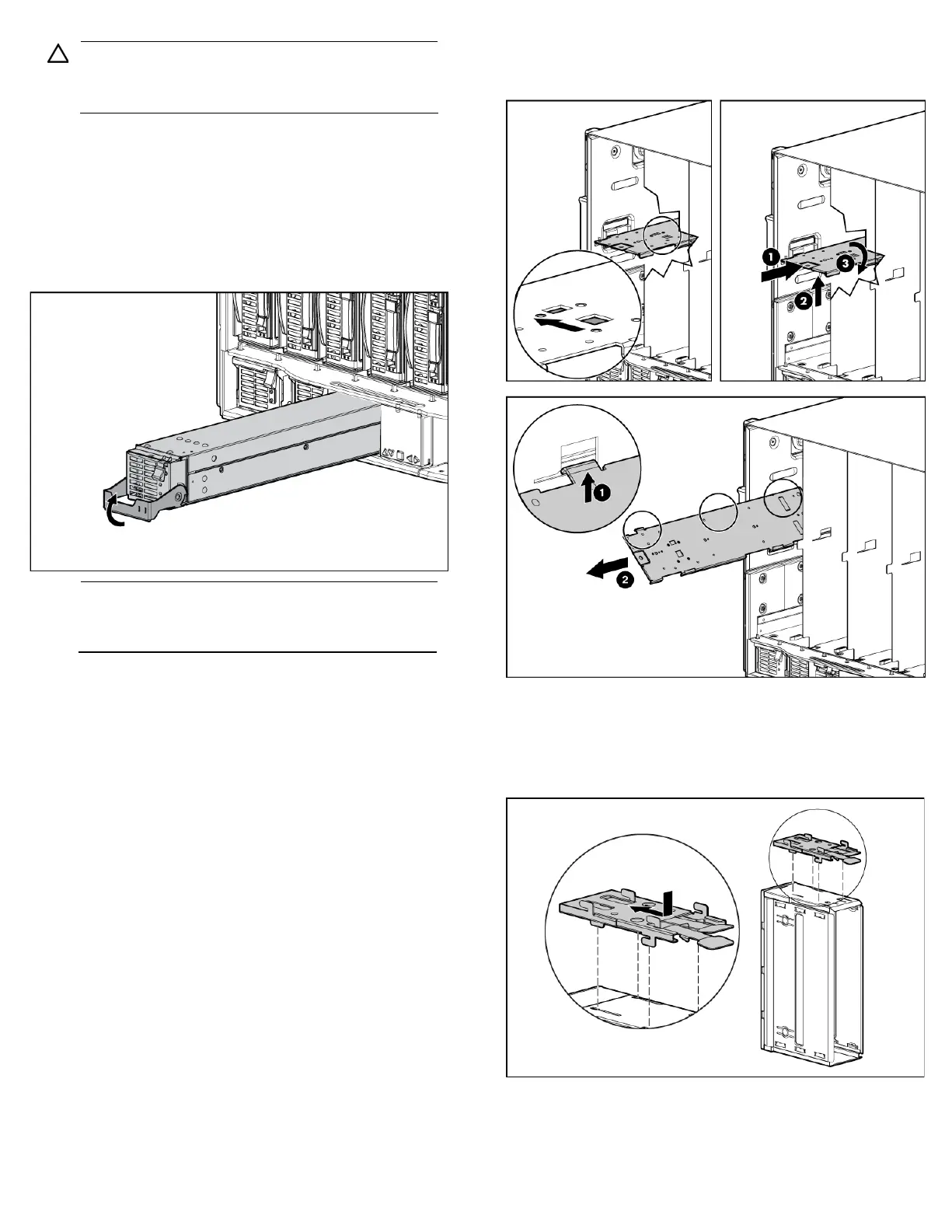

To install a power supply:
1. To gain access to all power supply bays, slide the
BladeSystem Insight Display to the right or left as needed.
2. Remove the power supply blank.
3. Insert the power supply into the enclosure, and then close the
power supply bracket.
NOTE: This document discusses installation of AC
power supplies only. For information on configuring DC
power supplies or Carrier Grade Solutions, see the
documentation that came with your power supply.
4. Add any ordered options to each server blade:
o Additional processor
o Additional memory
o Mezzanine option cards
6. Remove the connector covers.
7. Install the server or storage blades.
8. Install device bay blanks into any unused device bays.
If the empty bays are configured for a full-height device, join
two device bay blanks to create a full-height blank.
Installing the rear components

HPE BladeSystem c7000 Specifications

General

Form Factor	10U
Interconnect Bays	8
Blade Slots	16 half-height or 8 full-height
Device Bays	16 half-height blade server bays or 8 full-height blade server bays
Power Supplies	Up to 6 hot-plug power supplies
Cooling Fans	10 hot-plug fans
Management	Onboard Administrator
Height	17.5 inches
Width	17.6 inches
Compatibility	HPE ProLiant and Integrity server blades
Non-operating Temperature	-40° to 70°C (-40° to 158°F)
Operating Humidity	10% to 90% (non-condensing)
Non-operating Humidity	5% to 95% (non-condensing)
Networking	Dependent on installed interconnect modules
Operating Temperature	10° to 35°C (50° to 95°F)
