HPE BladeSystem c7000 User Manual

10
Interconnect device mapping for double dense
server blades
The following table lists the available configurations for double dense
server blades installed in device bay N (1-16).
Connection
Port number
Connects to
interconnect
bay/port
Server A
Embedded NIC
NIC 1 (ENET:1)
NIC 2 (ENET:2)
1/Port N
3/Port N
Server A
Mezzanine
Port 1
Port 2
5/Port N
6/Port N
Server B
Embedded NIC
NIC 1 (ENET:1)
NIC 2 (ENET:2)
2/Port N
4/Port N
Server B
Mezzanine
Port 1
Port 2
7/Port N
8/Port N
Interconnect device mapping for AMC Telco I/O
expansion blades
The following table lists the available configurations for AMC Telco
I/O expansion blades installed in device bay N (1-16).
Connection Port number
Connects to
interconnect
bay/port
AMC Embedded
Port 1
1/Port N
(1)
Port 2 2/Port N
Port 3
3/Port N
Port 4
4/Port N
AMC Embedded
Port 5
5/Port N
(2)
Port 6 6/Port N
Port 7
7/Port N
Port 8
8/Port N

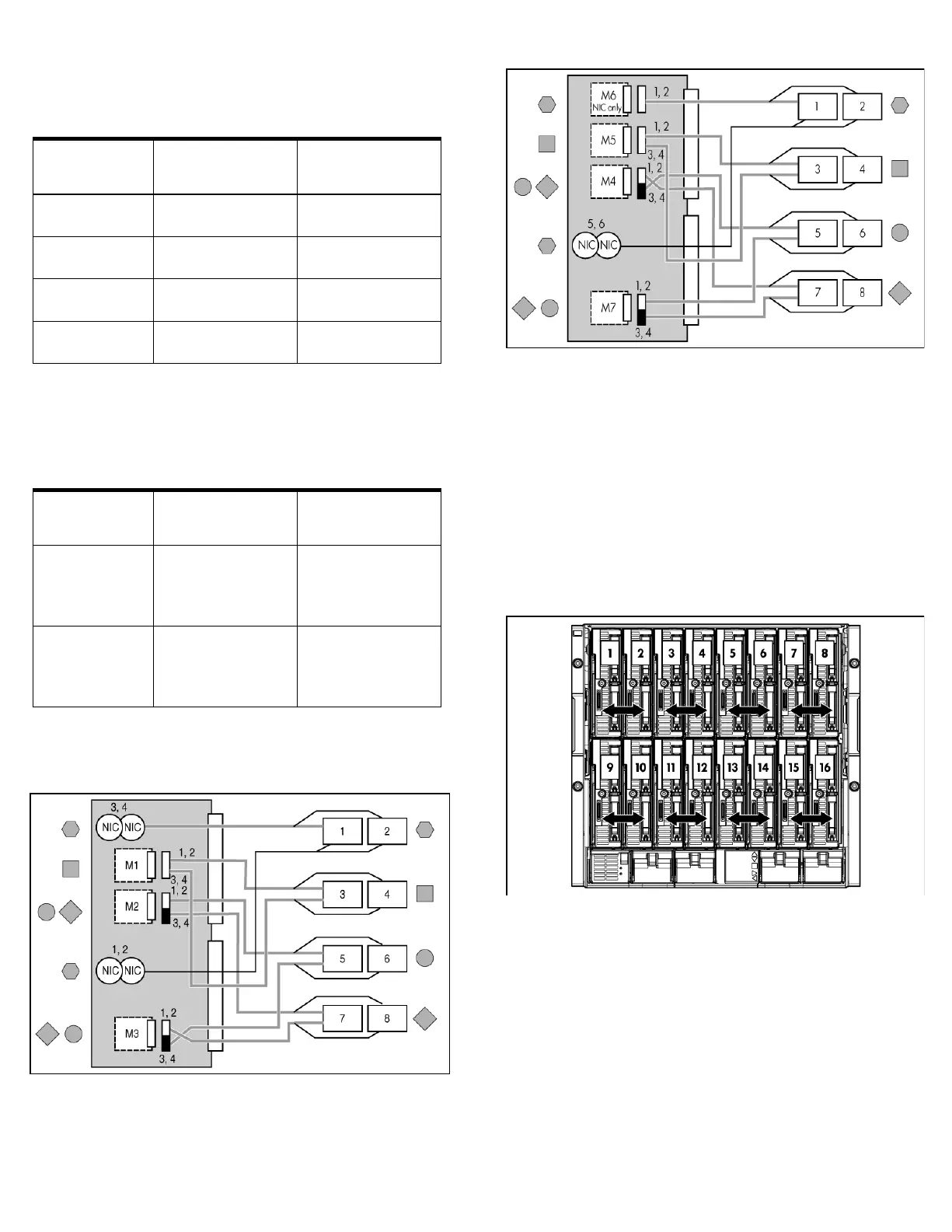

Mapping the BL680c G7 Blade
•
A side
•
B side
To support network connections for specific signals, install an
interconnect module in the bay corresponding to the embedded NIC
or mezzanine signals.
Bay-to-bay crosslinks
Four trace SerDes signals between adjacent bays are provided in
the enclosure midplane to permit bay-to-bay communications.
Interconnect modules can only connect horizontally.
Device bay crosslinks
Device bay crosslinks are wired between adjacent horizontal device
bay pairs.
For half-height blades, these signals connect a four-lane PCIe
module to a partner blade such as a tape blade or a PCI expansion
blade. For full-height blades, these signals are used to connect a
PCIe module to a partner blade in the lower adjacent bay and require
a PCIe pass-thru mezzanine card installed in mezzanine connector
3. The Onboard Administrator with KVM disables the device bay
crosslinks when they cannot be used, such as when two server
blades reside in adjacent device bays.

HPE BladeSystem c7000 Specifications

General

Form Factor	10U
Interconnect Bays	8
Blade Slots	16 half-height or 8 full-height
Device Bays	16 half-height blade server bays or 8 full-height blade server bays
Power Supplies	Up to 6 hot-plug power supplies
Cooling Fans	10 hot-plug fans
Management	Onboard Administrator
Height	17.5 inches
Width	17.6 inches
Compatibility	HPE ProLiant and Integrity server blades
Non-operating Temperature	-40° to 70°C (-40° to 158°F)
Operating Humidity	10% to 90% (non-condensing)
Non-operating Humidity	5% to 95% (non-condensing)
Networking	Dependent on installed interconnect modules
Operating Temperature	10° to 35°C (50° to 95°F)
