The rails are labeled Left and Right to designate the left side and right side of the rack as viewed
from the front of the cabinet.

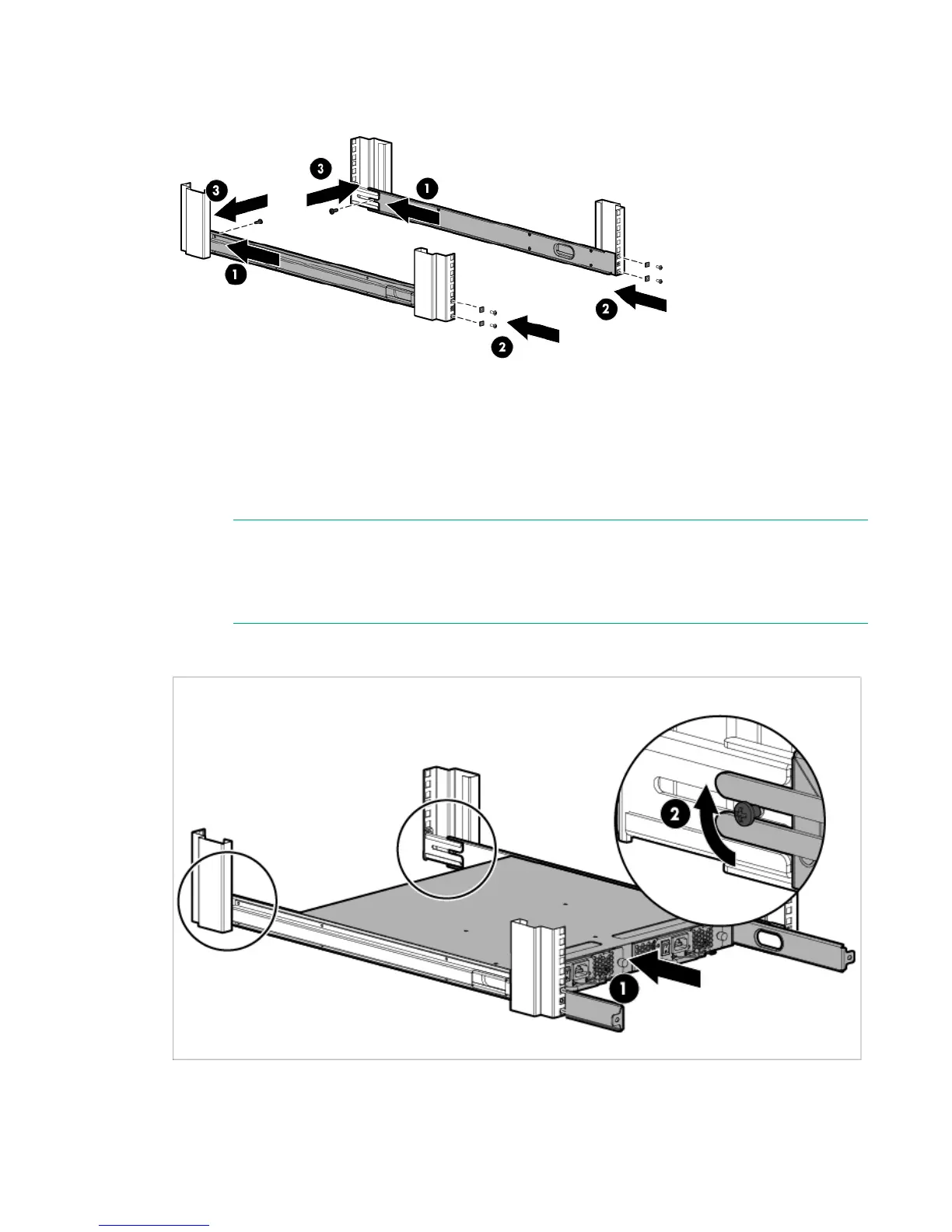

Figure 8: Attaching the outer rails
a. Slide the rail over the rear mounting brackets.
b. Attach the front of the rail to a front rack upright column using two Phillips screws and adapter
washers.
c. Attach the outer rail to the rear mounting bracket using a Phillips screw.
NOTE:
Tighten the rear screws just enough for the end of the screw to go through the rear
brackets. Later in the procedure, you will need room to slide the inner rail between the
screw head and the outer bracket.
5. From the front of the rack, slide the switch (with inner rails attached) onto the outer rails, taking care
to align the inner rails with the attachment screws on the outer rails at the rear of the rack.
Figure 9: Installing the switch in the rack
Setup and install 13
