NOTE:
The two LEDs on the serial console port are not functional.
3
4
2
1
1. Power supply and fan assembly 2 2. Power supply and fan assembly 1
3. Power supply and fan assembly 1 status LED 4. Power supply and fan assembly 2 status LED

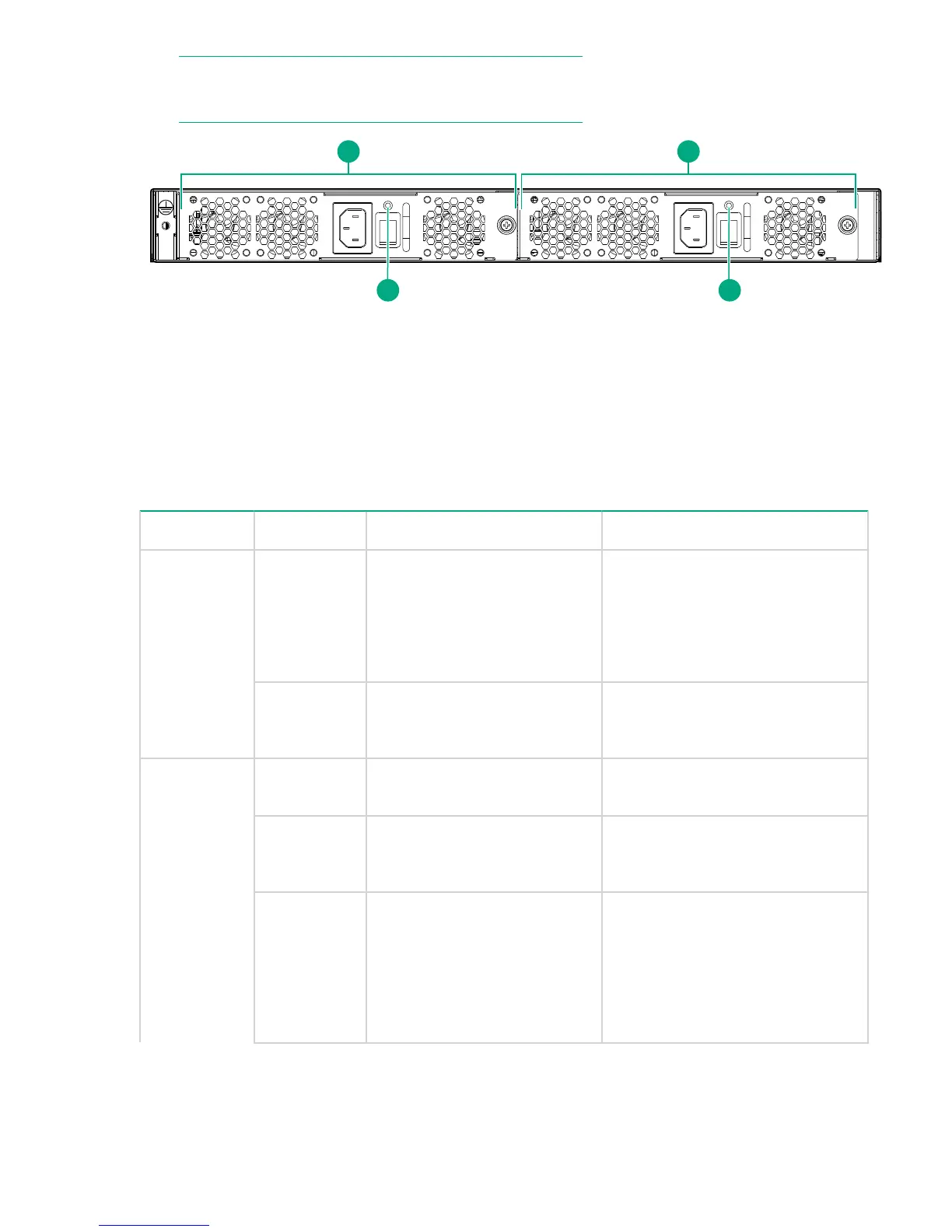

Figure 15: LEDs on nonport side of the HPE StoreFabric SN6600B 32Gb FC Switch
Table 2: LED patterns on the port side of the HPE StoreFabric SN3600B 32Gb FC
Switch and HPE StoreFabric SN6600B 32Gb FC Switch
LED name LED color Status of hardware Recommended action
System power
LED
No light System is off or there is an
internal power supply failure.
Verify the system is powered on
(power supply switches set to I), the
power cables are attached, and the
power source is live.The unit may be
faulty. Contact your switch service
provider.
Steady green System is on and power
supplies are functioning
properly.
No action is required.
System status
LED
No light System is off or there is no
power.
Verify the system is on and has
completed booting.
Steady green POST and initialization is
completed. System is on and is
functioning properly.
No action is required.
Steady amber
(for more than
5 seconds-can
take over a
minute to
complete
POST)
This LED is steady amber
during POST, which is normal
and does not indicate a fault.
No action is required.
Table Continued
