Shenzhen Hpmont Technology Co., Ltd. Chapter 7 Detailed Function Introduction
HD09 Series User Manual V1.1 -31-

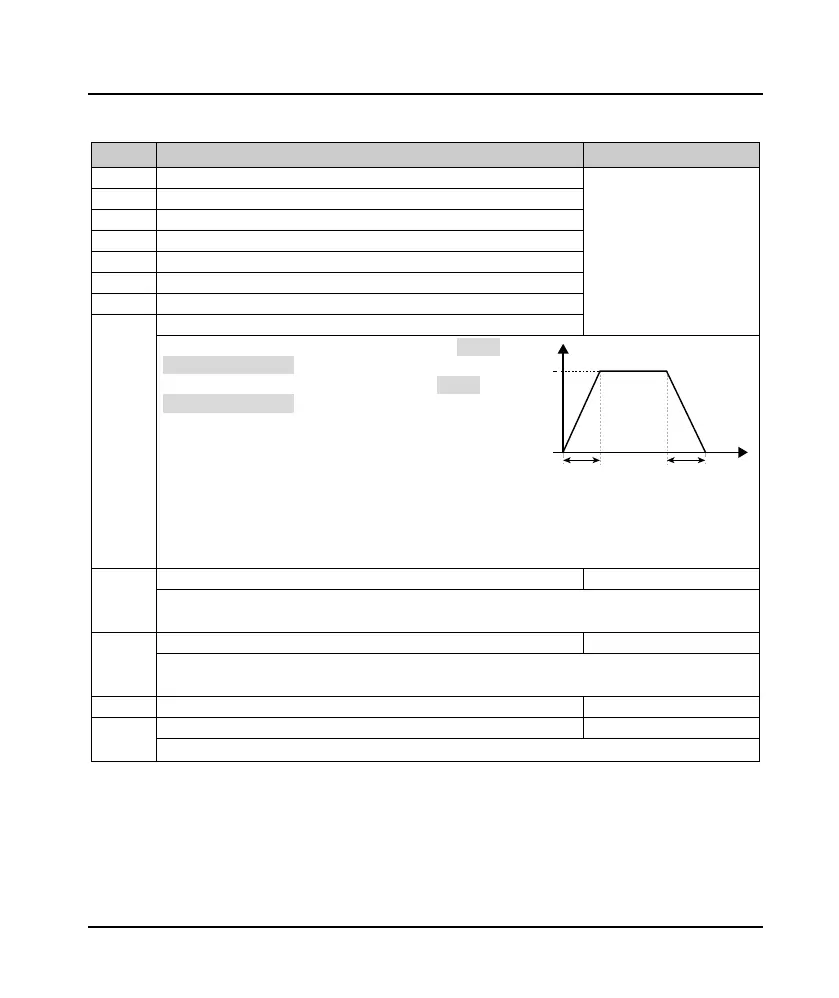

7.4 F03: Acceleration and Deceleration Parameter
Ref. Code Function Description Setting Range [Default]
F03.01 Acc. time 1 0.01 - 600.00 [10.00s]
F03.02
Dec. time 1
F03.03 Acc. time 2
F03.04
Dec. time 2
F03.05 Acc. time 3
F03.06
Dec. time 3
F03.07 Acc. time 4
F03.08
Dec. time 4
Acc. time means converter accelerating time from 0 to F00.06
(Max. output frequency) in line mode.
Dec. time means converter decelerating time from F00.06
(Max. output frequency) to 0 in line mode.
Acc. and Dec. time switchover: During converter running, DI
terminals 26 and 27 or F03.09, F03.10 can be used to set Acc.
And Dec. time.
Note: If brake resistor not installed correctly, sudden deceleration or huge load inertia deceleration, converter may
be in over voltage fault.
In order to aviod over voltage, it is better to choose correct brake resistor, increas Dec. time and adjust F19.18,
F19.19.
F03.09
Frequency switchover of Acc. time 2 and 1
0.0 - Max. frequency [0.0Hz]
When running frequency is lower than F03.09, accelerats in Acc.time 2; Otherwise, speed up in Acc. time 1.
• It is invalid when terminals are chosed to Acc. and Dec. time (DI terminals are setted as function 26 and 27)
F03.10
frequency switchover of Dec. time 2 and 1
0.0 - Max. frequency [0.0Hz]
When running frequency is lower than F03.10, speed up in Dec.time 2; Otherwise, speed down in Dec. time 1.
• It is invalid when terminals are chosed to Acc. and Dec. time (DI terminals are setted as function 26 and 27).
F03.15
Inching Acc.time
0.01 - 600.00 [6.00s]
F03.16 Inching Dec.time 0.01 - 600.00 [6.00s]
F03.15, F03.16 define Acc. and Dec. time in inching running.
F00.06
Frequency
Time
0
Acc. time Dec. time
