hpmont HD09-2S1P5G User Manual

Chapter 7 Detailed Function Introduction Shenzhen Hpmont Technology Co., Ltd.
-42- HD09 Series User Manual V1.1
Ref. Code Function Description Setting Range [Default]
30: Overload signal (OL).
• The indicating signal can be output when the inverter’s output current value is higher than that defined
by F20.01 (overload pre-alarm detection threshold) and the overload time is longer than that defined by
F20.02 (overload pre-alarm detection time).
31: Inverter failure.
• When the inverter is failed, the indicator output.
38: Pulse output (DO only).
• DO as a pulse output, see F16.21 for details.
F15.27
Frequency reach ( FAR) width detection
0.0 - 100.0 [2.5Hz]

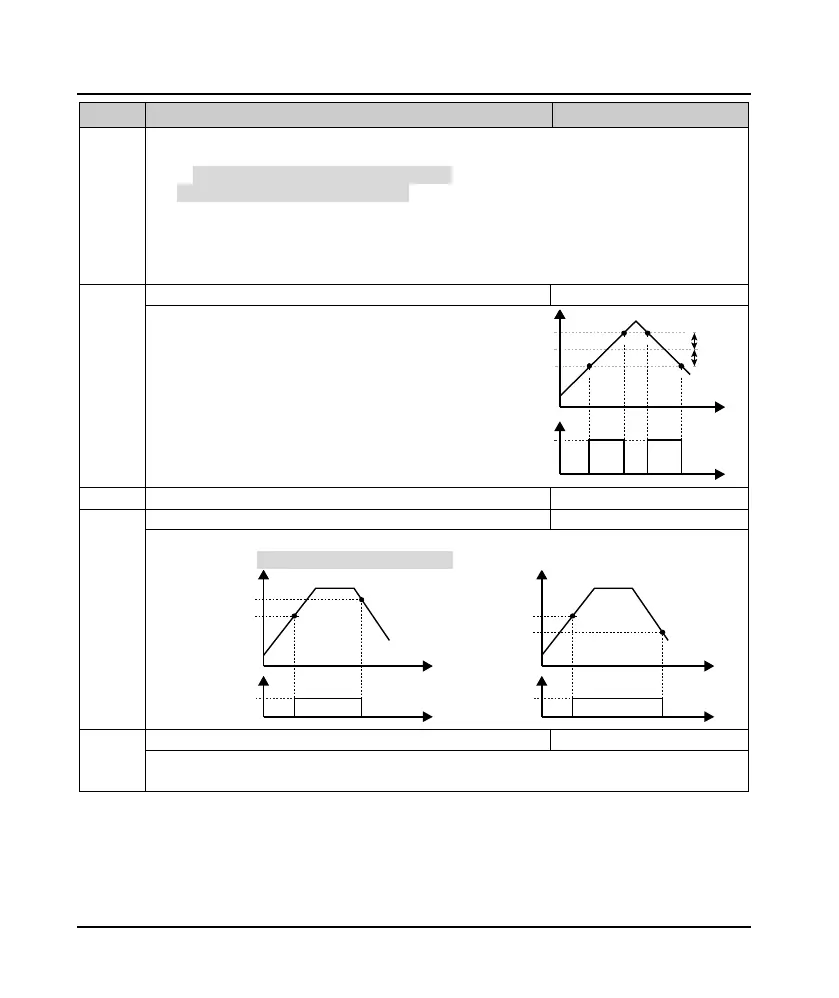

When the output frequency of converter is within plus
or minus detection width of setting frequency (right
diagram Fset). DO output pulse signal is shown in the
picture on the right.
F15.31 FDT electrical level 0.0 - F00.06 [50.0Hz]
F15.32
FDT delay
-F00.06 - F00.06 [1.0Hz]
When the output frequency exceeds F15.31 frequency, the DO output indicating signals, until the output
frequency drops to a certain frequency (F15.31 - F15.32), as shown in the figure below.
F15.36 Set running time 0 - 65535 [0h]
When running total time of the inverter reaches F15.36, DO or relay will output 500ms width pulse guiding
signal.
Output
Output
Time
Time
DO
F15.27
F15.27
Fset
Fset+F15.27
Fset-F15.27
Output Output
Output frequencyOutput frequency
Time
Time
Time
Time
F15.31-F15.32
F15.31
DO
F15.32 < 0 F15.32 > 0
DO
F15.31-F15.32
F15.31
