HT100/HT130 User Manual
Rev.1.2
23
3.4.4 Blackmark Paper

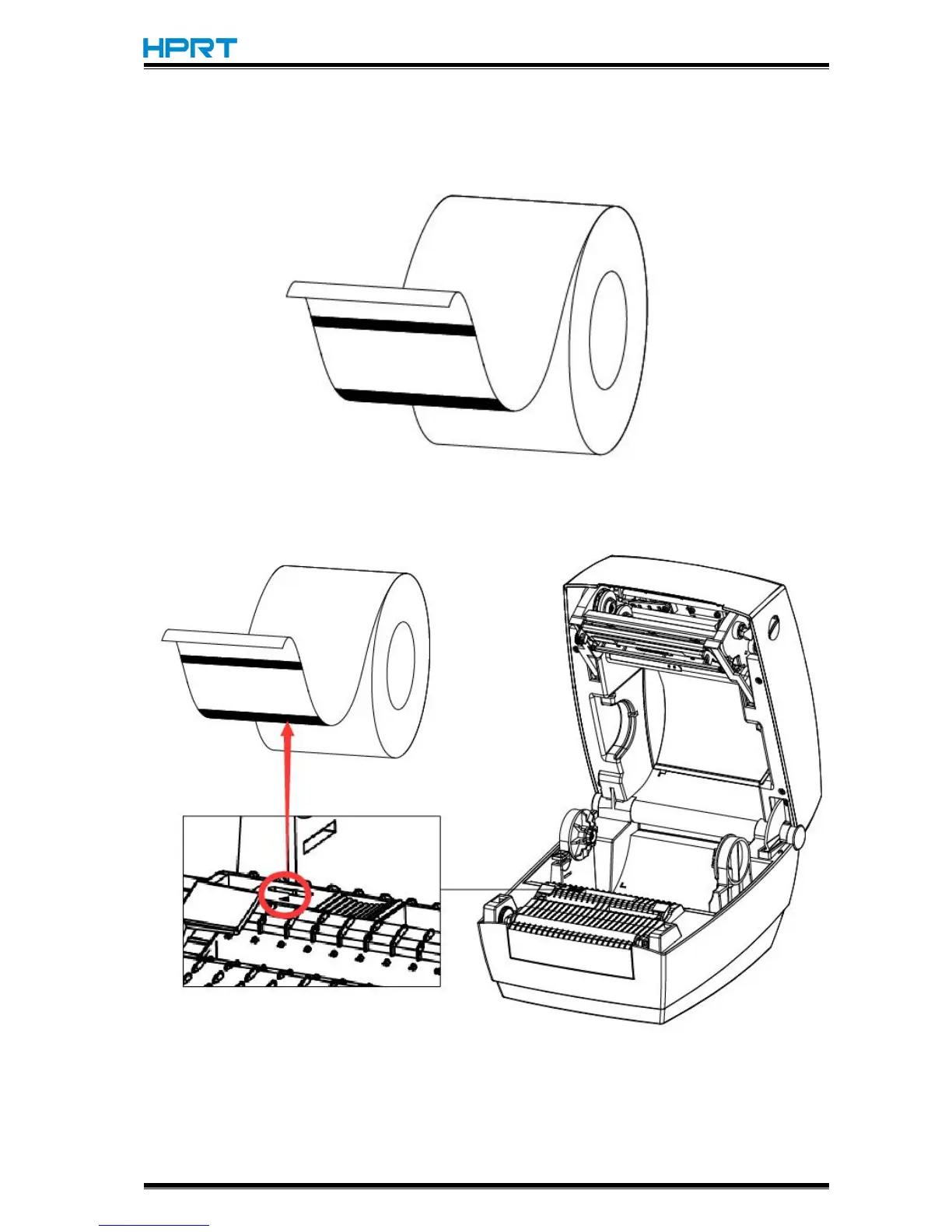

When printing blackmark paper (Figure 7), the sensor shall be aimed at the position of black
mark (Figure 8).
Figure 7 (Blackmark Paper)
Figure 8 (aimed at blackmark’s position)
