TP80C User Manual
22

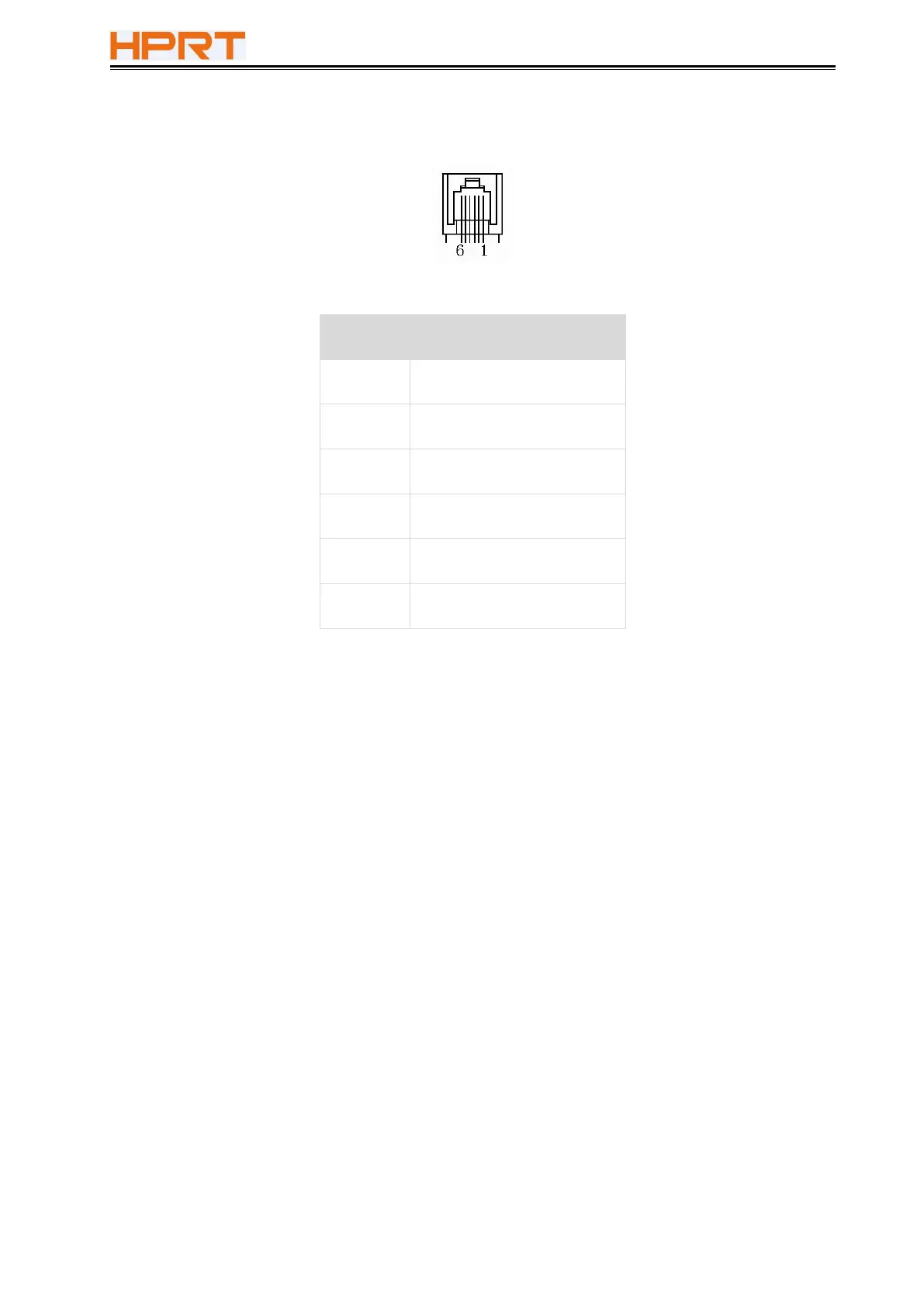

5.2 Cash Drawer Interface
Figure 5-2
PIN
SIGNAL NAME
1
FG
2
Drawer 1
3
DRSW
4
VDR
5
Drawer 2
6
GND
Electrical characteristics
Driving voltage：DC 24V
Driving current
：
Maximum 0.8 A ( In 510 ms)
Detection signal for drawer status："L" = 0～0.5 V "H" = 3～5 V
