Shredder HSM FA 400.2
2004-12 15

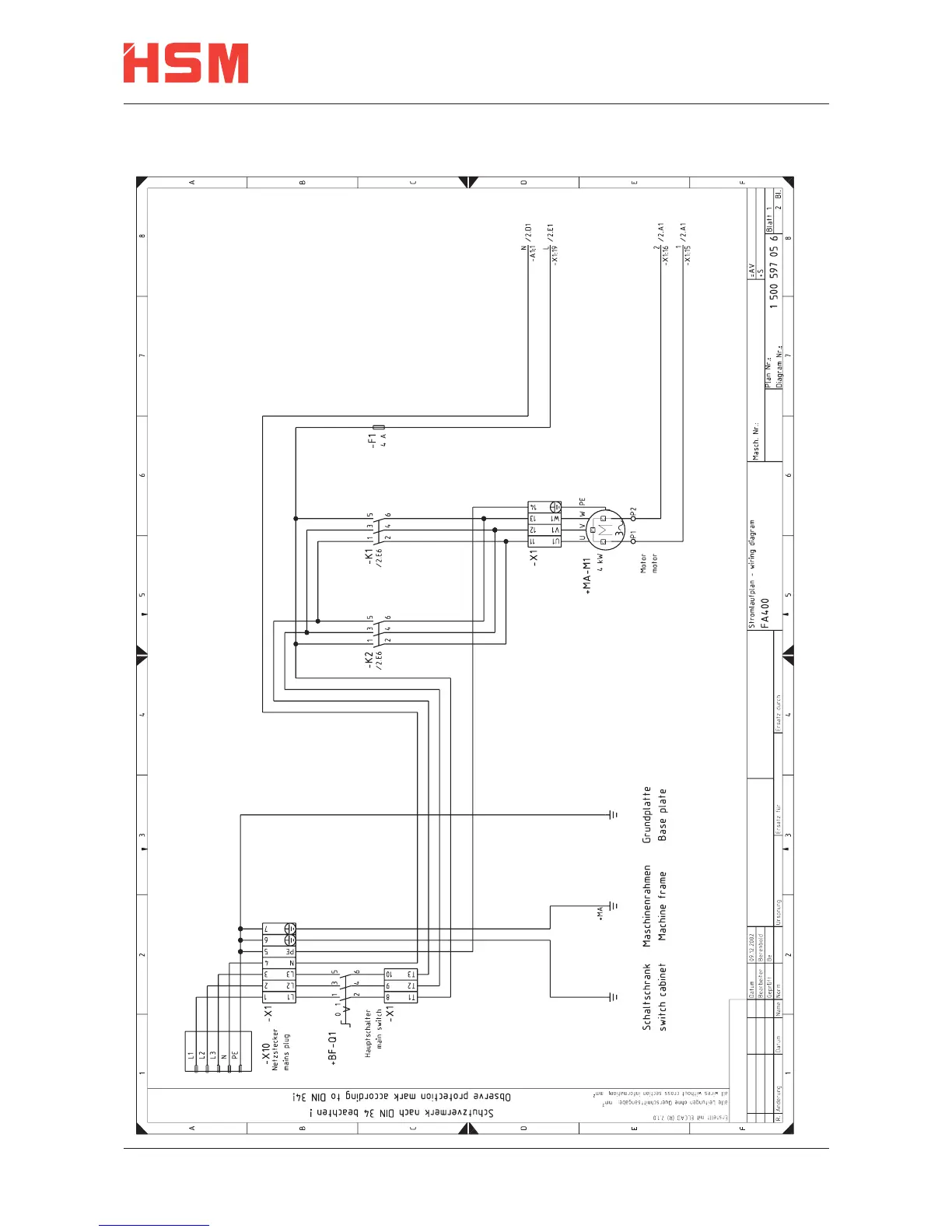

12. Electric wiring diagrams
400 V / Solo
Legend:
=AV: Shredder
+S: in switch cabinet
+MA: on machine
+BF: Keypad
