HT G Series - Autotest in TN Systems

Gx Series
EN - 96
14

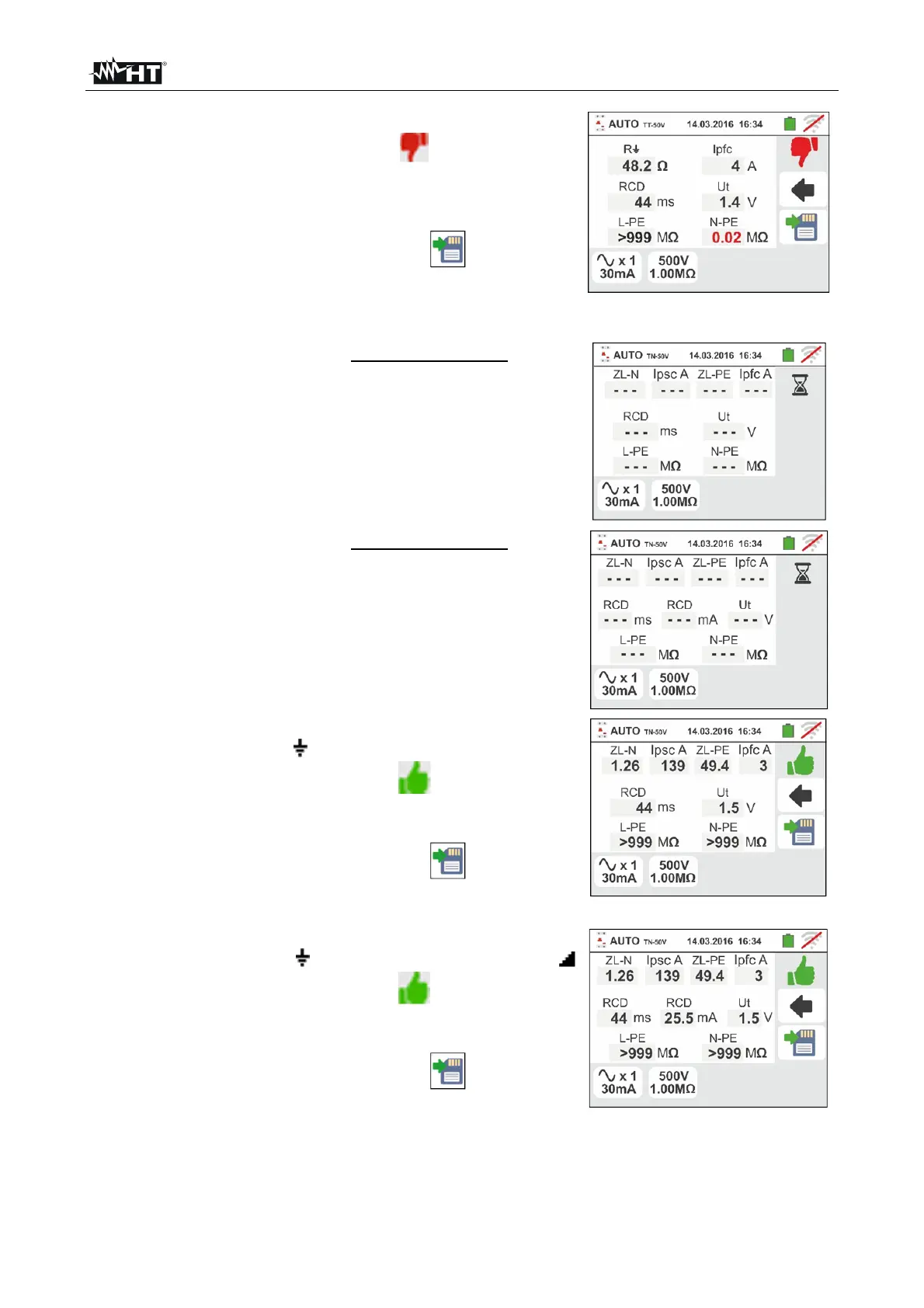

In case of negative result of the M N-PE, the auto
test is automatically blocked, the symbol is shown
and the screen to the side is displayed. Note red
value (lower than minimum set trhreshold) of the N-PE
insulation resistance
Press the SAVE button or touch the icon to save
the measurement (see § 7.1)
AutoTest in TN systems 6.10.2.
6. Press the GO/STOP key for few seconds or the
START key on the remote lead. During this whole
stage, do not disconnect the measuring leads of the
instrument from the system under test. In case of RCD
tripping time measurement selection the screen to
the side appears on the display when the hourglass
icon indicates the performance of the test
7. Press the GO/STOP key for few seconds or the
START key on the remote lead. During this whole
stage, do not disconnect the measuring leads of the
instrument from the system under test. In case of RCD
tripping current measurement selection the screen to
the side appears on the display when the hourglass
icon indicates the performance of the test
8. In case of positive result of the three test sequentially
performed as NoTrip (Z
L-N
and Z
L-PE
<199), RCDX1
(see § 13.4) and M L/N-PE the symbol is shown
and the screen to the side is displayed by the
instrument
Press the SAVE button or touch the icon to save
the measurement (see § 7.1)
9. In case of positive result of the three test sequentially
performed as NoTrip (Z
L-N
and Z
L-PE
<199), RCD
(see § 13.4) and M L/N-PE the symbol is shown
and the screen to the side is displayed by the
instrument
Press the SAVE button or touch the icon to save
the measurement (see § 7.1)
