6.8. AUX: MEASURE OF AMBIENT PARAMETERS VIA EXTERNAL PROBES
By means of external transducers, this function allows measuring the following
environmental parameters:
°C air temperature in °C by means of thermometric transducer
°F air temperature in °F by means of thermometric transducer
Lux(20) illuminance of white light sources and LED sources by means of luxmetric
transducer with a 20Lux capacity
Lux(2k) illuminance of white light sources and LED sources by means of luxmetric
transducer with a 2kLux capacity
Lux(20k) illuminance of white light sources and LED sources by means of luxmetric
transducer with a 20kLux capacity
RH% air relative humidity by means of humidity transducer
mV input DC voltage (without applying any transduction constant)

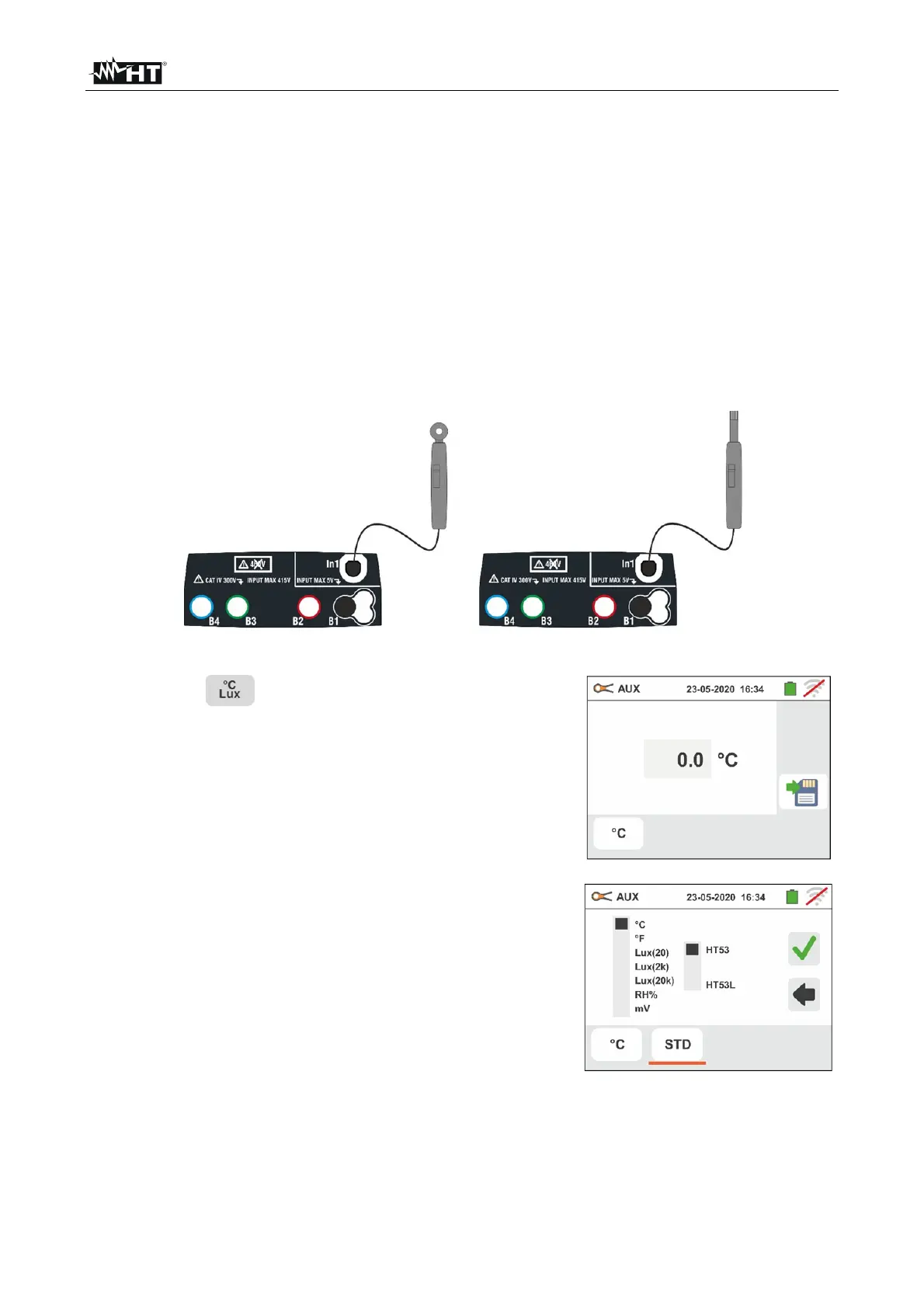

Fig. 33: Measurement of environmental parameters through external probes
1.
Touch the icon. The screen to the side appears
on the display.
Touch the icon in the lower left corner to set the type of
measurement. The following screen appears on the
display:
2. Move the left slide bar reference to select the type of
measurement among the options: °C (temperature in
Celsius degrees), °F (temperature in Fahrenheit
degrees), Lux(20) (illuminance with 20Lux capacity),
Lux(2k) (illuminance with 2kLux capacity), Lux(20k)
(illuminance with 20kLux capacity) ,%RH (relative
humidity), mV (measurement of DC voltage up to 1V).
Move the right slide bar reference to select the model of
optional probe for illuminance measurement between
the options:
HT53 measurement on white light sources
HT53L measurement on both white light sources
and LED sources of different colors
Confirm the choices by going back to the initial
measurement screen.
