5.2. AC VOLTAGE MEASUREMENT

CAUTION

The maximum input AC voltage is 1000V. Do not measure voltages

exceeding the limits given in this manual. Exceeding voltage limits could

result in electrical shocks to the user and damage to the instrument.

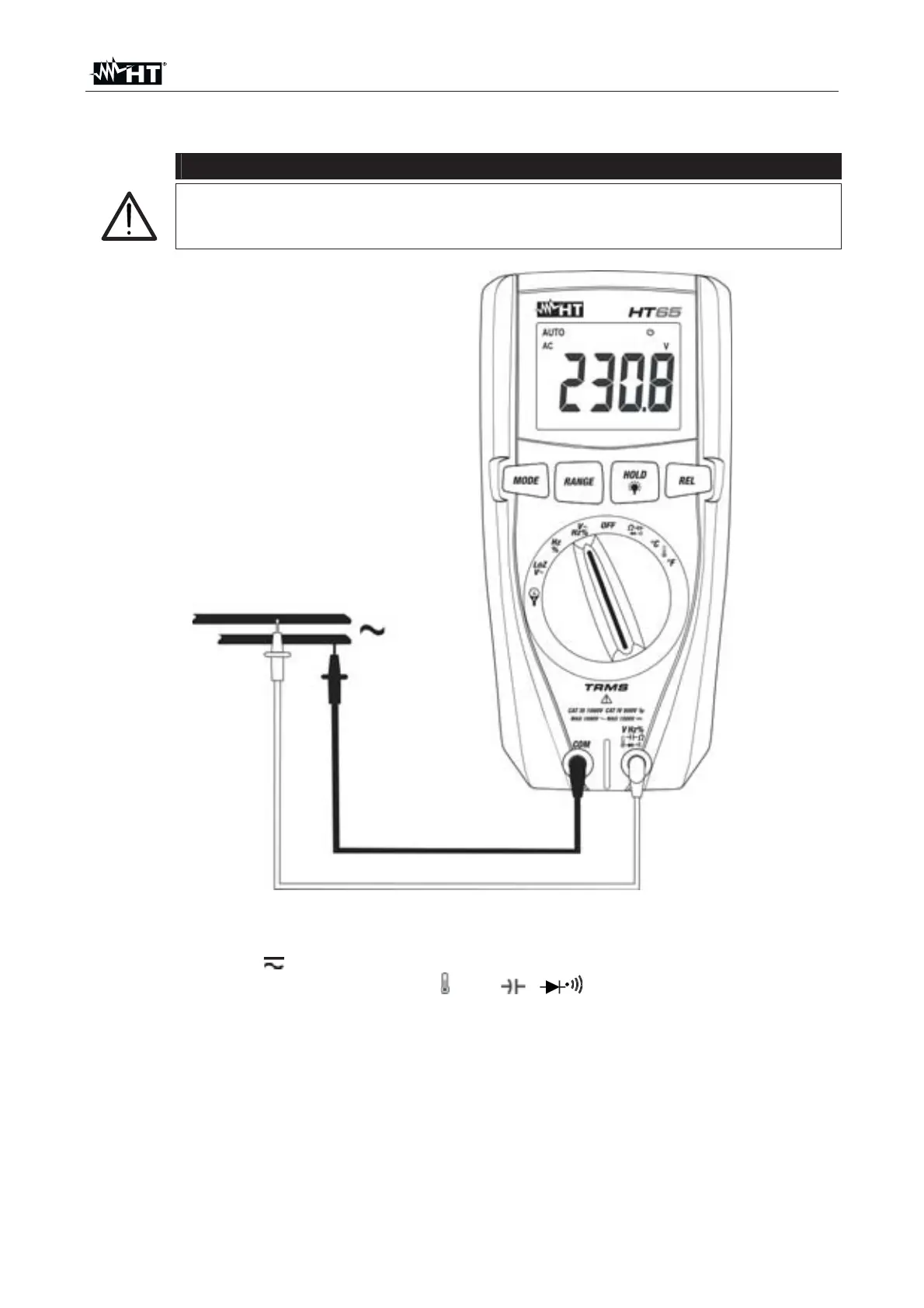

Fig. 3: Use of the instrument for AC voltage measurement

1. Select positions V Hz%

2. Insert the red cable into input terminal

Hz%V

and the black cable into input

terminal COM.

3. Position the red lead and the black lead respectively in the spots of the circuit to be

measured (see Fig. 3). The display shows the value of voltage.

4. If the display shows the message "OL", select a higher range.

5. Press and hold the MODE key to select measurements

“Hz” o “%” in order to display

the values of frequency and duty cycle of input voltage. Press and hold again the

MODE key to go back to voltage measurement

6. To use the HOLD, RANGE and REL functions, see § 4.2
