NEPTUNE
EN - 22
9. In the screen in Fig. 23 – left side, the value of insulation resistance is present at the
end of measurement with positive result “OK” (value higher than the set threshold). In
the screen in Fig. 23 – right side, the value of insulation resistance is present at the end
of measurement with negative result “NOT OK” (value lower than the set threshold).
10. Press keys / or /ZERO to display the real applied voltage, the value of
parameter PI or the value of parameter DAR (see Fig. 24).

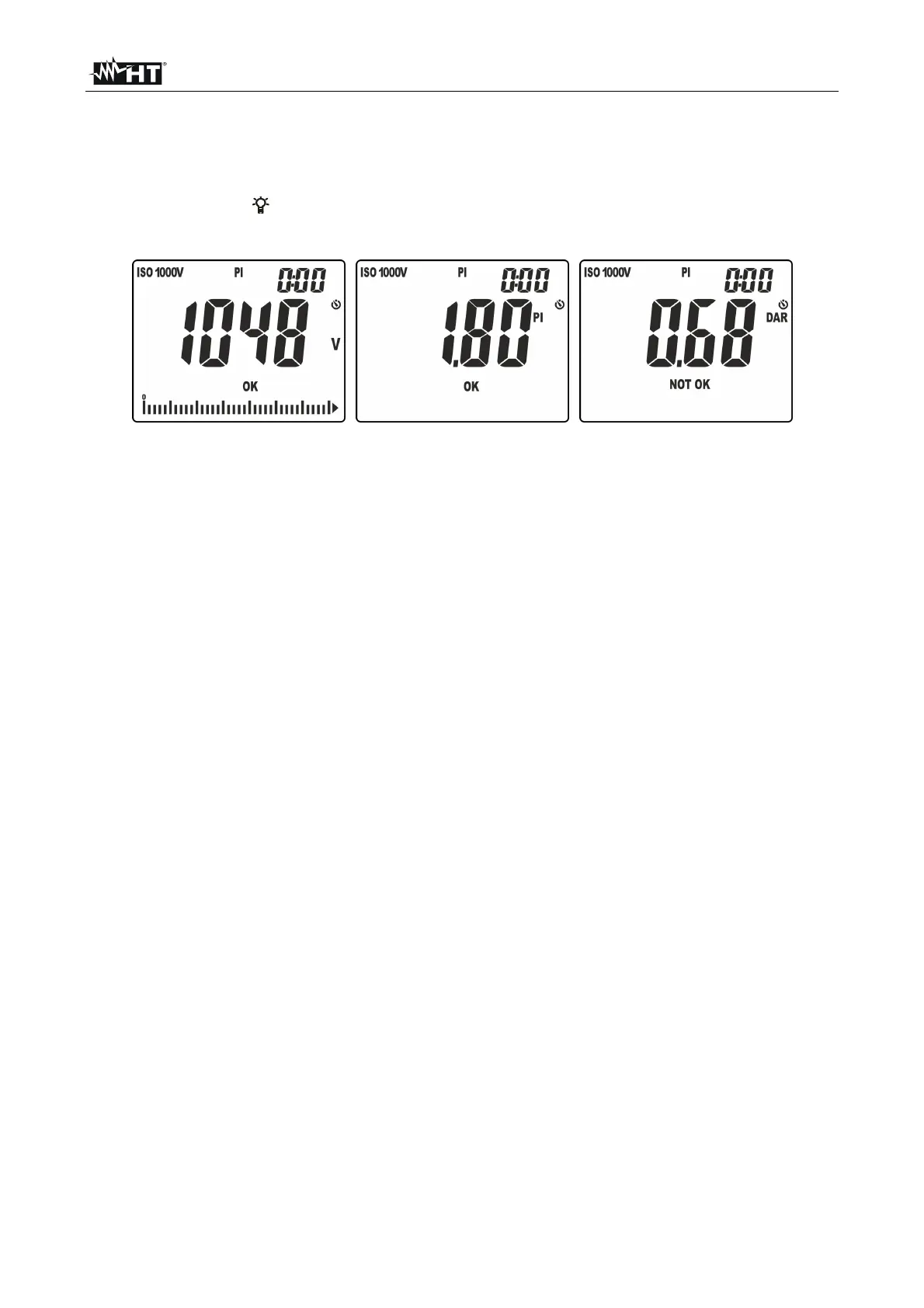

Fig. 24: Results of PI and DAR measurements
