3.6 Wheel brake
To lock the back wheels, press the brake arm down with your foot, this keeps the wheels
locked using spring power, see Figure3-5, page12. To release the brake, do the
opposite and lift the brake arm using your foot.

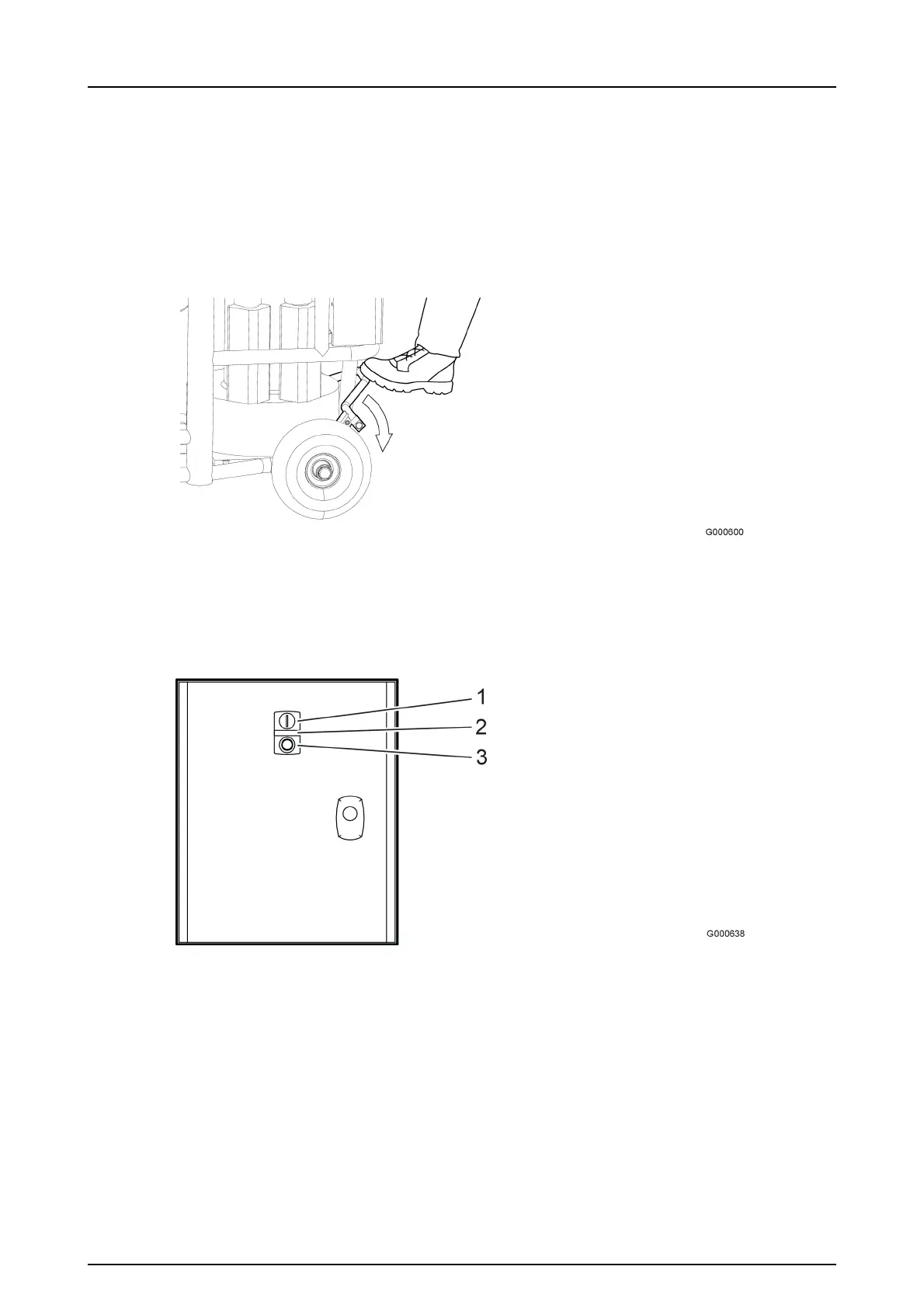

Figure 3-5. Foot brake
3.7 Description of controls - Keypad
The illustrations show the keypad on the dust extractor and the keypad for remote start.
Figure 3-6. Keypad on the dust extractor
1. I (ON)- Start the dust extractor: Press the button to start the dust extractor.
2. LED Light- Tripped motor protection: When the light is illuminated, the dust
extractor's motor protection has tripped. To reset the motor protection, see
Resetting the motor protection, page42.
3. O (OFF)- Switch off the dust extractor: Press the button to switch off the dust
extractor.
