HTC 80 iD - Connection of Hoses to the Dust Extractor

HTC 80 iD Usage
1.1 19

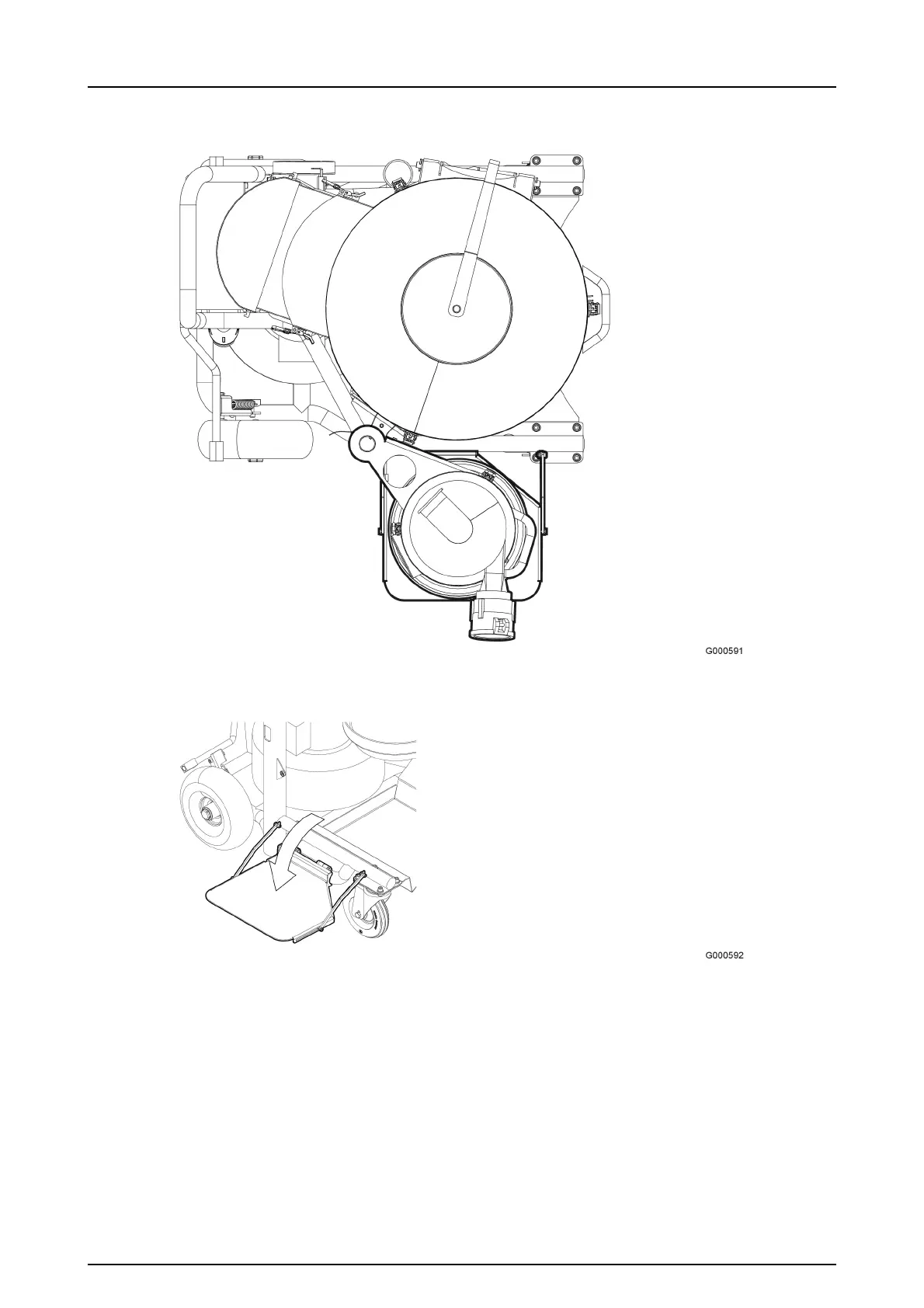

Figure 4-6. Operating position 2 pre-separator
Figure 4-7. Folding collection plate for Longopac
4.4 Connection of hoses to the dust extractor
HTC 80 iD is equipped with a 3" Camlock femal connector, se pos 9 Figure3-1, page
8, for quick, easy and safe connection of the suction hose between the grinding
machine and dust extractor or other accessory that is to be used for dust collection.
Camlock is a standardised quick release coupling that is used for various fluids.
