1. Light emitting diode 5 Squelch: Indicates whether there is a radio signal for the
actual frequency band or not.
2. Light emitting diode 6 Status: Indicates that the receiver has received
information from an encoded transmitter.
3. Light emitting diode 7 Learn: Indicates whether the receiver is in the learn mode
or not.

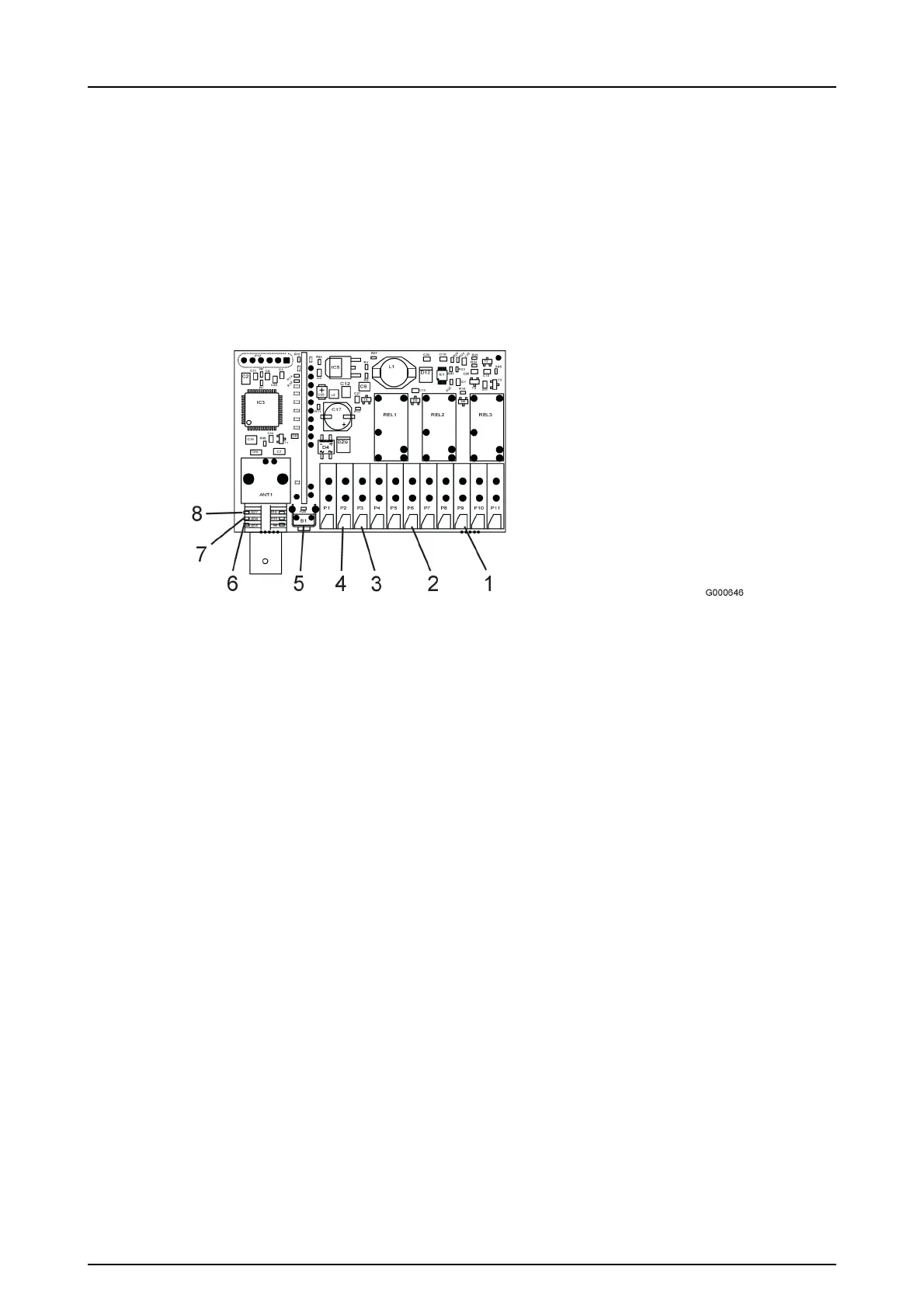

Figure 6-8. The receiver's connections and button
1. Connection to Relay 3
2. Connection to Relay 2
3. Connection to Relay 1
4. Power unit connection 12-24 V AC/DC
5. Learn/Erase button
6. Light emitting diode 5 Squelch
7. Light emitting diode 6 Status
8. Light emitting diode 7 Learn
6.6.3 Basic configuration
1. Open the cover on the receiver by pressing in the heels on the sides, e.g. with a
screwdriver or similar, and remove the cover.
2. Press the Learn/Erase button, until light emitting diode 7 shines. The Learn mode
is activated for 10 seconds (as long as light emitting diode 7 shines). Press button
1 on the transmitter, if buttons 1-3 are to be used for activating relays in the
receiver.
3. Light emitting diode 7 on the receiver blinks 3 times if the learn succeeded.
