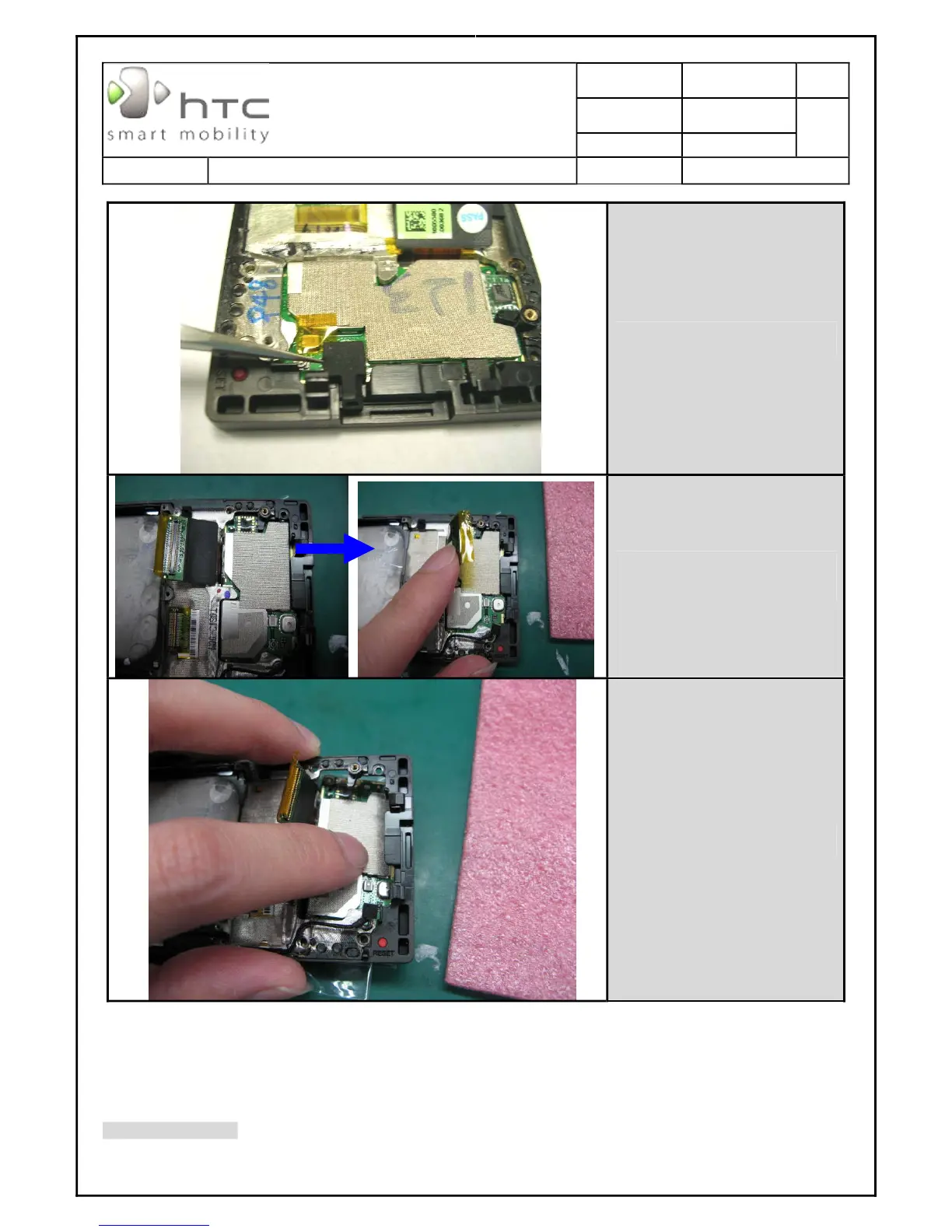

REMOVE THE MICROPHONE RUBBER
FROM THE NAVI BOARD
BEFORE DISASSEMBLE THE NAVI
MODULE PUSH THE FPC CABLE TO
UPEER DIRECTION
PRESS THE NAVI BOARD LIGHTLY TO
PUSH DOWN FOR DISASSEMBLY
