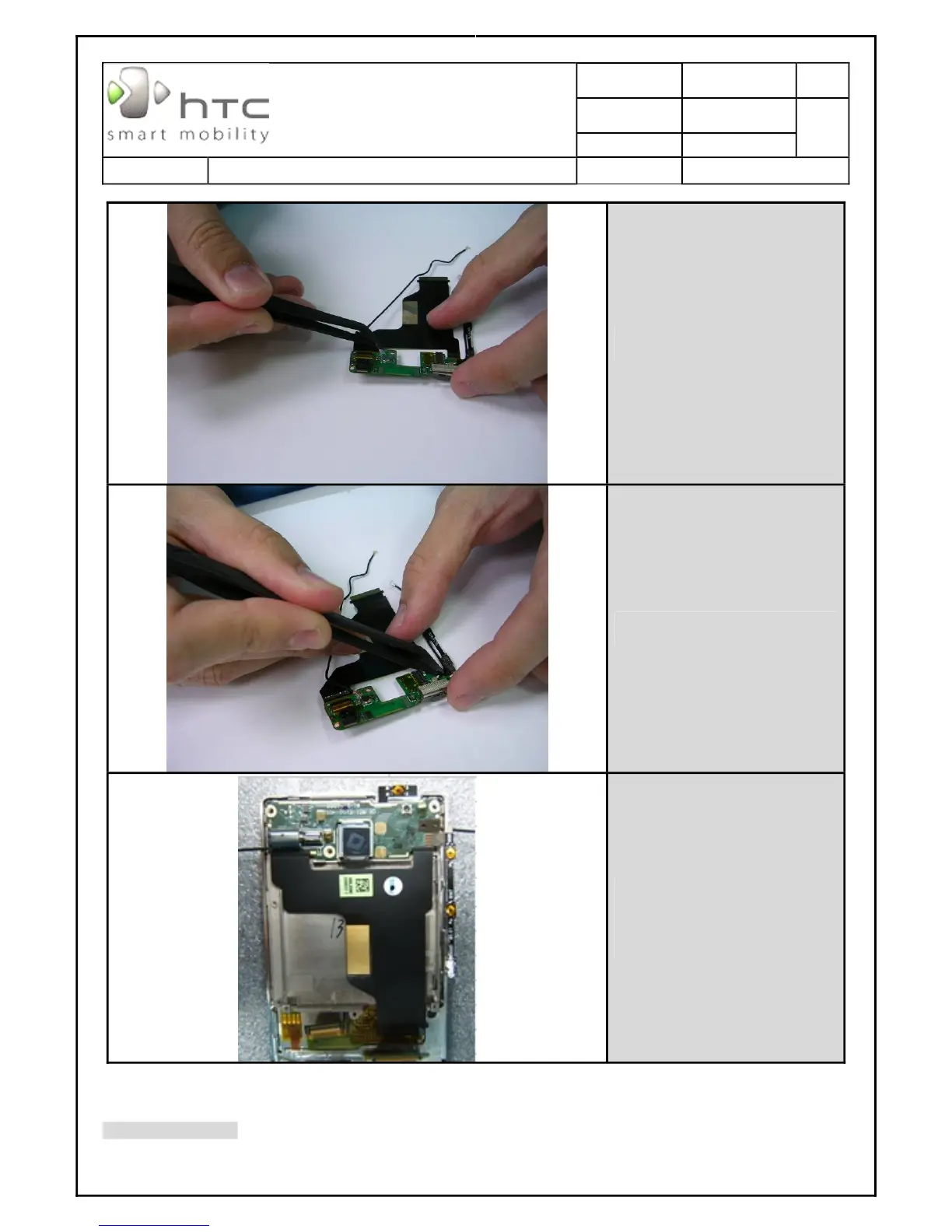

INSTALL THE WIFI/BT COAXIAL CABLE
INTO THE RIGID FLEX BOARD
INSTALL THE GPS COAXIAL CABLE
INTO THE RIGID FLEX BOARD
RIP THE TAPE OF MAIN CAMERA AND
RIGID FLEX BOARD THEN ASSEMBLE
THE RIGID FLEX BOARD ON THE
FRAME
