HTP PH100 User Manual

LP-179 Rev. 6.7.16
12
F
G
E
PHOENIX WATER HEATER AND SANITIZER BOOSTER DIMENSIONS
MODEL* GAL. A B C D E F G H J K L M
PH100-55/130-55/160-55/199-55 55 23" 52" 45" 5" 14-3/4" 16-1/4" 5-1/4" 1" 45" 34-1/4" 45" 27-1/2"
PH100-80/130-80/160-80/199-80 80 23" 72" 64" 5-3/4" 17" 18-1/2" 7-3/4" 3-1/4" 64" 34-1/4" 64" 29-3/4"
PH100-119/130-119/160-119/199-119 119 27" 74" 66-1/4" 7-1/2" 18-3/4" 21-1/2" 10-1/2" 5" 66-1/2" 38-1/2" 66-1/2" 31"
PH199-55SA 55 23" 52" 45" 5" 14-3/4" 16-1/4" 5-1/4" 1" 45" 34-1/4" 45" 27-1/2"
PHOENIX WATER HEATER SPECIFICATIONS
MODEL* INPUT MODULATION
AIR INTAKE/
EXHAUST VENT
SIZE
INLET/
OUTLET
SIZE
AUXILIARY
CONN.
GAS
LINE
CONN.
SYSTEM
RELIEF
PIPE SIZE
SHIPPING
WEIGHT
MAX.
TEMPERATURE
LIMIT
PH100-55 35,000 - 100,000 2" 1" NPT 1" FNPT 3/4" 3/4" 175 LBS. 160
PH130-55 35,000 - 130,000 2" 1" NPT 1" FNPT 3/4" 3/4" 175 LBS 160
PH160-55 40,000 - 160,000 3" 1" NPT 1" FNPT 3/4" 3/4" 175 LBS. 160
PH199-55 40,000 - 199,000 3" 1" NPT 1" FNPT 3/4" 3/4" 175 LBS 160
PH100-80 35,000 - 100,000 2" 1-1/2" NPT 1" FNPT 3/4" 3/4" 235 LBS. 160
PH130-80 35,000 - 130,000 2" 1-1/2" NPT 1" FNPT 3/4" 3/4" 235 LBS 160
PH160-80 40,000 - 160,000 3" 1-1/2" NPT 1" FNPT 3/4" 3/4" 235 LBS. 160
PH199-80 40,000 - 199,000 3" 1-1/2" NPT 1" FNPT 3/4" 3/4" 235 LBS. 160
PH100-119 35,000 - 100,000 2" 1-1/2" NPT 1" FNPT 3/4" 3/4" 405 LBS. 160
PH130-119 35,000 - 130,000 2" 1-1/2" NPT 1" FNPT 3/4" 3/4" 405 LBS. 160
PH160-119 40,000 - 160,000 3" 1-1/2" NPT 1" FNPT 3/4" 3/4" 405 LBS. 160
PH199-119 40,000 - 199,000 3" 1-1/2" NPT 1" FNPT 3/4" 3/4" 405 LBS. 160
PHOENIX SANITIZER BOOSTER SPECIFICATIONS
PH-199-55SA 40,000 - 199,000 3" 1" 1" FNPT 3/4" 3/4 175 LBS 184
LP-179-B
09/03/15
*ALL DIMENSIONS ARE APPROXIMATE, A SUFFIX OF "LP" DENOTES PROPANE GAS
EXHAUST VENT
INTAKE
GAS LINE
AIR
CONDENSATE LINE
FRONT
H
UPPER TEMP
SENSOR
CUT-OFF
HIGH LIMIT
LOW WATER
LOWER TEMP
SENSOR
OUTLET
HOT WATER
SAFETY
COLD WATER
INLET
LEFT SIDE
A
B
C
D
AUX. CONNECTION
TEMP/PRESSURE
RELIEF VALVE
RIGHT SIDE
J
K
L
M

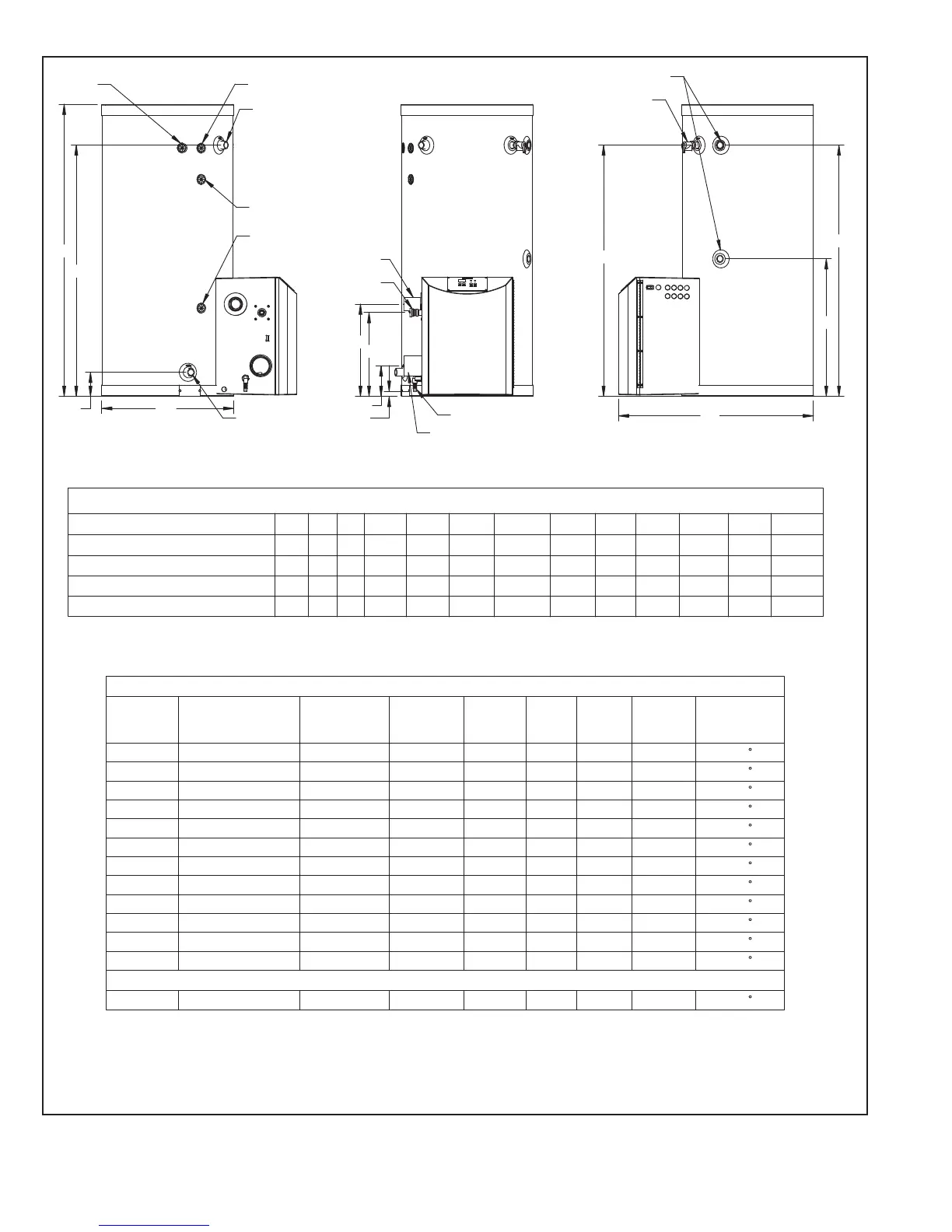

Figure 3 - Water Heater Dimensions - NOTE: All Dimensions Are Approximate
