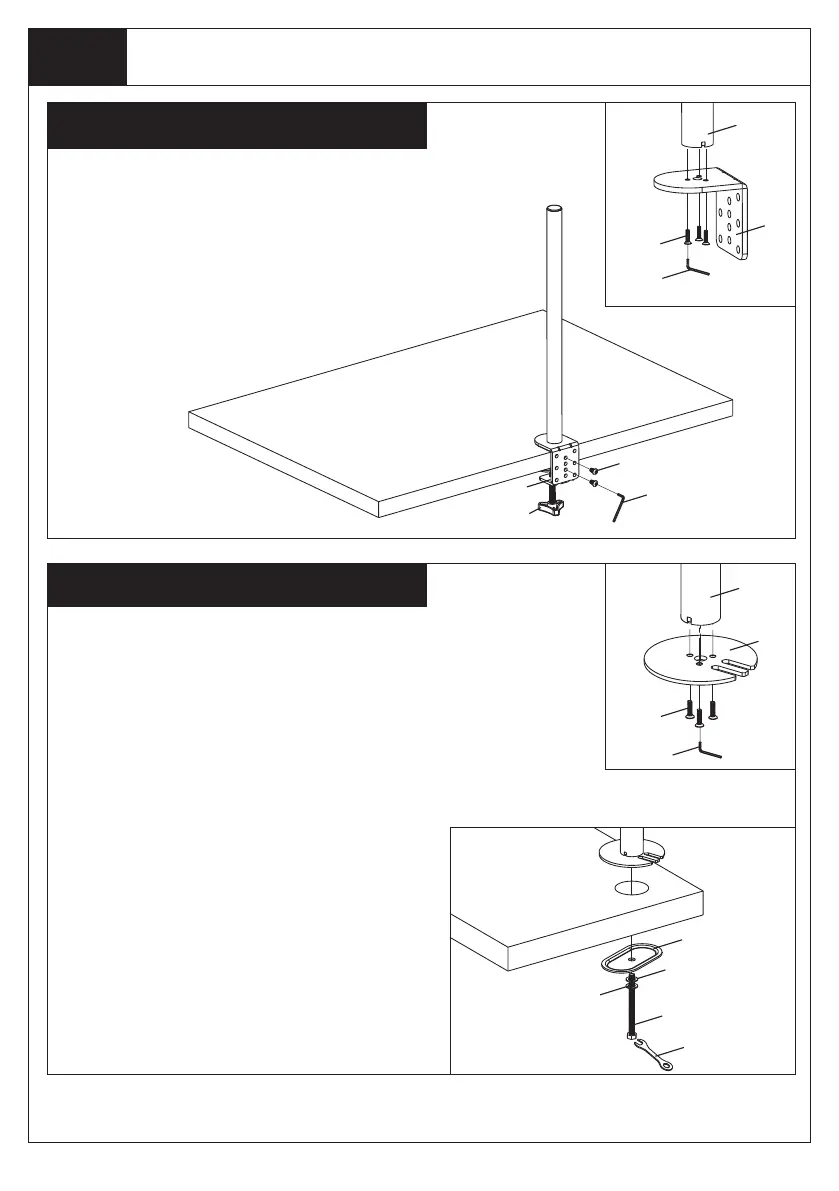

Step 1
Install the Pole to the Desktop
Option B: Grommet Base Assembly
a
Figure 3
m
f
Figure 4
j
i
p
k
l
Option A：Desk Clamp Assembly
a
Figure 1
f
c
Figure 2
g
o
b
Plastic Knob
1.Use 3 pieces M5x14 bolts(f) to install the C Clamp
brace(c) to the Pole. Use the Allen Key(o) to tighten
the bolts. See Figure 1.
2.According to the thickness of the desktop, Use 2
pieces M8x12 bolts(g) to install the C clamp(b) to C
clamp brace (c). Use Allen Key(o) to tighten the bolts
and then tighten the C clamp to the desktop by
adjusting the plastic knob. See Figure 2.
Existing Grommet Hole Installation
If the existing grommet hole comes with a plastic
protector, remove it to ensure a flat surface
before installing the desk mount
1.Use 3 pieces M5x14 bolts(f) to install Grommet
Base Plate(m) to the Pole(a). Use the Allen Key
to tighten the bolts. See Figure 3.
2.Position the Pole(a) on the mounting surface
and under the desktop comes the Support Plate
(j), M10 Washer(k), Spring Washer (l). Use the
provided Wrench(p) to fasten the M10 Bolt. See
Figure 4.
o
o
