Huawei AP4030DN Hardware Installation And Maintenance Guide

Huawei AP4030DN
Hardware Installation and Maintenance Guide
5 Appendix
Issue 02 (2015-05-18)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
48
Requirements for Cable Routing

To protect cables, remove the burrs in the cable through-holes or install protective rings
in the holes.

To ease the connection and to avoid stress, keep slack at cable joints. After connecting
multiple cables to a connector that has multiple interfaces, keep the cables slack to avoid
stress generation.

Bind or clean cables gently because cable distortion affects signal quality.

Keep cables away from moveable components such as doors.

Sharp objects must not be touched in cable wiring to ensure that cables are not damaged.

To protect power cables, power cables of the active and standby power modules are laid
separately.
Installing Power Adapters
Installing the OT Terminal
Procedure

Install an OT terminal.
1. Align the hole of the OT terminal (conductor upward) with a connecting hole, as shown
in Figure 5-42.

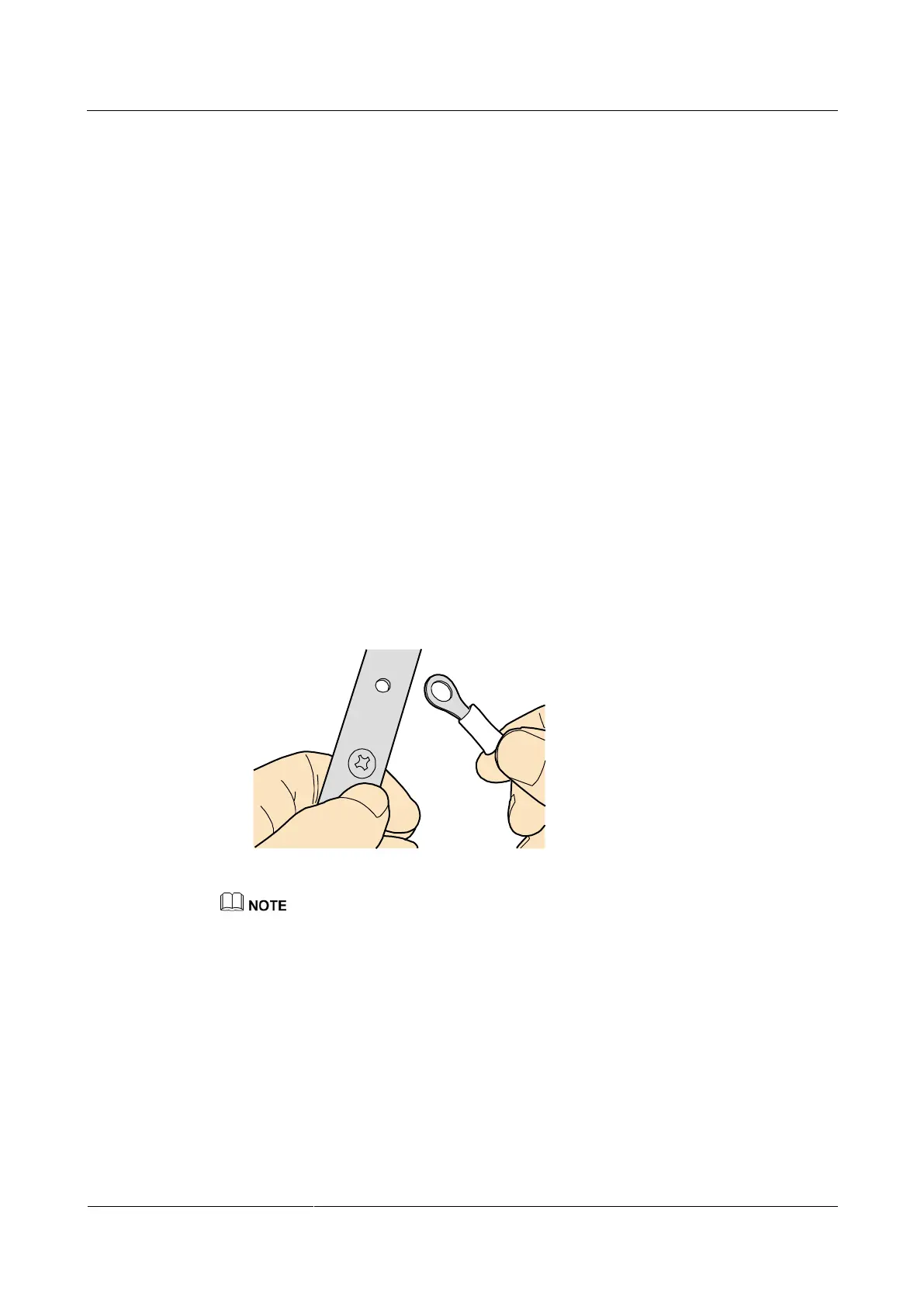

Figure 5-42 Aligning the OT terminal with a connecting hole
When you install an OT terminal, the crimping sleeve is installed as shown in Figure 5-43, where A is
correct and B is wrong.

Huawei AP4030DN Specifications

General

2.4 GHz	Yes
Bandwidth	5 GHz
Frequency band	2.4, 5 GHz
Number of users	256 user(s)
Operating modes	Access Point (AP)
Channels quantity	13 channels
Number of VLAN IDs	4094
Transmitting power	20 dBmW
Scheduling features	Airtime scheduling, Queue mapping & scheduling
Control channel mode	Tagged & untagged
Fit AP mode features	802.11k & 802.11v smart roaming, AC dual-link backup, AC unified management & maintenance, Dual-MPP mesh networking, Mesh networking, Hotspot 2.0, Plug and Play, Service holding upon CAPWAP link disconnection, Unified authentication on the AC, WDS zero-configuration deployment, Wireless distribution system (WDS)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Rate adjustment type	Automatic & manual
Virtual LAN features	SSID-based VLAN assignment
Data unit aggregation	A-MPDU (Tx/Rx), A-MSDU (Rx only)
WLAN channel features	WLAN channel management, WLAN channel rate adjustment
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1167 Mbit/s
Location services supported	AeroScout tags, Ekahau tags, Wi-Fi terminals
Number of virtual APs (VAPs)	16
Wi-Fi Multimedia (WMM) features	WMM parameter management for each radio, WMM profile based packet scheduling, WMM profile based priority mapping, WMM power saving
Maximum data transfer rate (5 GHz)	867 Mbit/s
AC input voltage	12 V
Power consumption (max)	10.2 W
Internal	No
Placement	Table
Product color	White
LED indicators	Status
International Protection (IP) code	IP41
Flash memory	32 MB
Internal memory	256 MB
Security algorithms	802.1x RADIUS, WAPI, WEP, WPA, WPA2, WPA2-PSK
Device type identification	DHCP options, Organizationally Unique Identifier (OUI), User Agent (UA)
Service Set Identifier (SSID) features	Hidden SSID
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	2
Operating altitude	-60 - 5000 m
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Local AP management	Serial port, Telnet
Antenna features	Integrated antenna
Antenna gain level (max)	6 dBi

Weight and Dimensions

Width	180 mm
Height	39.5 mm
Weight	400 g
