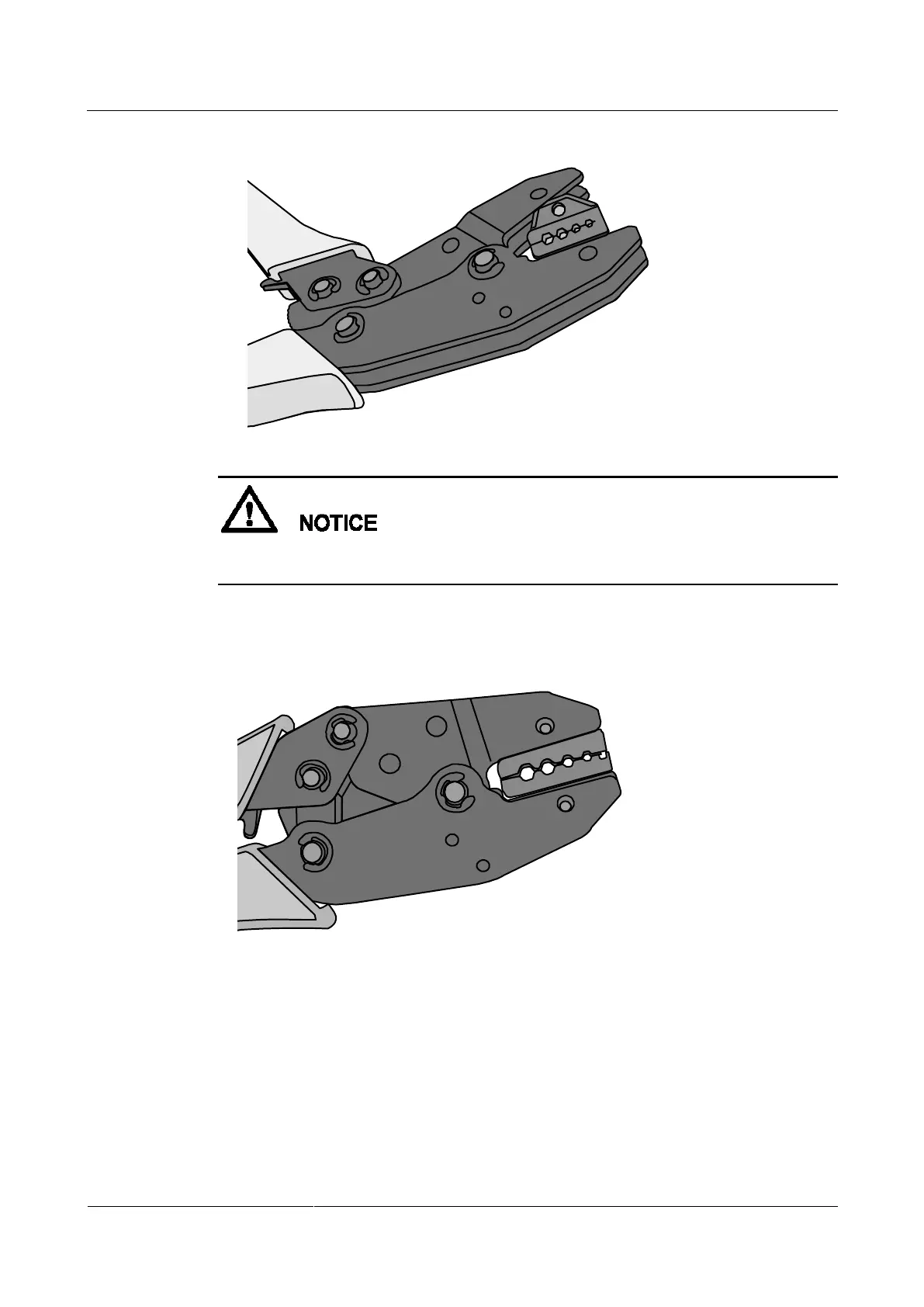

Figure 5-75 Installing a new mould in the COAX crimping tools
Keep the short side of the mould inwards and the long side outwards, with the teeth of the
mould aligning from the larger size to the smaller size.
Step 5 Hold the handles of the COAX crimping tools tightly to match the mould and the jaw
completely. Align the screw holes, as shown in Figure 5-76.
Figure 5-76 Aligning the screw holes
Step 6 Hold the handles of the COAX crimping tools with one hand. Tighten the two fastening
screws in the clockwise direction. Figure 5-77 and Figure 5-78shows the mould installed in
the COAX crimping tools.
