Huawei AP4030DN
Hardware Installation and Maintenance Guide
5 Appendix
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

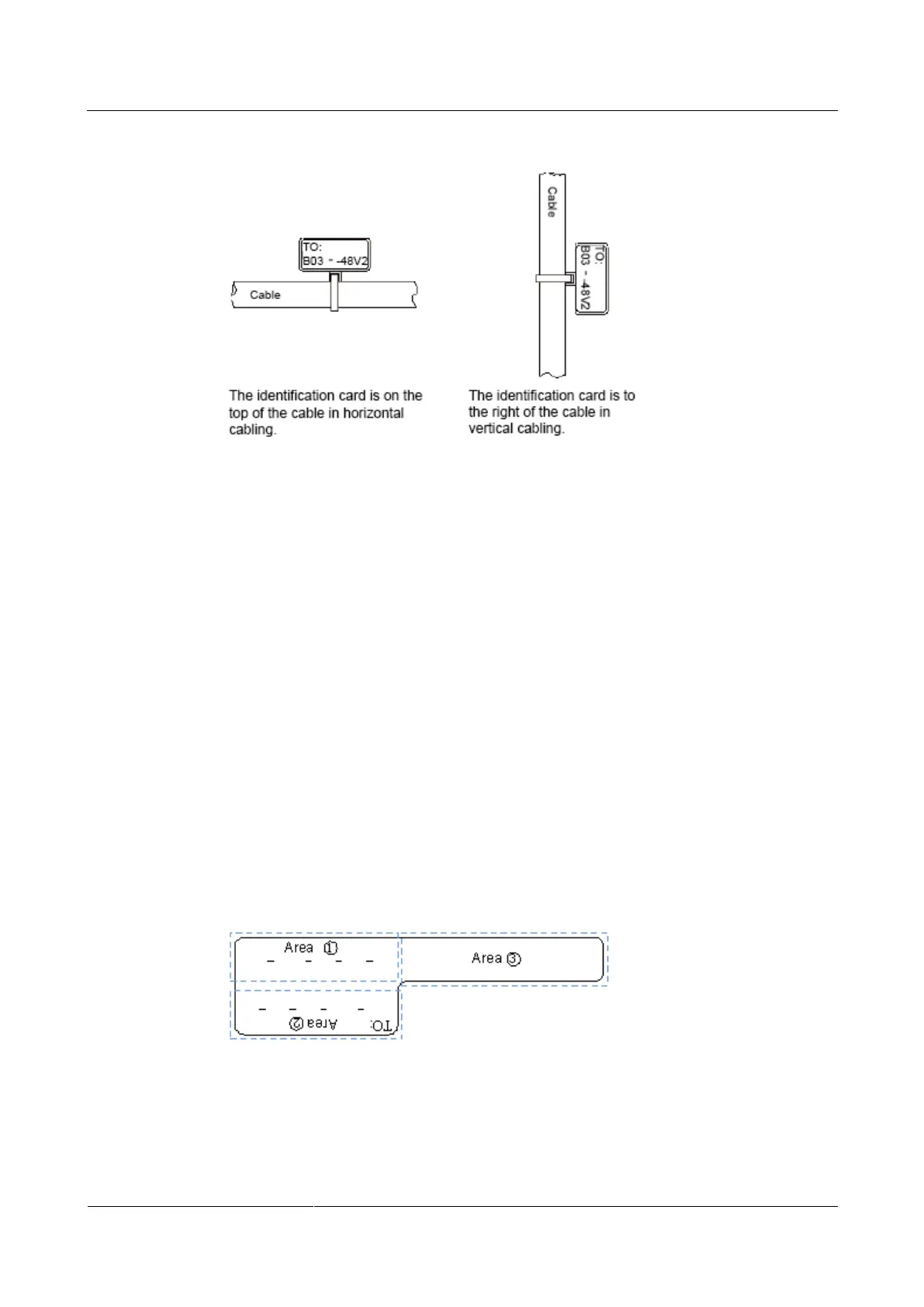

Figure 5-87 Binding the label for the power cable
Contents of Engineering Labels
Contents of Labels for Power Cables
Labels for power cables are only affixed on one side of the identification plates. On the labels,
there is information (the part after the mark "TO:") about the location of the device on the
other end of the cable, like the location of control cabinet, distribution box or power socket.
Contents of Labels for Signal Cables
The two sides of the label affixed on the signal cable carry information about the location of
the ports connected to both ends of the cable. Figure 5-88 shows the information on both sides
of the labels affixed to the signal cables.
Area 1 contains the location information of the local end of the cable.
Area 2 (with the mark "TO:") contains the location information of the opposite end of the
cable.
Area 3 has been folded up inside the label.
Figure 5-88 Printed parts on the label for signal cables
Seen from the cabling end of the equipment, the text part of the label is on the right side of the
cable. The side with "TO:" that is facing outside carries the location information of the
opposite end; and the other side carries the location information of the local end.
