Huawei Ascend Maintenance Manual

Y210 Mobile Phone
Maintenance Manual
3 Exploded View
Issue 1.0 (2012-11-28)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
5
3 Exploded View

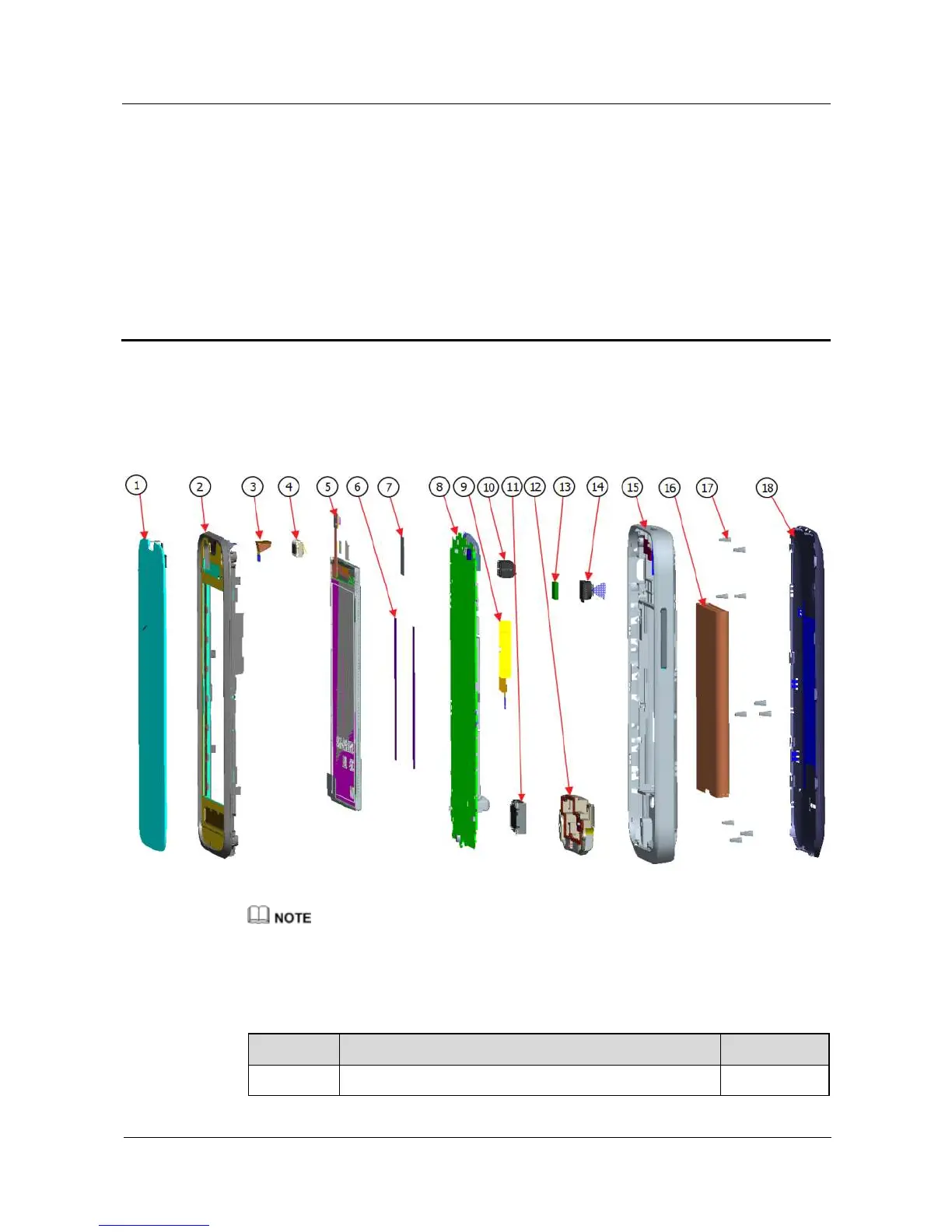

Figure 3-1 shows the exploded view of the Y210.
Figure 3-1 Exploded view
The components listed in the following table are structural parts of the phone and cannot be used as
reference to request spare parts.
Table 3-1 lists the components in the exploded view.
Table 3-1 Components in the exploded view
No.
Description
Quantity
1
Touch panel
1
