Y210 Mobile Phone
Maintenance Manual
9 Principles and Failure Analysis
Issue 1.0 (2012-11-28)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
49
9.4.8 Accelerometer

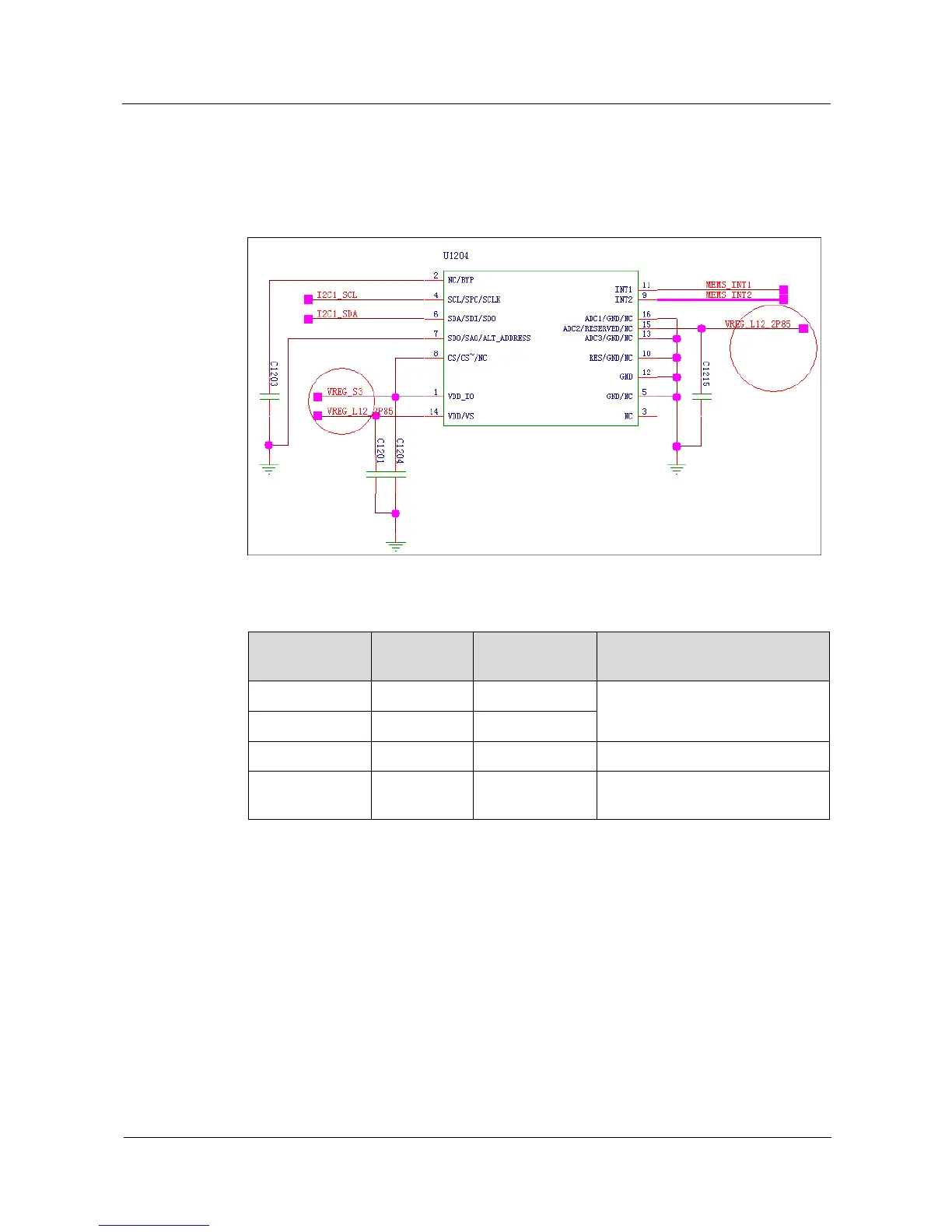

Figure 9-25 Accelerometer circuit
Table 9-14 Accelerometer pins
Component
Pin
Network
MSM7225A
Pin
Description
SCL
I2C1_SCL
GPIO_131
I2C bus
SDA
I2C1_SDA
GPIO_132
INT1
MEMS_INT1
GPIO_28
Accelerometer interrupt signal
INT2
MEMS_INT2
GPIO_111
Accelerometer interrupt signal
(sleep)
