1.3.2 Rear Panel

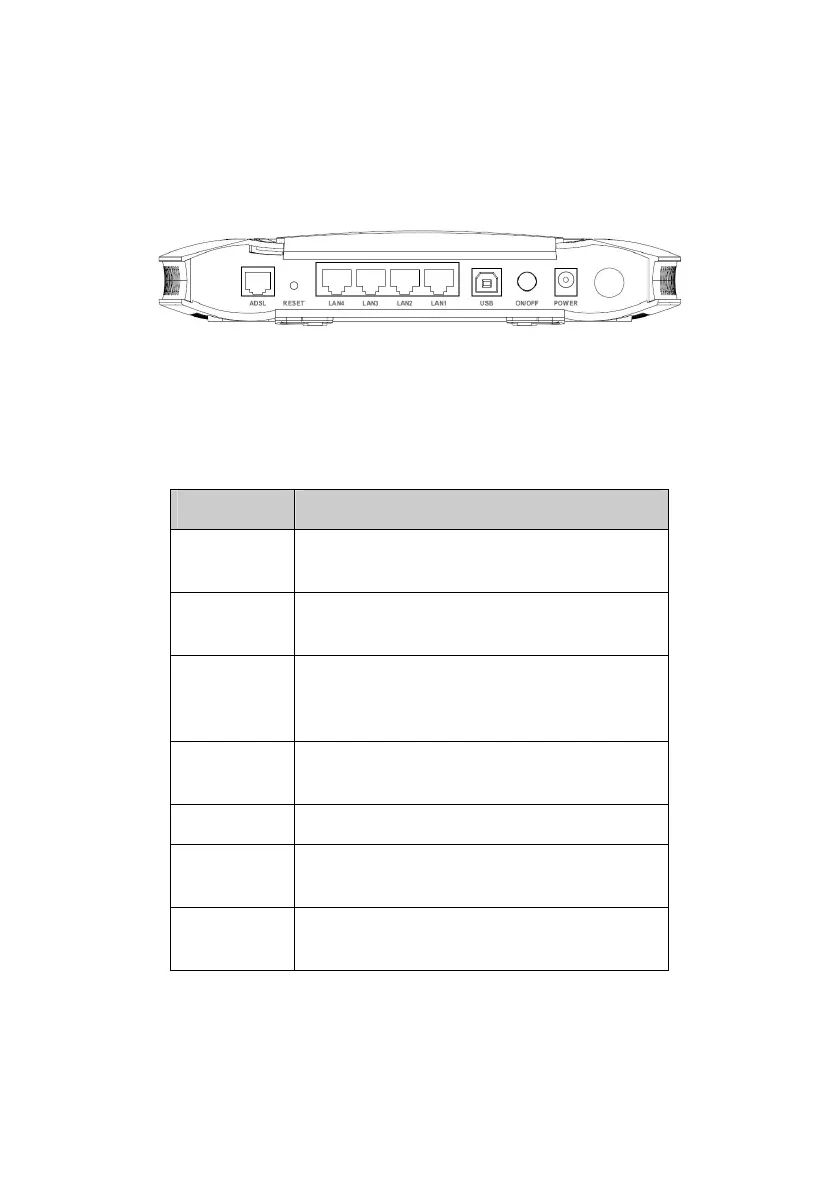

Figure 1-4 shows the rear panel of HG520.
Figure 1-4 Rear panel of HG520
For description of external interfaces and buttons on the rear
panel, see Table 1-2.
Table 1-2 Description of external interfaces
Port/Button Description
ADSL It is the RJ-11 port used to connect with
the phone jack on the wall or a splitter.
Reset It is used to restore the default settings of
HG520.
LAN1-4 It is the RJ-45 port used to connect with
the Ethernet port of a computer or a LAN
hub.
USB It is used to connect with the USB
interface of your computer.
ON/OFF It is used to switch on/off HG520.
Power It is used to connect with the power
adapter.
Antenna It is used for wireless connection with the
LAN devices.
