HUAWEI MU736 HSPA+ M.2 Module
Hardware Guide
Description of the Application Interfaces
Issue 05 (2014-01-14)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
30
No.
GPS_DISABLE#
Function
3
Floating
GPS function is determined by software AT
command. Default enabled.

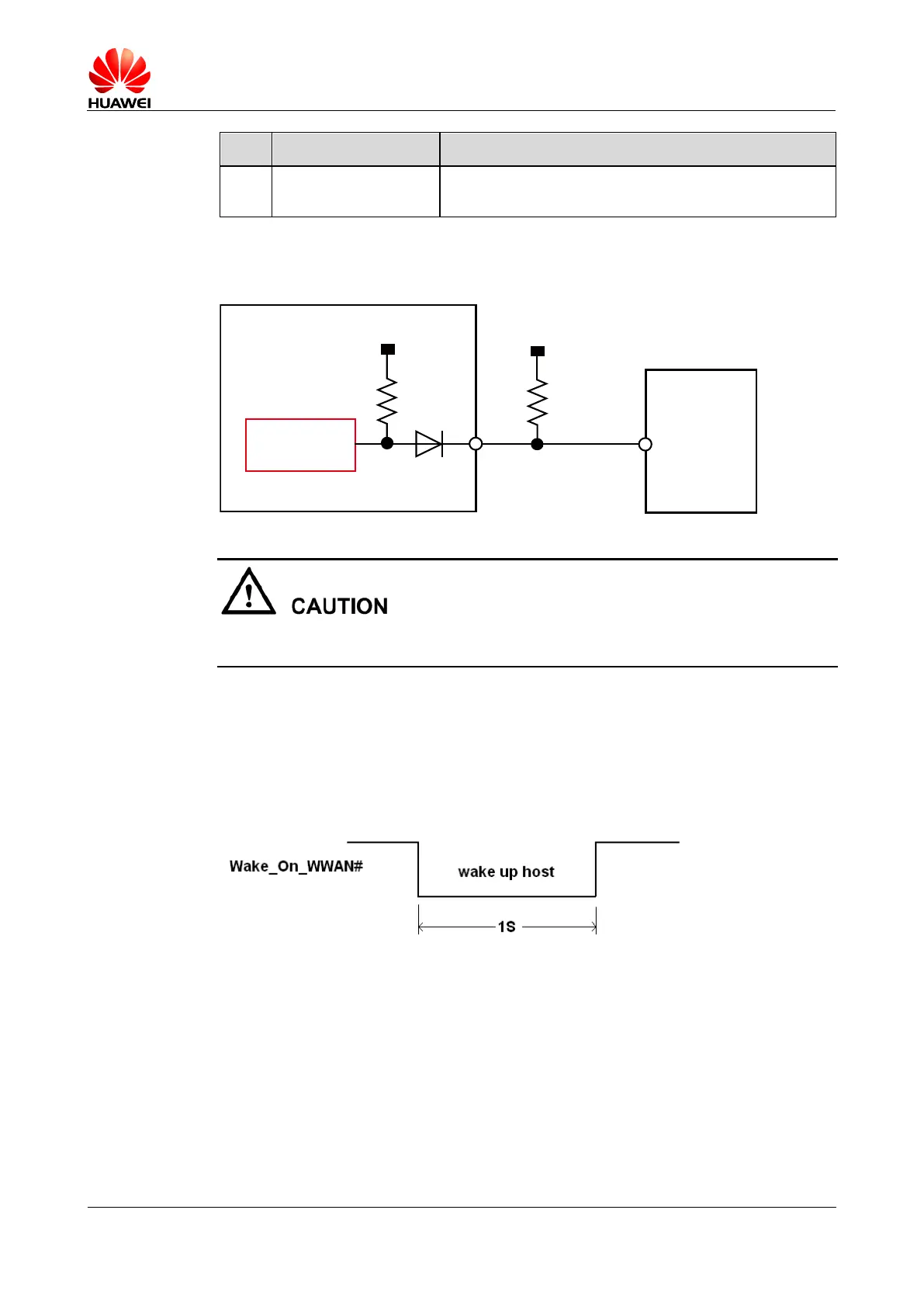

Figure 3-17 Connections of the GPS_DISABLE# pin
Module
(Modem)
BB Chip
1.8V
GPS_DISABLE#
VCC From Host
10 kΩ
Host
It is recommended not to add a diode on the GPS_DISABLE# pin outside the MU736
module.
3.4.7 Wake_On_WWAN# Pin
MU736 provides an open drain output Wake_On_WWAN# pin to wake host. It is low
active.
Figure 3-18 Wave form of the Wake_On_WWAN# pin
