Huawei NetCol8000-A - 6 Connecting Water Pipes; 6.1 Connecting the Humidifier Water Inlet Pipe; 6.2 Connecting the Drainpipe

16

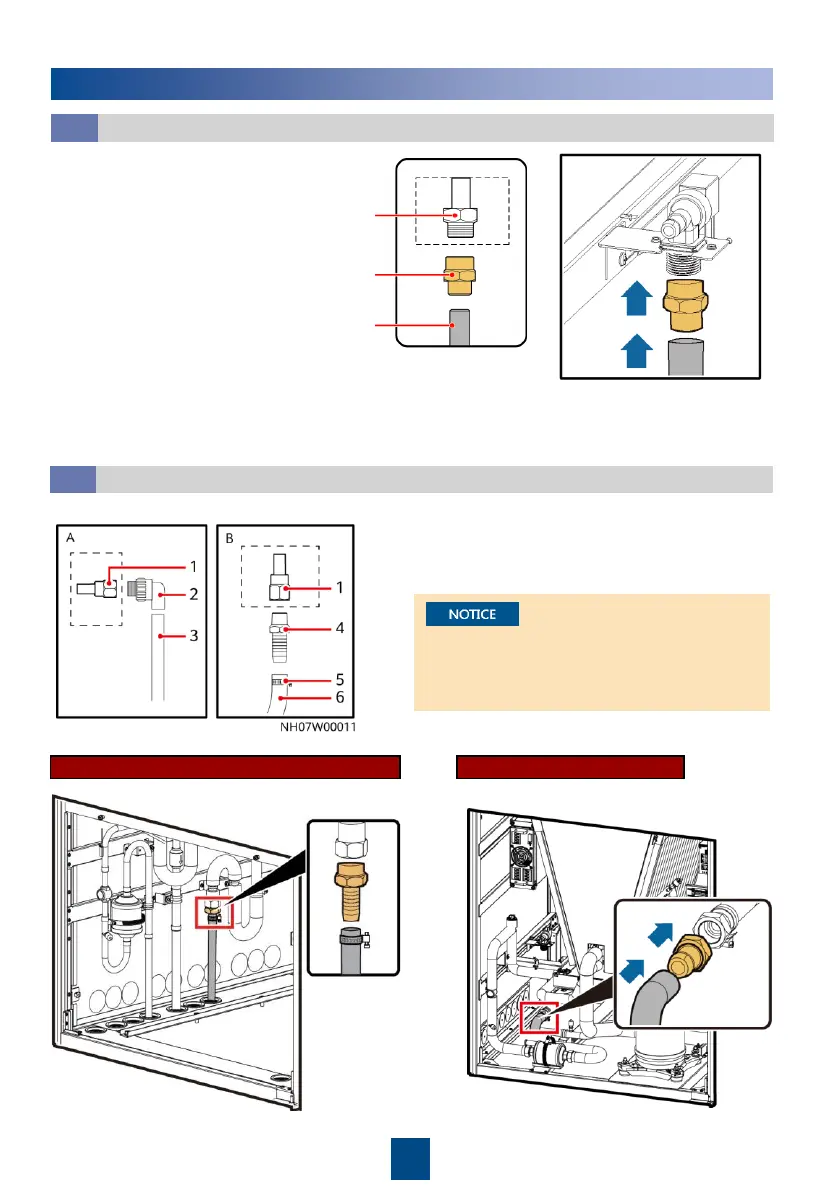

Connecting the Drainpipe
6.2
Connection method
(1) Connector with inner
screw threads
(4) Pagoda connector
(2) Rigid pipe adapter
(5) Hose clamp
(3) Rigid pipe
(6) Hose
The drainpipe from indoor unit to condensate
branch pipe must have gradients (＞1: 100).
Significant upward trend and stagnant water
is not allowed along the pipe.
NetCol8000-A045 UpflowNetCol8000-A045/A055/A090 Downflow
6
Connecting Water Pipes
Connecting the Humidifier Water Inlet Pipe
6.1
G 3/4 inch reserved connector
with outer screw thread
G 3/4 inch adapter with inner screw thread
1
Matched with the adapter, the pressure
resistance should be at least 0.7 MPa
Note 1:
1. When plastic materials such as PA66 are used, the recommended torque is 5 N.m.
2. When metal materials are used, the recommended torque is 10 N.m. A sealing washer
must be used when an union is used.
