23

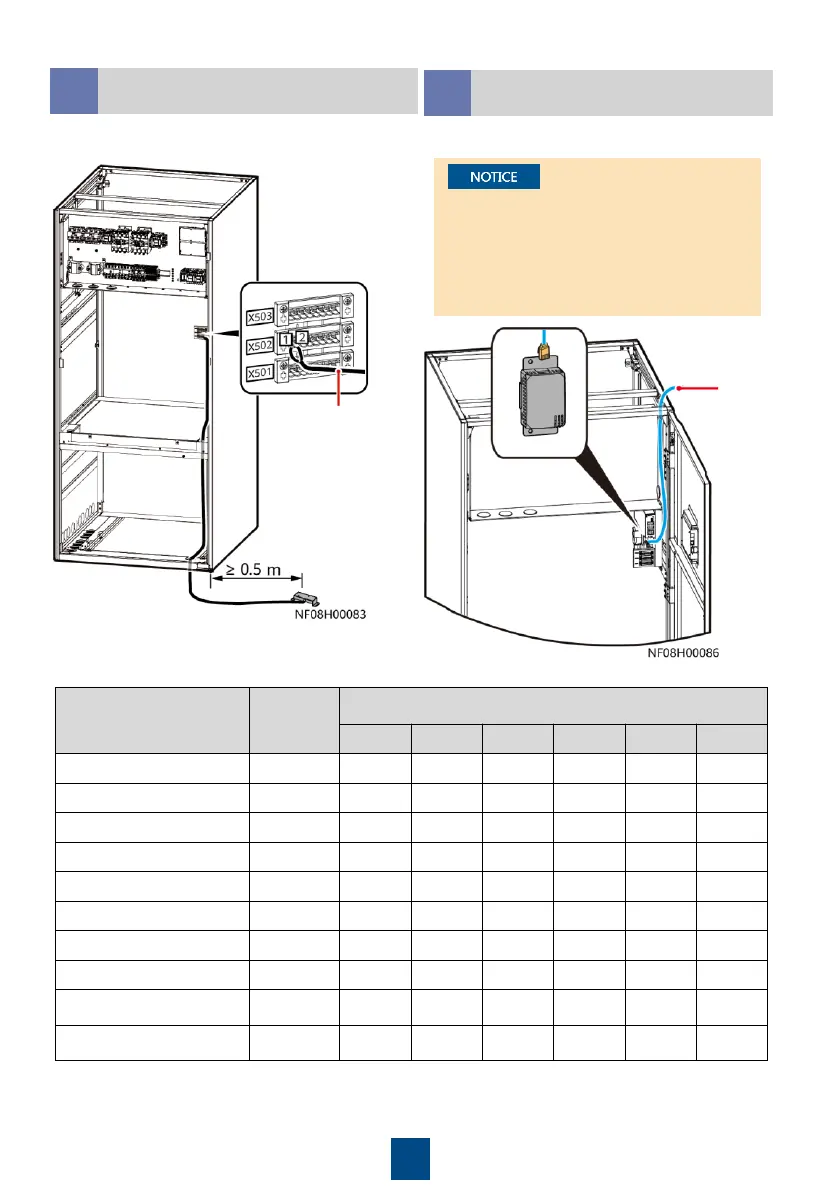

(Optional) Connecting the
Water Sensor
7.7
Water sensor cable
(Optional) Connecting the
T/H Sensors Outside Cabinets
7.8
1. Connect the T/H sensor cables.
The T/H sensors in the aisles should be
installed on the door frame of IT
cabinets, and1.5 m (33U) away from the
ground. After the sensor is secured, set
the sensor address according to the
following table.
T/H
Sensors
Outside
Cabinets
Name Address
DIP Switch ID
1 2 3 4 5 6
15 ON ON ON ON OFF OFF
Hot aisle 1 temp/humid 21 ON OFF ON OFF ON OFF
Hot aisle 2 temp/humid 22 OFF ON ON OFF ON OFF
Hot aisle 3 temp/humid 23 ON ON ON OFF ON OFF
Hot aisle 4 temp/humid 24
OFF OFF OFF ON ON OFF
Hot aisle 5 temp/humid 25
ON OFF OFF ON ON OFF
2. Set the DIP switches on the T/H sensors.
