Huawei OceanStor S2600 - Exporting Operating Data; Figure 2-1 Export Configuration Data Dialog Box

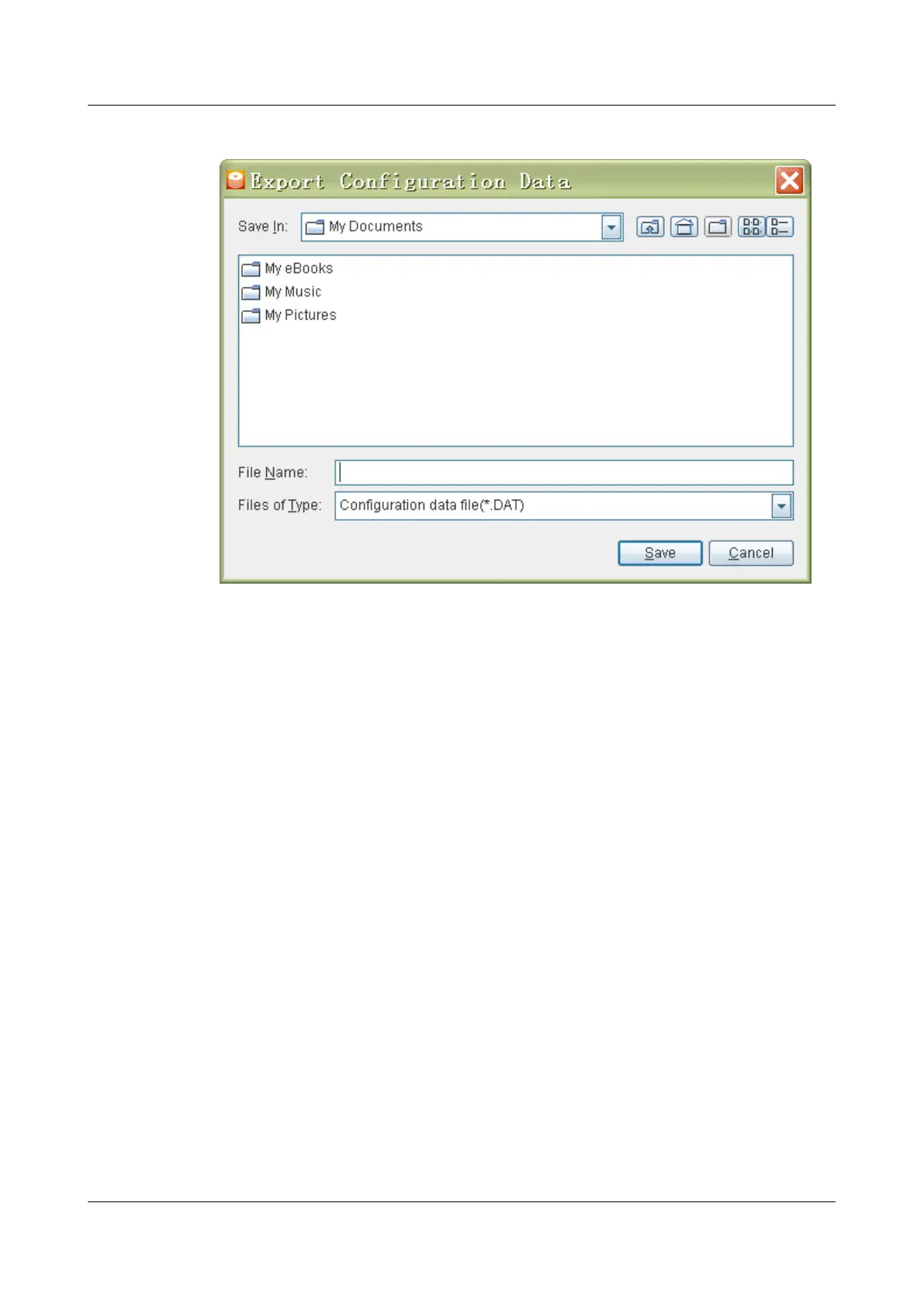

Figure 2-1 Export Configuration Data dialog box
Step 4 Select a path to save the file.
Step 5 In File Name, enter the file name. The file name contains a maximum of 200 characters.
Step 6 Click Save.
After that, the Info dialog box is displayed, saying “Operation succeeded.”.
Step 7 Click OK.
----End
2.2 Exporting Operating Data
This section describes the steps for exporting operating data.
Context
The operating data reflects the real-time running status of the system. It is used to locate a fault.
Procedure
Step 1 Log in to the ISM.
