4.8 Hall Sensor Failure

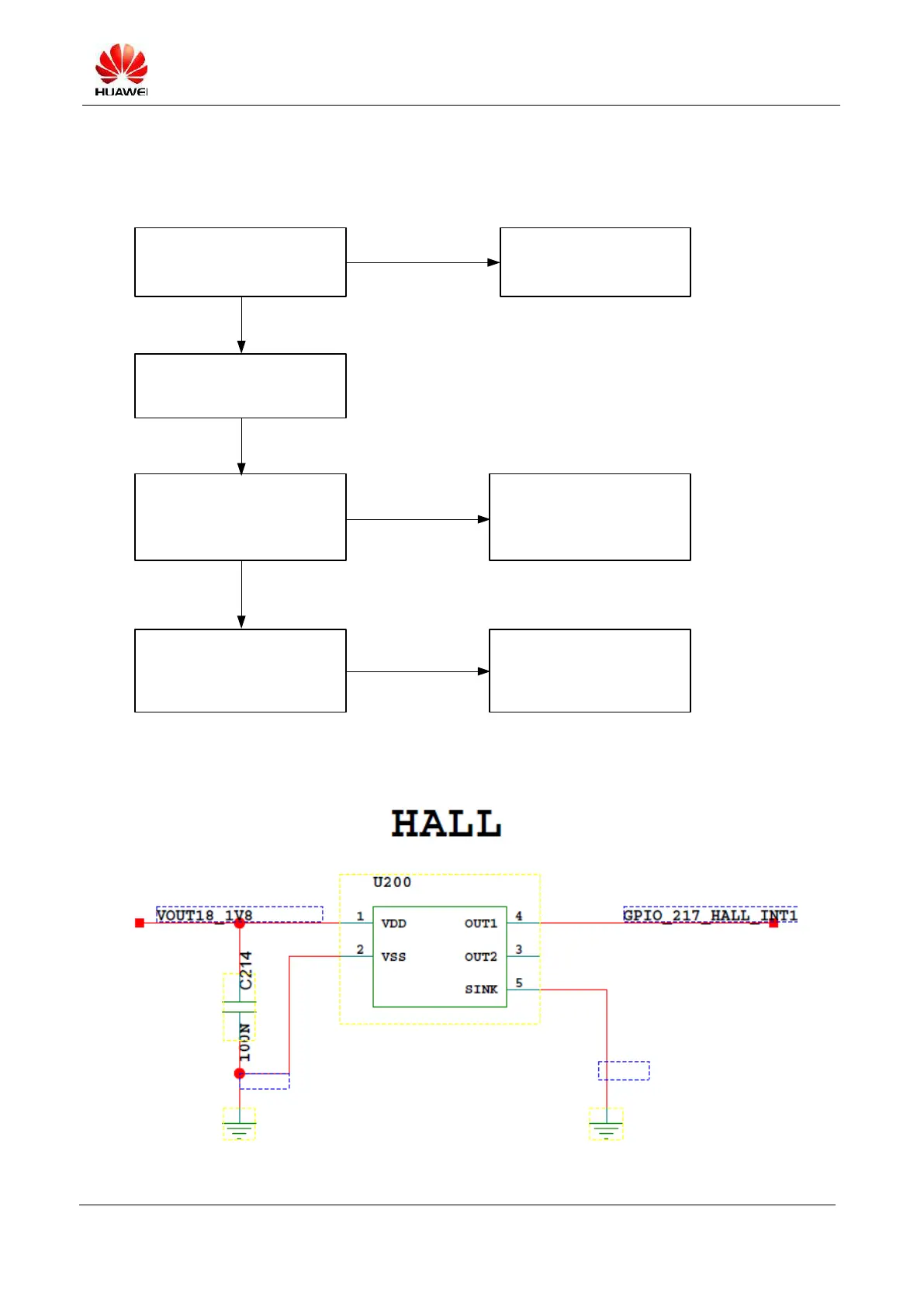

4.8.1 Maintenance Process
Perform cross verification. Is
the sub-board faulty?
Replace the antenna sub-
board
Perform cross verification. Is
the PCBA faulty
Is the power supply of
sensor_1v8 normal?
Replace U1000
Measure the interrupt signal
of the fourth pin of U200 (on
the sub-board)
Replace the SOC (U300)
Yes
No
Yes
No
Yes
4.8.2 Maintenance Principle
