Huawei RRU3201 - 6.2 Hoisting Fiber Optic Cables onto a Tower

1. After climbing up to the tower, installation engineer A secures the fixed pulley to the tower
platform support and leads the lifting sling through the fixed pulley.
2. Installation engineer C binds the RRU and mounting kits using the lifting sling and secures
the traction sling to the RRU handle.
3. Installation engineer B pulls the lifting sling downwards, and installation engineer C pulls
the traction sling outwards to protect the RRU and mounting kits from colliding with the
tower.
4. Installation engineer A catches the RRU and mounting kits and then unties the sling.
NOTE
The procedure for hoisting the RRU and mounting kits onto the tower is for your reference only.
----End
6.2 Hoisting Fiber Optic Cables onto a Tower
This section describes the procedure for hoisting fiber optic cables onto a tower and the
precautions that must be taken.
Context
Cabling requirements for power cables are met. For details, see 8.1 Cabling Requirements.
Procedure
Step 1 Lead one sling through the stretch sling of the fiber optic cables and use the sling as a lifting
sling, and use the other sling as a traction sling to secure the cables 4 m (13.12 ft.) away from
the lifting sling, as shown in Figure 6-5.

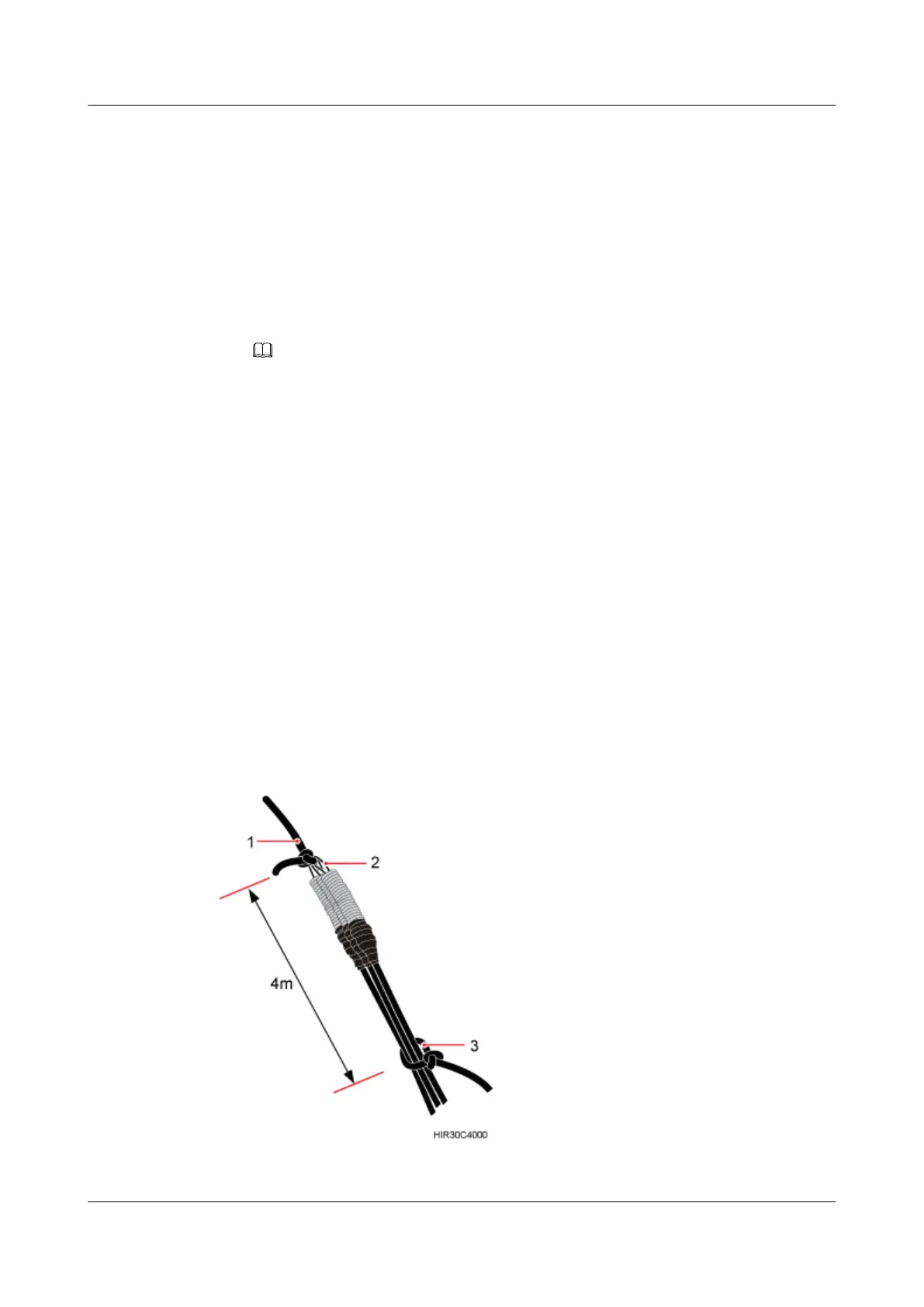

Figure 6-5 Binding fiber optic cables
(1) Lifting sling
(2) Stretch sling (3) Traction sling
