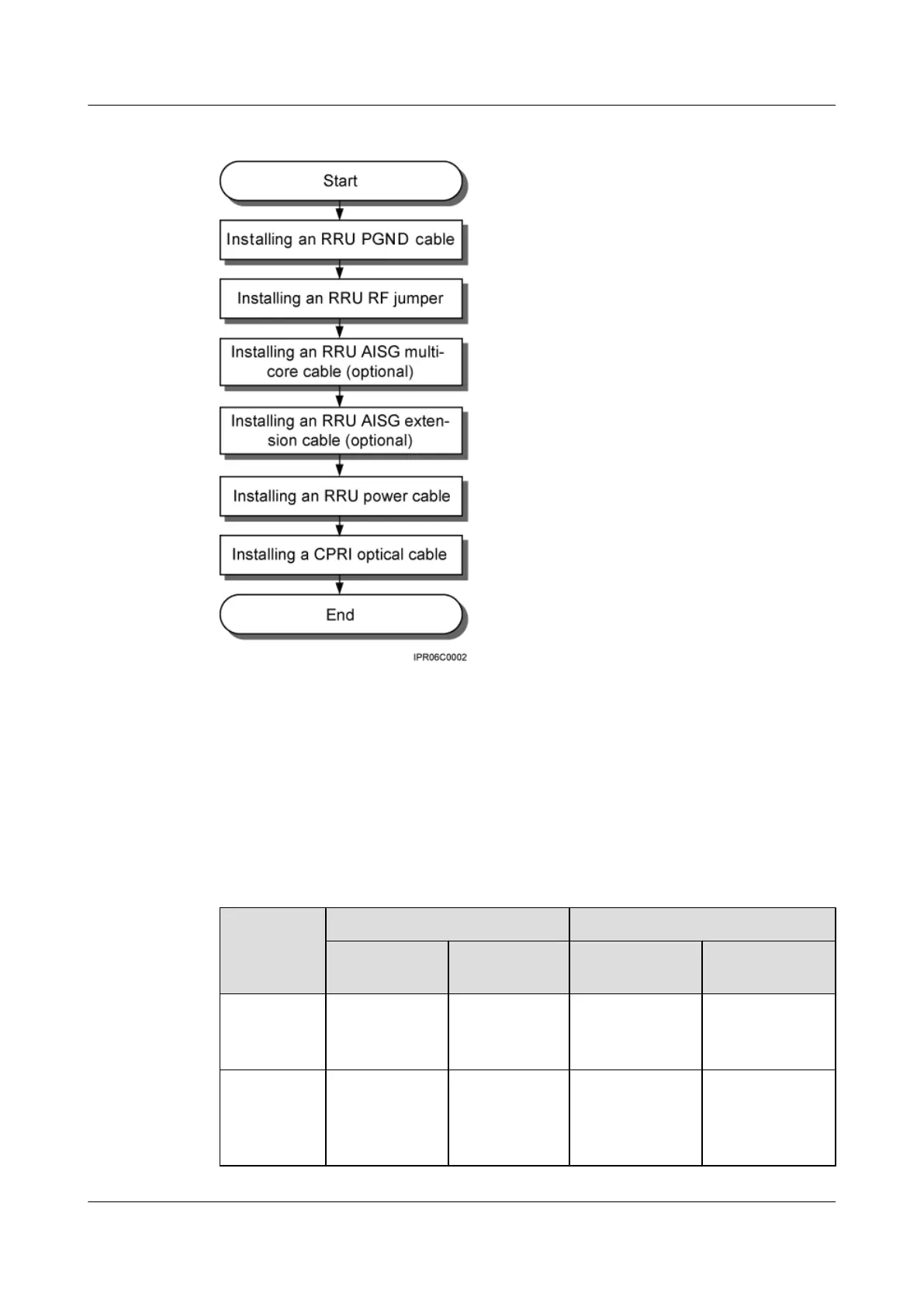

Figure 8-5 Process of installing RRU cables
8.4 RRU Cable List
This section describes RRU cable connections.
Table 8-1 lists RRU cables.
Table 8-1 RRU cables
Cable
One End The Other End
Connector Installation
Position
Connector Installation
Position
RRU PGND
Cable
OT terminal
(M6, 16 mm
2
[0.025 in.
2
])
Ground
terminal on the
RRU
OT terminal (M8,
16 mm
2
[0.025 in.
2
])
Ground terminal
on the ground bar
RRU Power
Cable
OT terminal
(M4, 3.3 mm
2
[0.005 in.
2
]),
complying with
NEG(-) and
RTN(+) ports
on the RRU
Tool-less female
connector
(pressfit type)
One of RRU0 to
RRU5 ports on
the EPU or EPS
RRU3201
