8 Installing the RRU
Issue Draft B (2018-05-15)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
82

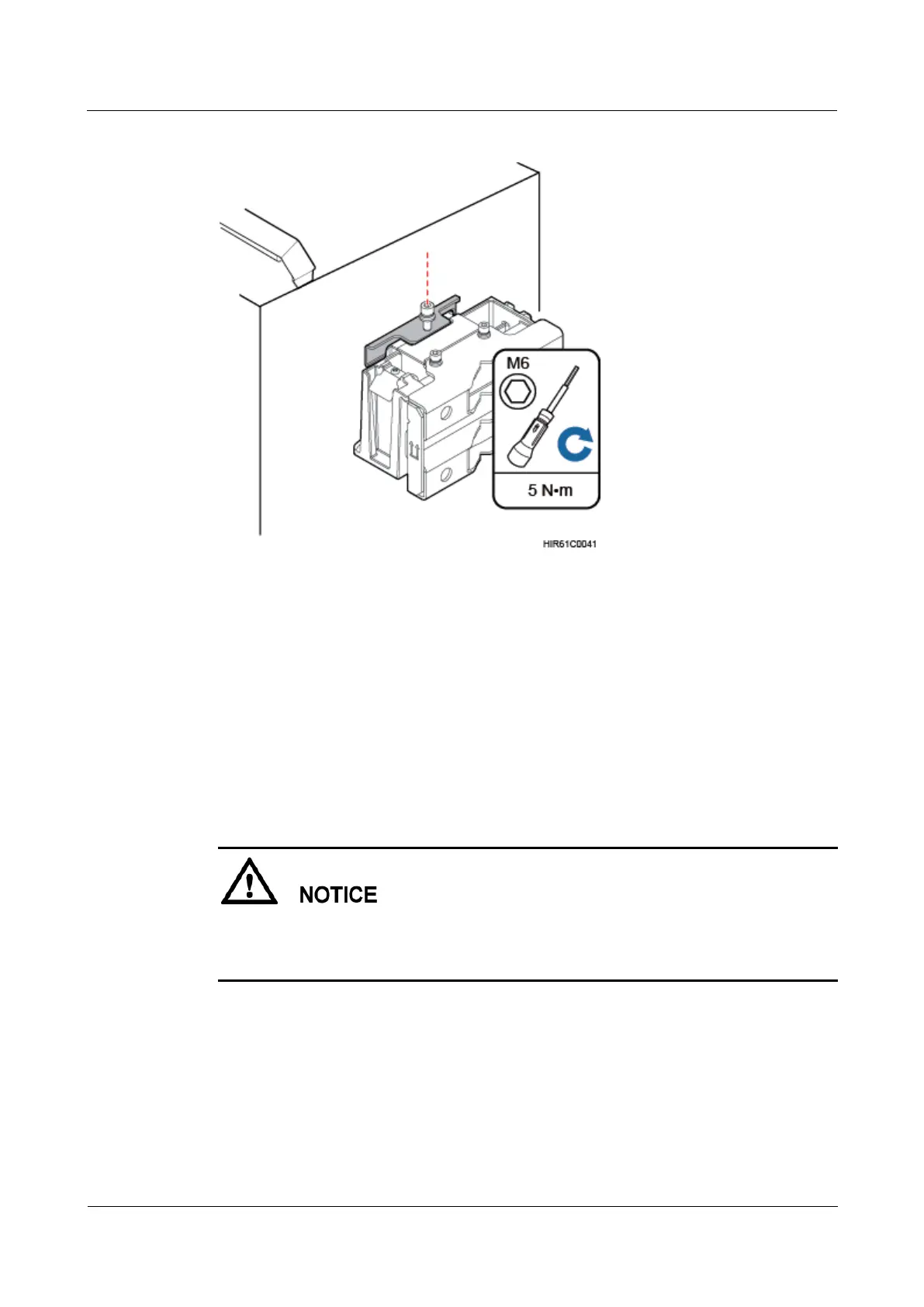

Figure 8-43 Securing the captive screw into the connection hole
----End
8.6 Installing an RRU on an IFS06
This section describes the process and precautions for installing an RRU on an IFS06.
Prerequisites
The hoist clamp on the main bracket is secured properly.

Do not stand an RRU upright because the RF ports cannot support the weight of the RRU.

Place a foam pad or cardboard under an RRU to protect the RRU housing from damage
during the installation.
Context

The upper and lower adjustable beams on an IFS06 can be moved up and down to fit for
heights of RRUs.

RRUs can be installed on an IFS06 when the ambient temperature is higher than or equal
to the lowest operating temperature of the RRUs and at least 5°C (41°F) lower than the
highest working temperature of the RRU. In this scenario, the IFS06 supports at least
three RRUs. The IFS06 supports a maximum of six RRUs when the ambient temperature
