Huawei S1720-10GW2P User Manual

Item Description
Noise under
normal
temperature
(27°C, sound
power)
Noise-free (no fans)
Relative humidity 5% to 95%, noncondensing
Operating
altitude
0-5000 m (0-16404 ft.)
Certication ● EMC certication
● Safety certication
● Manufacturing certication
Part number ● S1720-28GWR-4X: 98010587
● S1720-28GWR-4X-E: 98010745
5.2.10 S1720-28GWR-PWR-4P/S1720-28GWR-PWR-4P-E
This section uses S1720-28GWR-PWR-4P as an example. S1720-28GWR-PWR-4P-E
has the same hardware structure as S1720-28GWR-PWR-4P.
Appearance

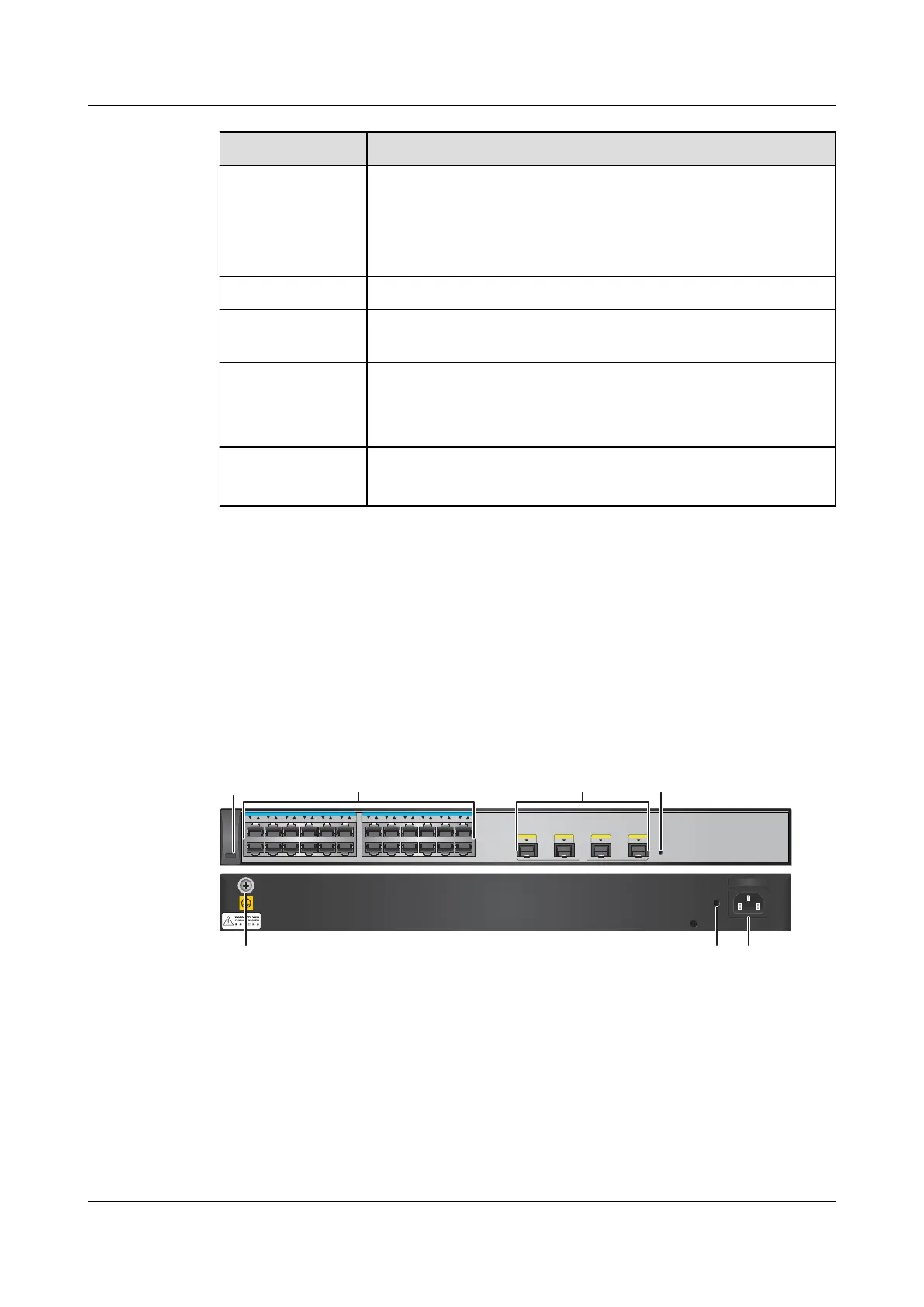

Figure 5-19 shows the appearance of an S1720-28GWR-PWR-4P.
Figure 5-19 Appearance of an S1720-28GWR-PWR-4P
S1720-28GWR-PWR-4P
1G
RST
25 26 27
28
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
MODE
HUAWEI
PoE
SPED
STAT
SYS
PWR
~100-240V;50/60Hz;7 A
2 3
4
6 75
1
S1700 Managed Series Ethernet Switches
Product Description
5 Hardware Structure
Issue 18 (2020-10-23) Copyright © Huawei Technologies Co., Ltd. 72
