Optical Modules
The optical modules supported by S1720-28GFR-4TP are the same as those
supported by S1720-20GFR-4TP. For details, see the optical modules supported by
S1720-20GFR-4TP.
5.2.3 S1720-10GW-2P/S1720-10GW-2P-E
This section uses S1720-10GW-2P as an example. S1720-10GW-2P-E has the same
hardware structure as S1720-10GW-2P.
Appearance
Figure 5-11 shows the appearance of an S1720-10GW-2P.

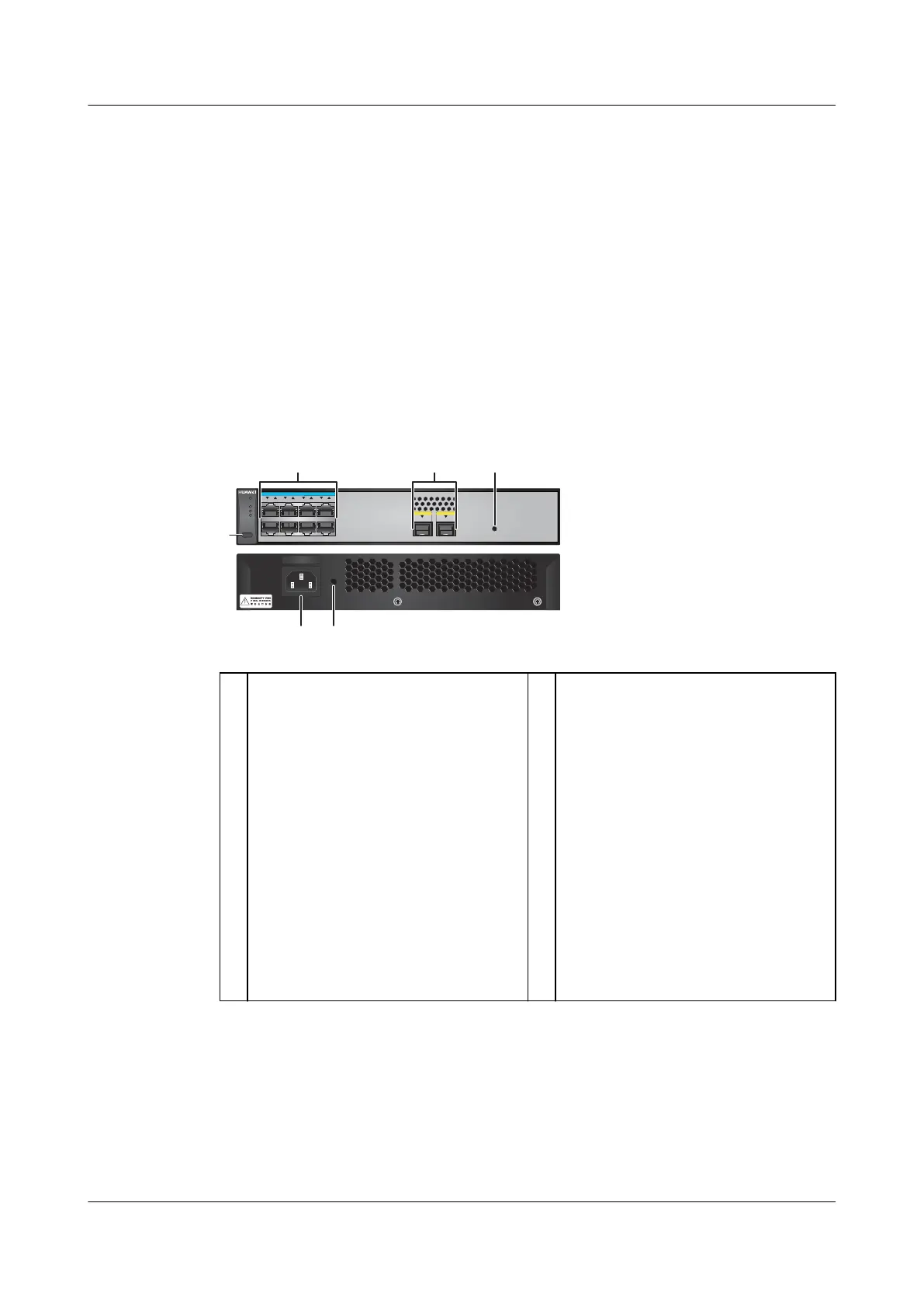

Figure 5-11 Appearance of an S1720-10GW-2P
MODE
SPED
STAT
SYS
PWR
12 34 56 78
S1720-10GW-2P
9 10
RST
2 4
~100-240V;50/60Hz;0.8A
5 6
3
1
1 Mode switching button
NOTE
Press this button to change the mode
of service port indicators:
When you press this button once, the
service port indicators change to the
speed mode and show the speed of
each service port.
When you press this button again, the
service port indicators restore to the
default mode and show the connection
status of each service port.
If you do not press this button within
45 seconds, the service port indicators
restore to the default mode. In this
case, the SPED indicator is
o.
2 Eight 10/100/1000BASE-T ports
S1700 Managed Series Ethernet Switches
Product Description
5 Hardware Structure
Issue 18 (2020-10-23) Copyright © Huawei Technologies Co., Ltd. 45
