5.1.2 S1700-52FR-2T2P-AC
Appearance

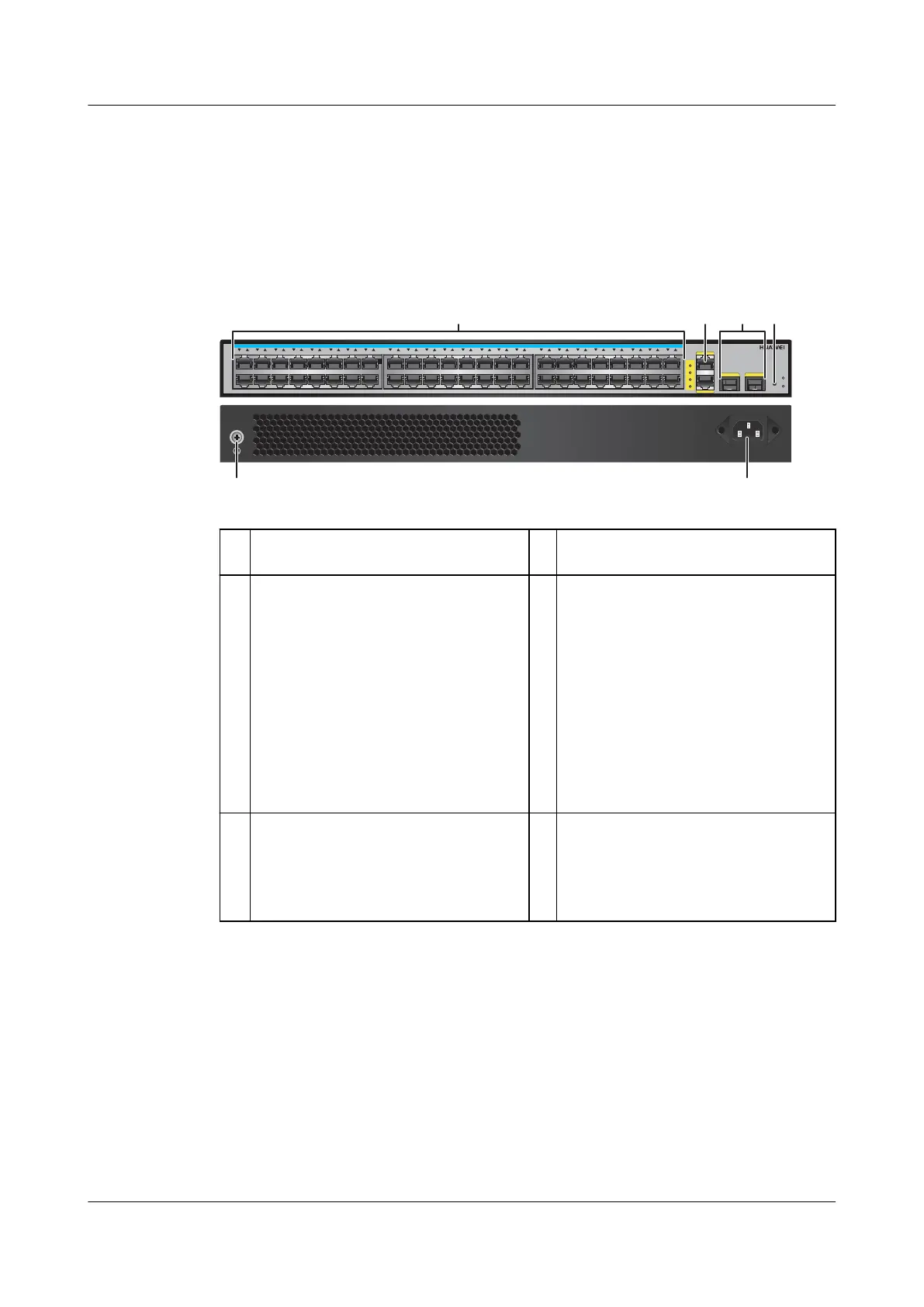

Figure 5-3 shows the appearance of an S1700-52FR-2T2P-AC.
Figure 5-3 Appearance of an S1700-52FR-2T2P-AC
S1700-52FR-2T2P-AC
GE 3 GE 4
RESET
PWR
RUN
GE 2
GE 1
GE 1
GE 2
GE 3
GE 4
~100-240V;50/60Hz;0.7A
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
1342
5
6
1 Forty-eight 10/100BASE-TX ports 2 Two 10/100/1000BASE-T ports
3 Two 1000BASE-X ports 4 Reset button
NOTICE
To restore the factory settings of a
switch, hold down the Reset button for
at least 6 seconds. This operation will
not reset the switch.
To reset a switch, press the Reset
button.
Resetting the switch will cause service
interruption. Exercise caution when you
press the Reset button.
5 Ground screw
NOTE
No ground cable is delivered with the
switch.
6
AC power socket
NOTE
It is used with an AC power cable.
Indicators
The indicator description for S1700-52FR-2T2P-AC is the same as that for
S1700-28FR-2T2P-AC. For details, see the indicator description for
S1700-28FR-2T2P-AC.
Power Supply
Conguration
The S1700-52FR-2T2P-AC has a built-in power module and does not support
pluggable power modules.
S1700 Managed Series Ethernet Switches
Product Description
5 Hardware Structure
Issue 18 (2020-10-23) Copyright © Huawei Technologies Co., Ltd. 23
