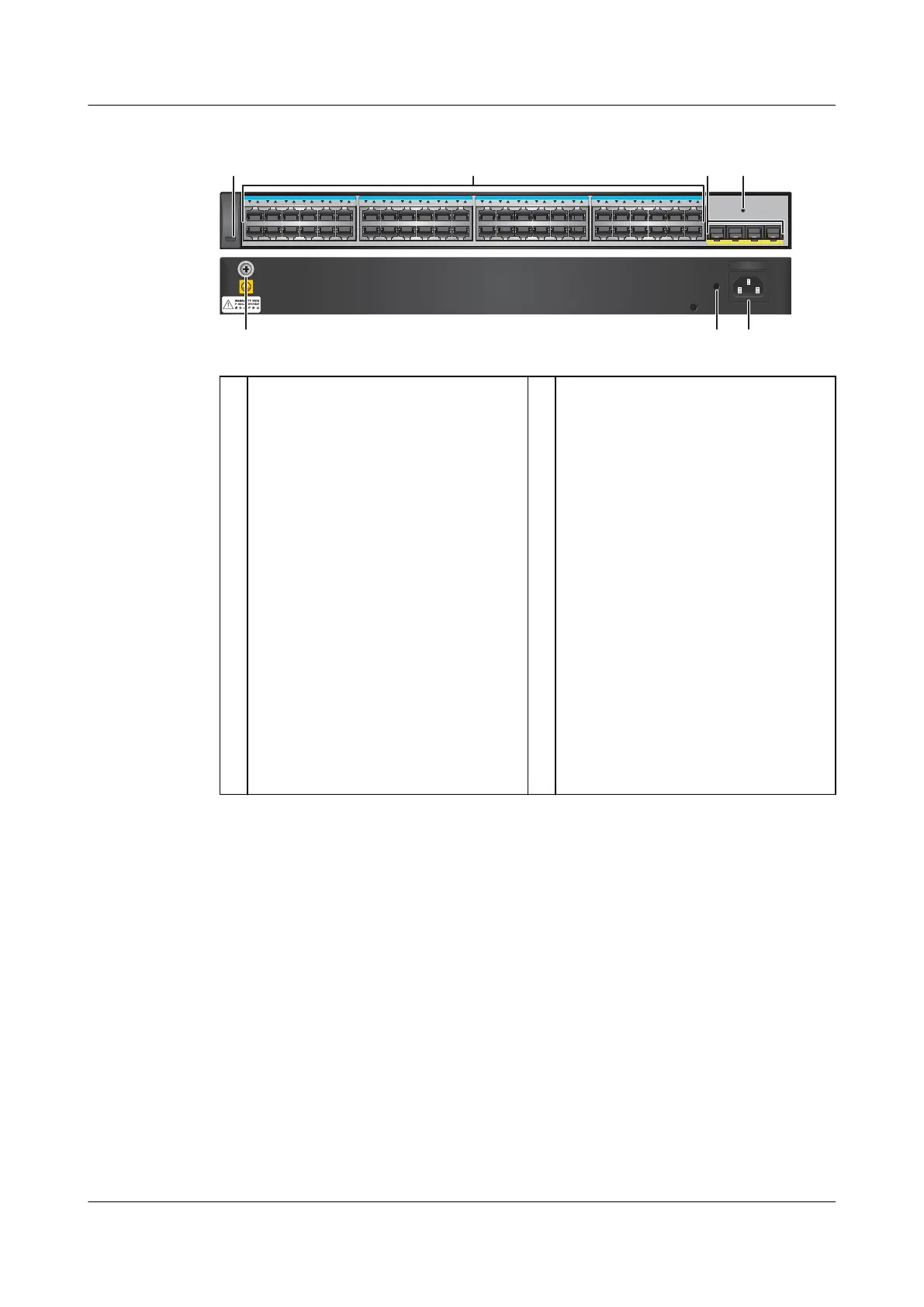

Figure 5-28 Appearance of an S1720-52GWR-PWR-4X
~100-240V;50/60Hz;7 A
S1720-52GWR-PWR-4X
1 2 10G/1G 3
4
MODE
HUAWEI
SPED
STAT
SYS
PWR
PoE
1 2 3 4 5 6 7 8 9 10 11 12
13
14
15
16 17 18 19 20 21 22 23 24
25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
RST
6 5 7
2
34
1
1 Mode switching button
NOTE
Press this button to change the mode
of service port indicators:
When you press this button once, the
service port indicators change to the
speed mode and show the speed of
each service port.
When you press this button a second
time, the service port indicators change
to the PoE mode and show the PoE
status of each service port.
When you press this button a third
time, the service port indicators restore
to the default mode and show the
connection status of each service port.
If you do not press this button within
45 seconds, the service port indicators
restore to the default mode. In this
case, the SPED and PoE indicators are
o.
2 Forty-eight PoE+ 10/100/1000BASE-
T ports
S1700 Managed Series Ethernet Switches
Product Description
5 Hardware Structure
Issue 18 (2020-10-23) Copyright © Huawei Technologies Co., Ltd. 109
