Appearance

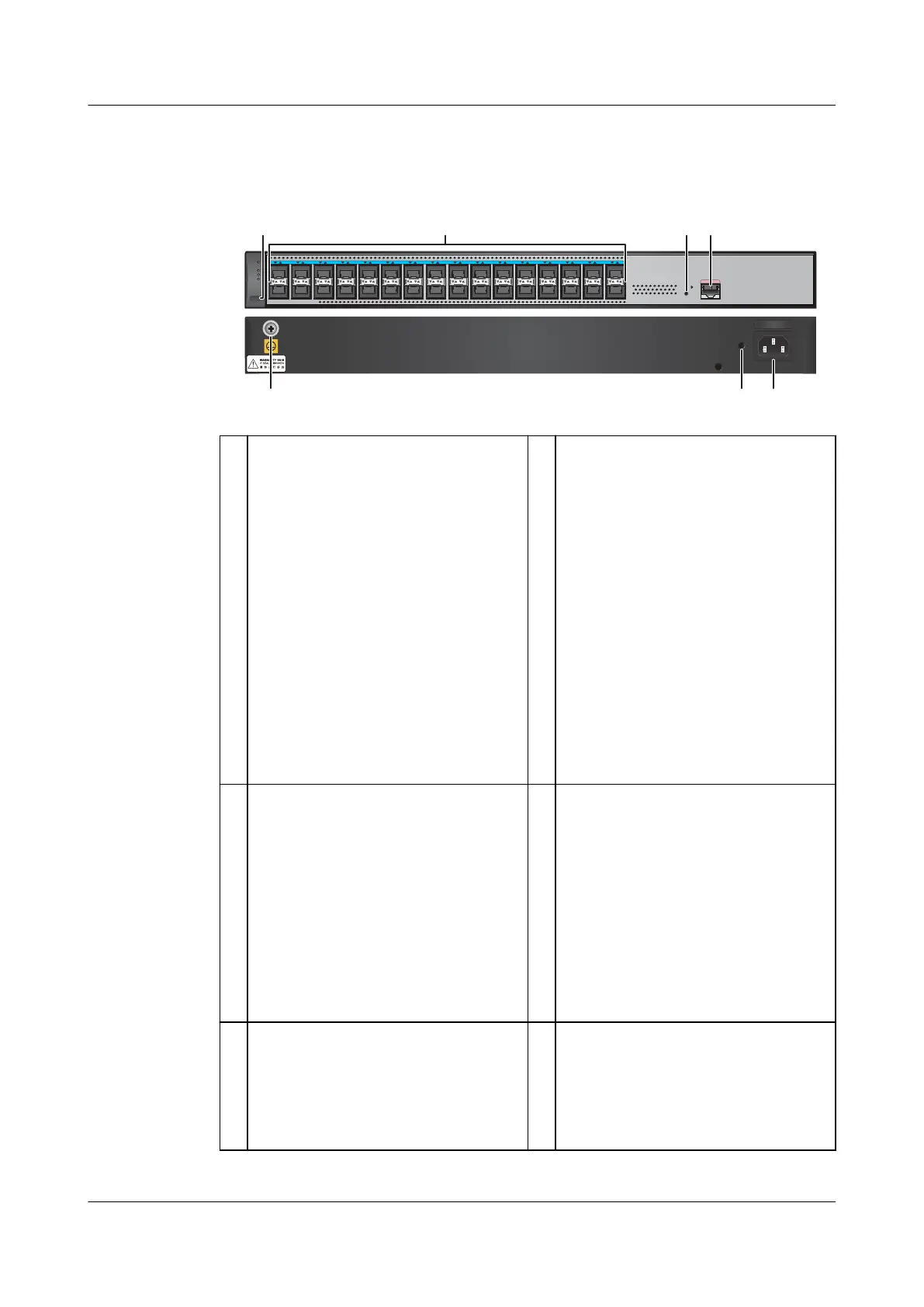

Figure 5-32 Appearance of an S1720X-32XWR
S1720X-32XWR
ETH
43
RST
~100-240V;50/60Hz; 3A
65 7
MODE
HUAWEI
SPED
STAT
SYS
PWR
1
12 34567891011 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
2
1
Mode switching button
NOTE
Press this button to change the mode
of service port indicators:
When you press this button once, the
service port indicators change to the
speed mode and show the speed of
each service port.
When you press this button again, the
service port indicators restore to the
default mode and show the connection
status of each service port.
If you do not press this button within
45 seconds, the service port indicators
restore to the default mode. In this
case, the SPED indicator is
o.
2 Thirty-two 10GE SFP+ ports
Applicable modules and cables:
GE optical module
GE-CWDM optical module
GE-DWDM optical module
GE copper module (100M/
1000M auto-sensing)
10GE SFP+ optical module
10GE-CWDM optical module
10GE-DWDM optical module
1 m, 3 m, 5 m, and 10 m SFP+
high-speed copper cables
3 m and 10 m SFP+ AOC cables
3 Reset button
NOTICE
To restore the factory settings of a
switch, hold down the Reset button for
at least 6 seconds. This operation will
not reset the switch.
To reset a switch, press the Reset
button.
Resetting the switch will cause service
interruption. Exercise caution when you
press the Reset button.
4 ETH management port
5 Ground screw
NOTE
The ground cable is not delivered with
the switch.
6 Jack reserved for AC power cable
locking strap
NOTE
The AC power cable locking strap is not
delivered with the switch.
S1700 Managed Series Ethernet Switches
Product Description
5 Hardware Structure
Issue 18 (2020-10-23) Copyright © Huawei Technologies Co., Ltd. 124
