Appearance

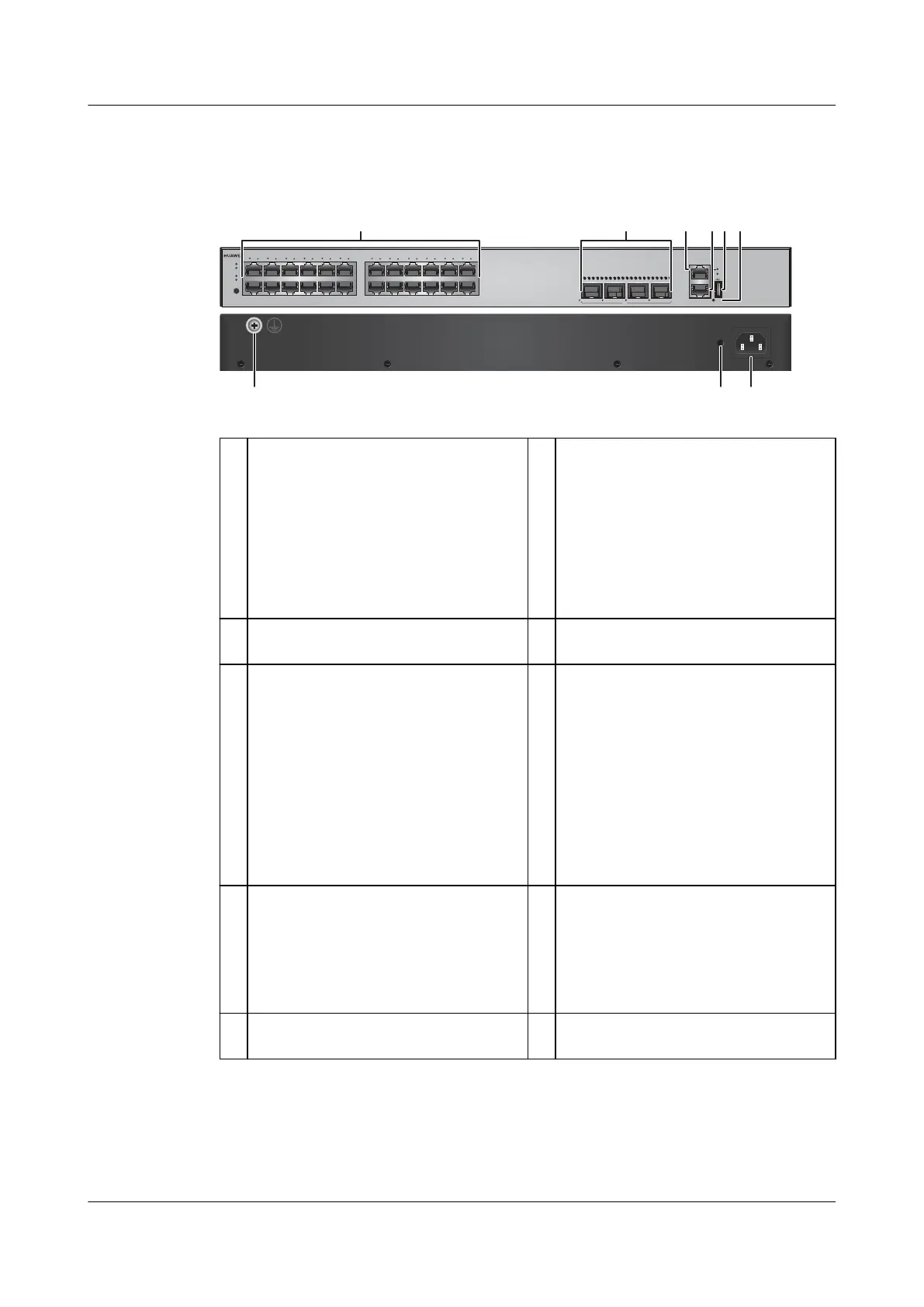

Figure 5-37 Appearance of an S1730S-S24P4S-MA
CloudEngine S1730S-S24P4S-MA
PWR
SYS
SPEED
PoE
MODE
12 34 56 78 910 11 12
13 14
15
16
17 18
19
20
21
22
23
24
25 26 27
GE
ETH
CONSOLE
28
L/A
USB
RST
789
1 2
463 5
1 Twenty-four PoE
+ 10/100/1000BASE-T ports
2 Four 1000BASE-X ports
Applicable modules and cables:
● GE optical module
● GE-CWDM optical module
● GE-DWDM optical module
● GE copper transceiver module
3 One console port 4 One ETH management port
5 One USB port 6 One RST button
NOTICE
If you hold down the Reset button for
at least 6 seconds, the switch restores
factory settings and then is reset.
If you press the Reset button, the
switch is reset.
Resetting the switch will cause service
interruption. Exercise caution when you
press the Reset button.
7 Ground screw 8 Jack reserved for AC power cable
locking strap
NOTE
The AC power cable locking strap is not
delivered with the switch.
9 AC power socket - -
Port Description
10/100/1000BASE-T port
S1700 Managed Series Ethernet Switches
Product Description
5 Hardware Structure
Issue 18 (2020-10-23) Copyright © Huawei Technologies Co., Ltd. 148
