Appearance

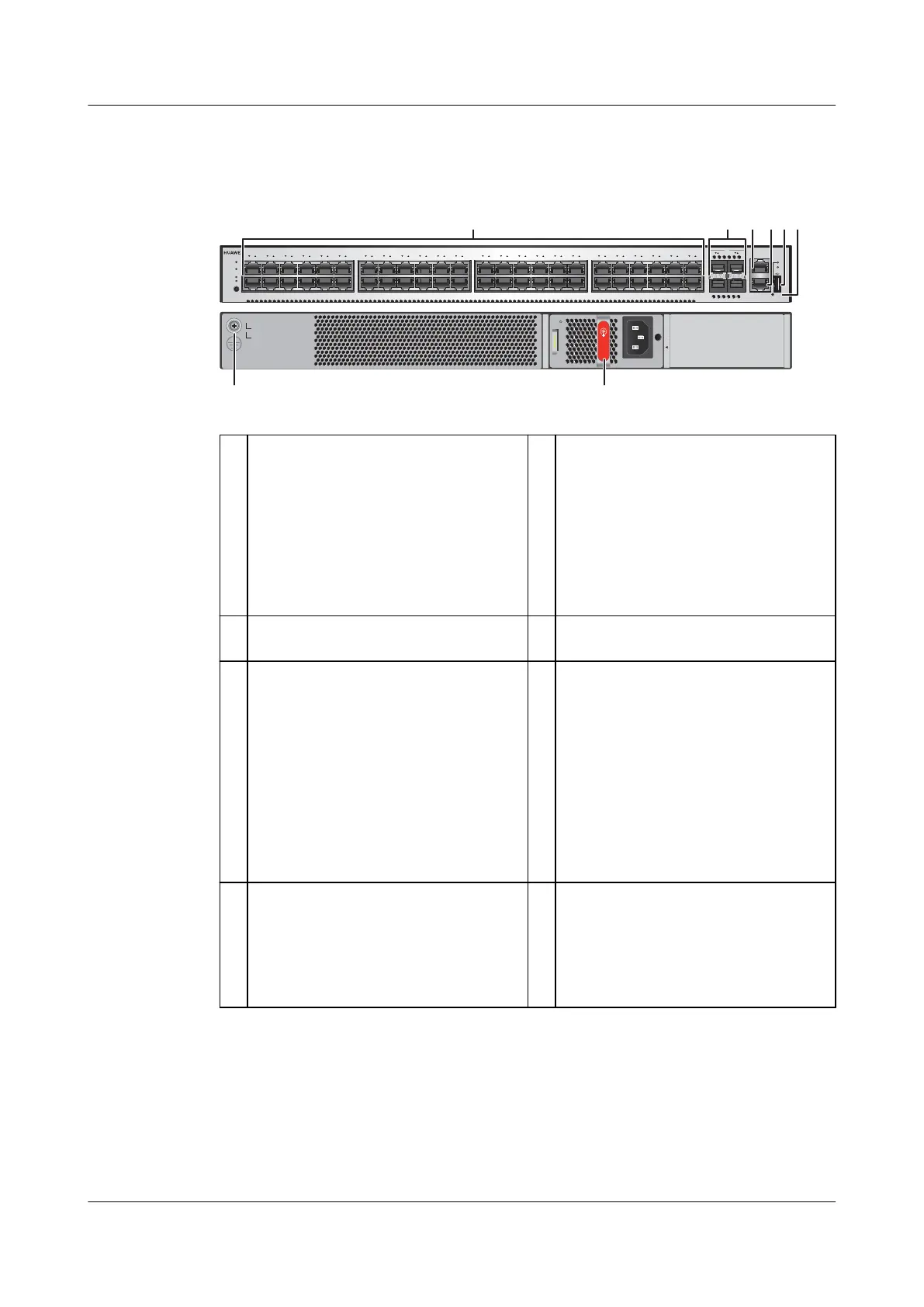

Figure 5-40 Appearance of an S1730S-S48P4S-A
CloudEngine S1730S-S48P4S
PWR
SYS
SPEED
PoE
MODE
12 34 56 78 910 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
ETH
CONSOLE
L/A
USB
RST
12
463 5
STAT
PWR
PAC1000S56-CB
AIR OUT
PWR
7 8
GE
49 50 51 52
1 Forty-eight 10/100/1000BASE-T PoE
+ ports
2 Four 1000BASE-X ports
Applicable modules and cables:
● GE optical module
● GE-CWDM optical module
● GE-DWDM optical module
● GE copper transceiver module
3 One console port 4 One ETH management port
5 One USB port 6 One RST button
NOTICE
If you hold down the Reset button for
at least 6 seconds, the switch restores
factory settings and then is reset.
If you press the Reset button, the
switch is reset.
Resetting the switch will cause service
interruption. Exercise caution when you
press the Reset button.
7 Ground screw 8 Power module slot
NOTE
Supported power module: 6.1 1000 W
AC PoE Power Module (PAC1000S56-
CB)
Port Description
10/100/1000BASE-T port
A 10/100/1000BASE-T Ethernet electrical port sends and receives service data at
10/100/1000 Mbit/s. Table 5-71 describes the attributes of a 10/100/1000BASE-T
Ethernet electrical port.
S1700 Managed Series Ethernet Switches
Product Description
5 Hardware Structure
Issue 18 (2020-10-23) Copyright © Huawei Technologies Co., Ltd. 166
