Huawei S6700 Series

S6720-54C-EI-48S-AC

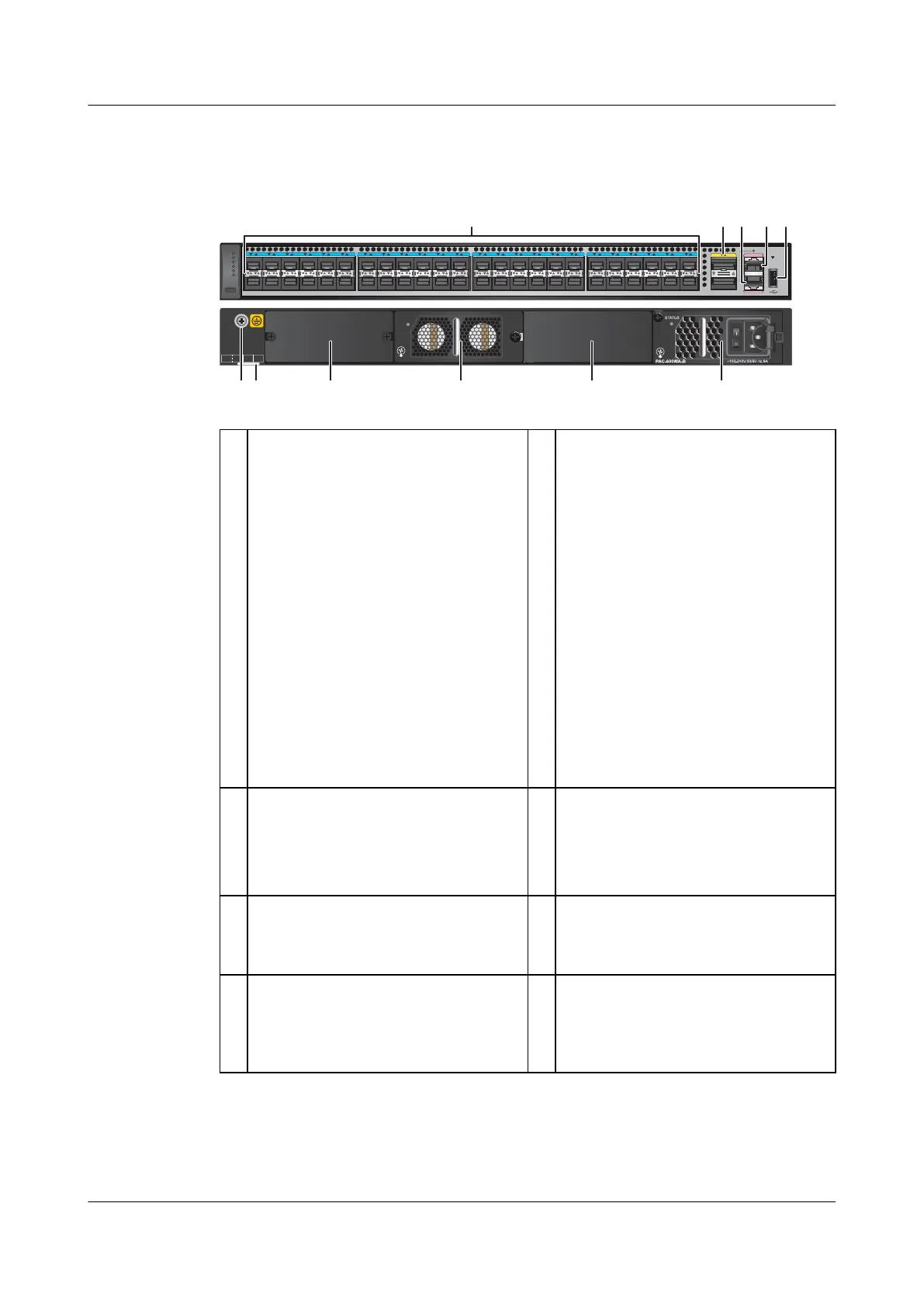

Figure 2-9 Appearance of the S6720-54C-EI-48S-AC
S6720-54C-EI-48S
12
123
4
567891011 12
13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
CONSOLE
ETH
MODE
HUAWEI
STCK
SPED
STAT
SYS
PWR1
PWR2
CARD FAN
PWR2 PWR1
STATUS
FAN-060B-B
1234
67
8 9 10 11
5
1 Forty-eight 10GE SFP+ Ethernet
optical ports
Applicable modules and cables:
l GE optical module
l GE-CWDM optical module
l GE-DWDM optical module
l GE copper module (only work at
1000 Mbit/s)
l 10GE SFP+ optical module
(OSXD22N00 and SFP-10G-ZR not
supported)
l 1 m, 3 m, 5 m, 10 m SFP+ high-speed
copper cables
l 3 m, 10 m AOC cables
2
Two 40GE QSFP+ optical ports
Applicable modules and cables:
l QSFP+ optical module
l 1 m, 3 m, 5 m QSFP+ high-speed
copper cables (QSFP+ to QSFP+)
l 1 m, 3 m, 5 m QSFP+ high-speed
copper cables (QSFP+ to 4*SFP+)
NOTE
A 40GE QSFP+ optical port can be split into
four 10GE ports.
3
One ETH management port 4 One console port
NOTE
It is used with a console cable. The console
cable is not delivered with the switch and needs
to be separately purchased if needed.
5 One USB port 6 Ground screw
NOTE
It is used with a ground cable.
7 Equipment serial number (ESN) label
NOTE
You can draw it out to view the ESN and MAC
address of the switch.
8 Extended card slot
Applicable card:
l ES5D21Q04Q01
