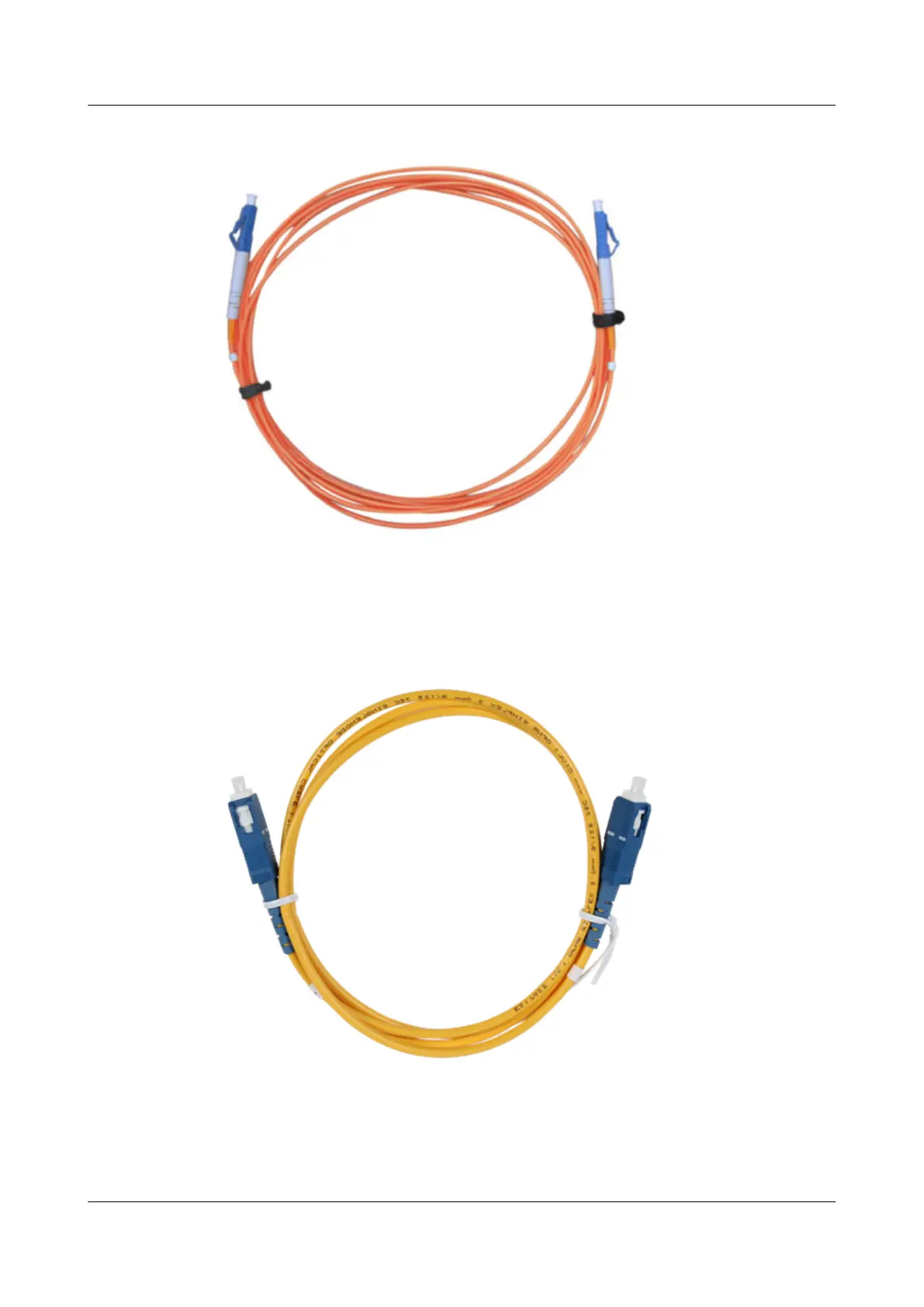

Figure 6-5 Appearance of a multimode LC/PC fiber jumper
Figure 6-6 shows the appearance of a single-mode SC/PC fiber jumper.
Figure 6-6 Appearance of a single-mode SC/PC fiber jumper
Figure 6-7 shows the appearance of an MPO-MPO fiber jumper.
